Option for OMC-F series

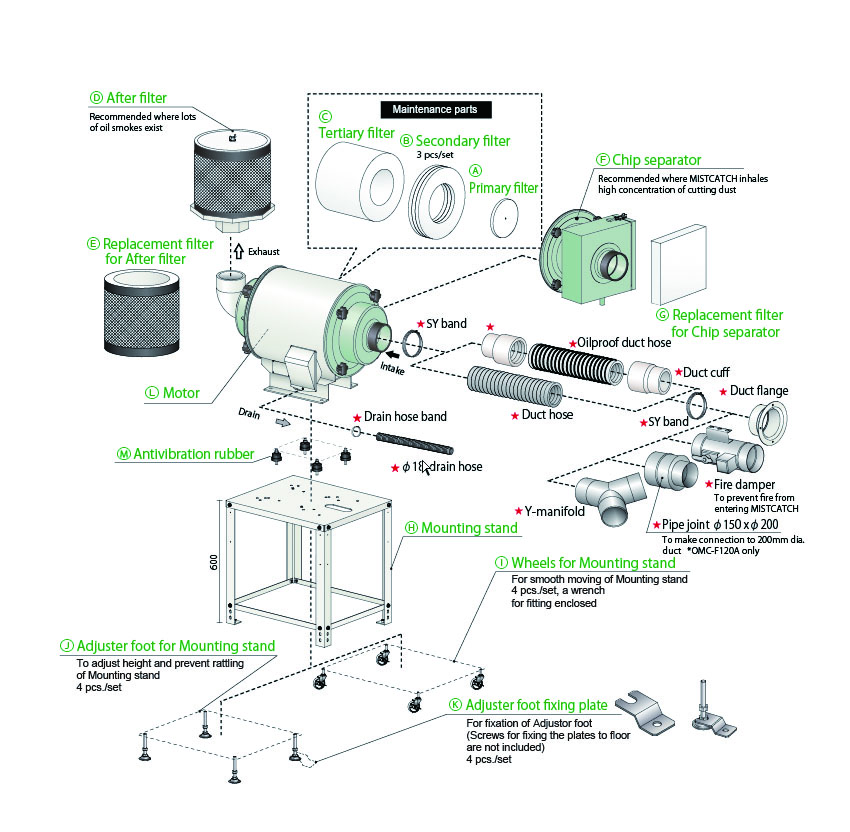

Optional accessories and maintenance parts for Filter type OMC-F series
Options list
| Part name | Part number | |||
| OMC-F105A | OMC-F110A | OMC-F120A | ||
| A | Primary filter | OMC-F105-F10 | OMC-F110-F10 | OMC-F120-F10 |
| B | Secondary filter | OMC-F105-F20 | OMC-F110-F20 | OMC-F120-F20 |
| C | Tertiary filter | OMC-F105-F30 | OMC-F110-F30 | OMC-F120-F30 |
| D | After Filter | OMC-F105-F40-2 | OMC-F110-F40-2 | OMC-F120-F40-2 |
| E | Replacement filter for After Filter | OMC-AF-335L | OMC-AF-500L | |
| F | Chip Separator | OMC-F105A-CS | OMC-F110A-CS | OMC-F120A-CS |
| G | Replacement filter for Swarf Separator | OMC-F105-CS-F00 | OMC-F110-CS-F00 | OMC-F120-CS-F00 |
| H | Mounting stand | OMC-PDS01 | ||
| I | Wheels for Mounting stand | OMC-PDS01-CAS | ||
| J | Adjuster foot for Mounting stand | OMC-PDS01-AJF | ||
| K | Adjuster foot fixing plate | OMC-PDS01-AJF-ST | ||
| L | Motor | OMC-F105-M40-TF | OMC-F110-M75-TF | OMC-F120-M150-TF |
| M | Antivibration rubber | OMC-F1-BG01 | ||
For the items marked with★, see Common parts.
Dimensional drawing

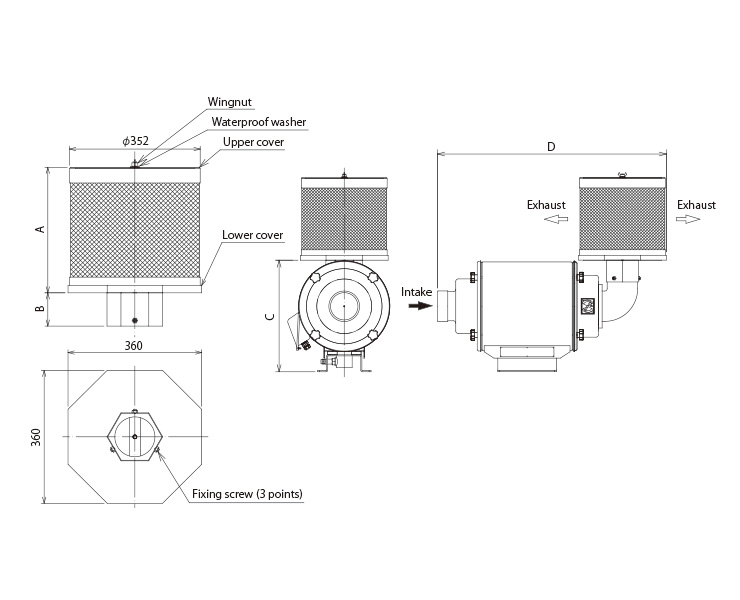

A After Filter
| Part number | A | B | C | D |
| OMC-F105-F40-2 | 340 | 100 | 414 | 813 |
| OMC-F110-F40-2 | 340 | 90 | 460 | 938 |
| OMC-F120-F40-2 | 505.2 | 120 | 570 | 1088 |

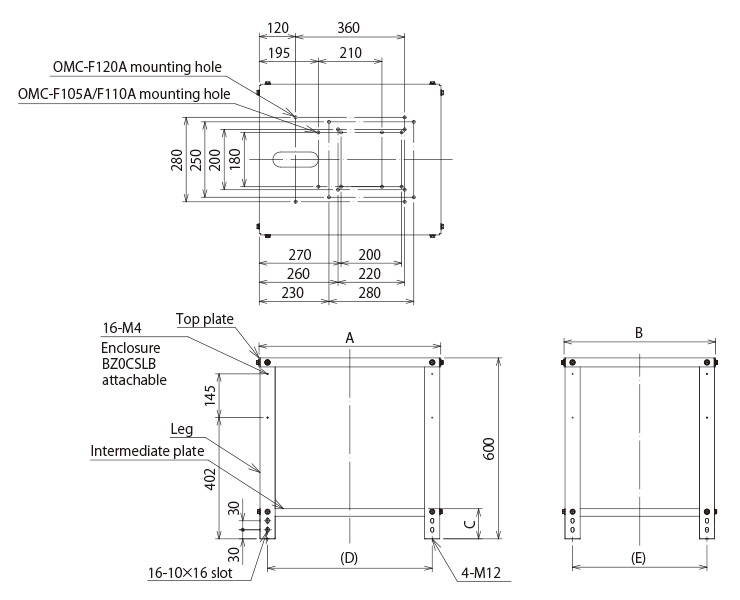

H Mounting stand
| Part number | A | B | C | D | E |
| OMC-PDS01 | 600 | 500 | 100 | 544 | 444 |
| OMC-PDS02 | 850 | 640 | 105 | 795 | 585 |

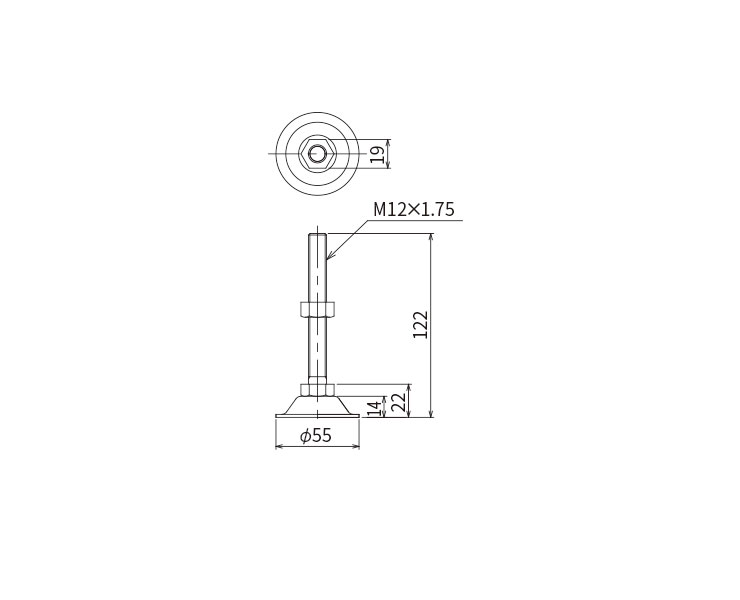

J Adjuster foot for Mounting stand

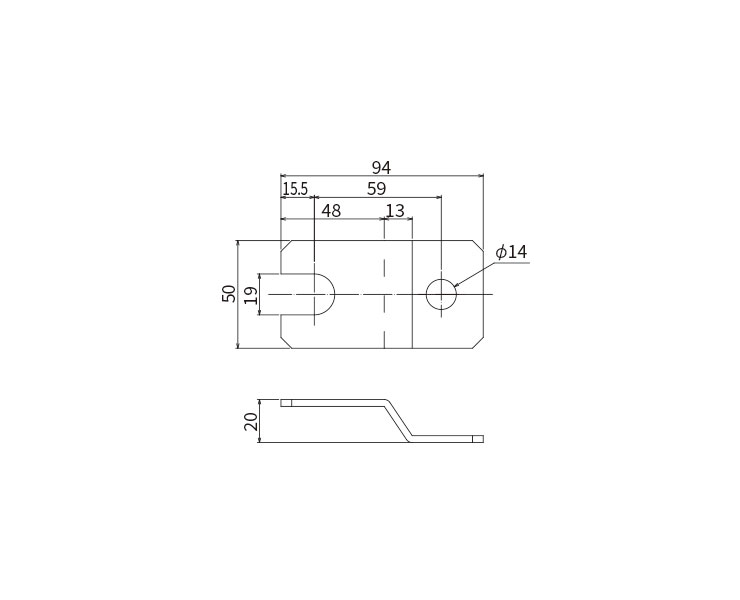

K Adjuster foot fixing plate

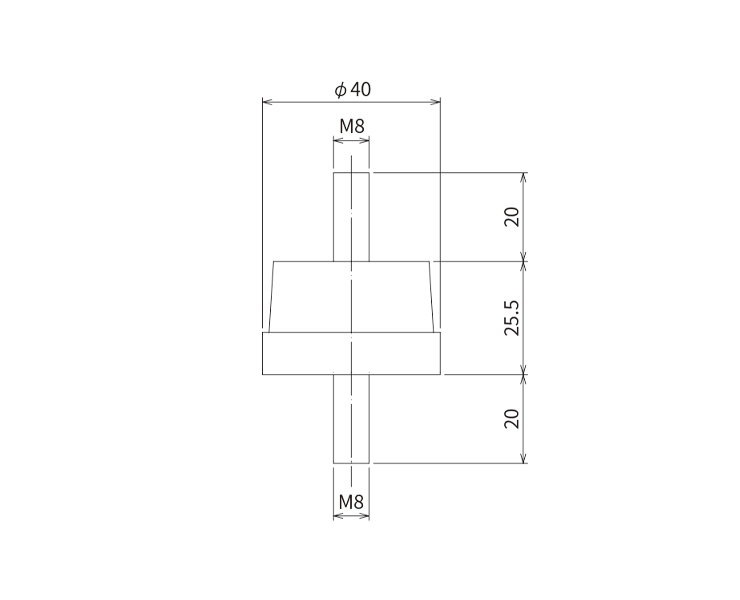

M Antivibration rubber
