Option for OMC-E series
For OMC-E series

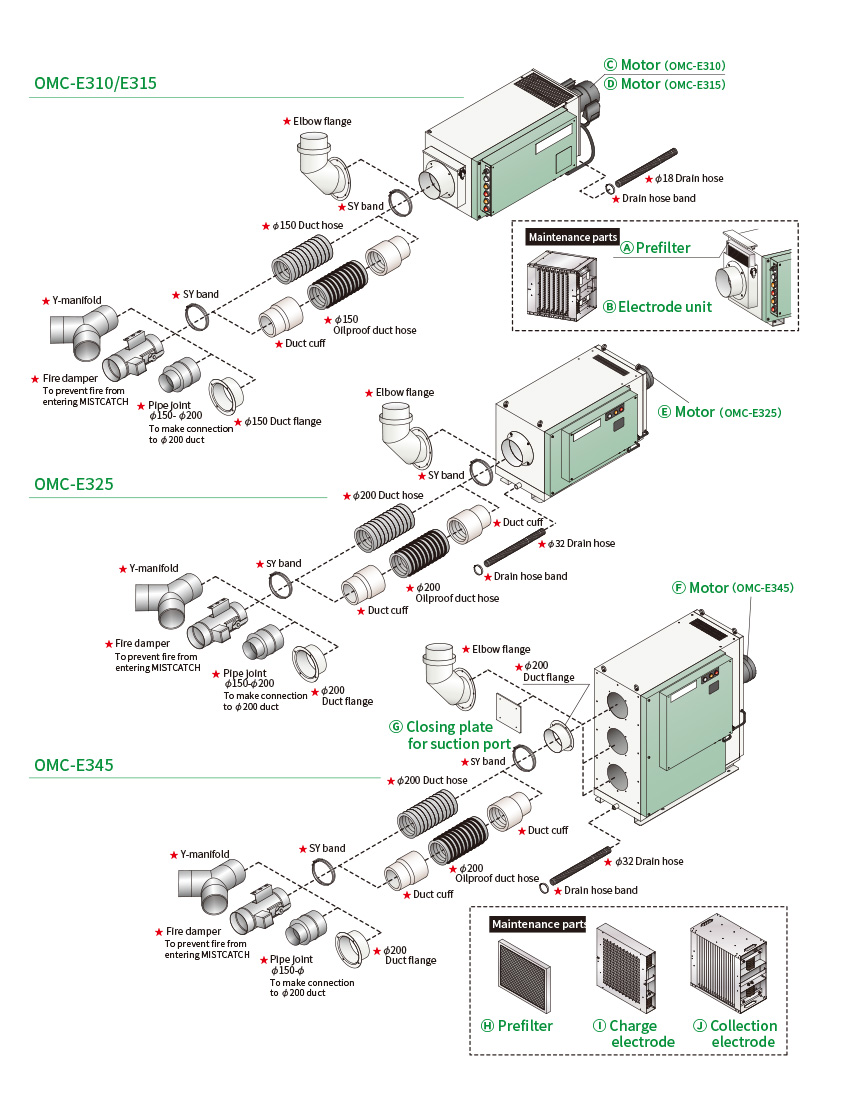

Option list
Part name | Part number | |
A | Pre-filter | OMC-E043-1 |
B | Electrode unit | OMC-E026-1 |
C | Motor for OMC-E310 | OMC-M01 |
D | Motor for OMC-E315 | OMC-N205-M40 |
E | Motor for OMC-E325 | OMC-N210-M75 |
F | Motor for OMC-E345 | OMC-N215-M150 |

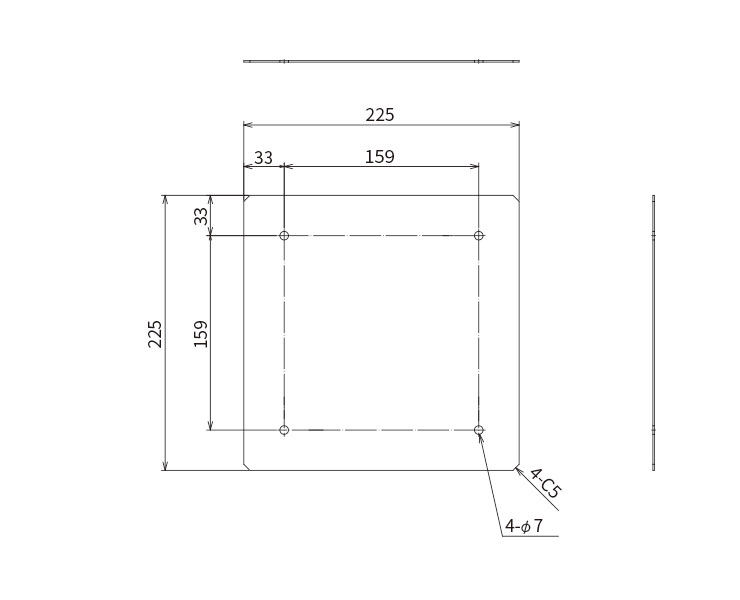

G | Closing plate for suction port | OMC-E047-1 |
H | Pre-filter | OMC-E046-1 |
I | Charge electrode | OMC-E0044-1 |
J | Collection electrode | OMC-E045-1 |
For the items marked with★, see Common parts.
Dimensional drawing
Intake piping for OMC-E345

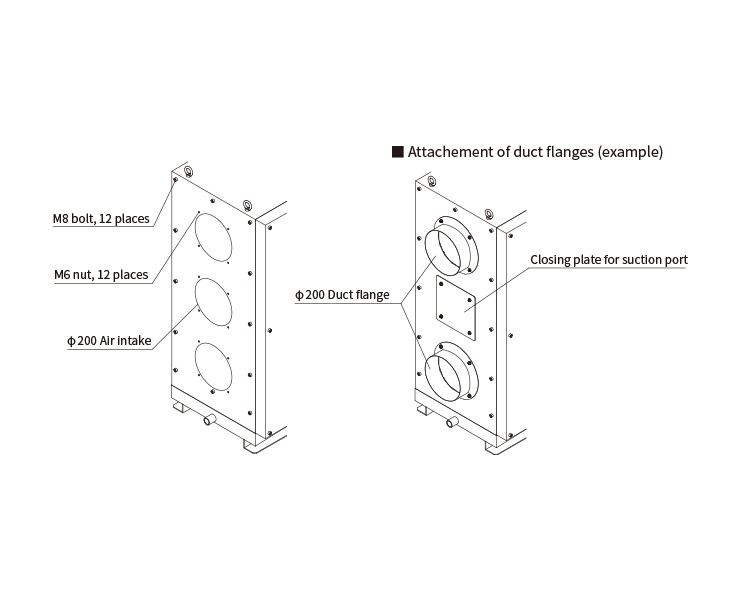

OMC-E345 has three suction ports of Ø200 to provide up to three duct hose connections as necessary.
No duct flanges are provided for these ports. Please purchase the necessary number of Ø200 duct flanges (P/N OMC-DF200) for hose connection.
For fixing duct flange(s) or closing unused port(s), 12 pcs. of M6 screws are necessary (not included in the supply).

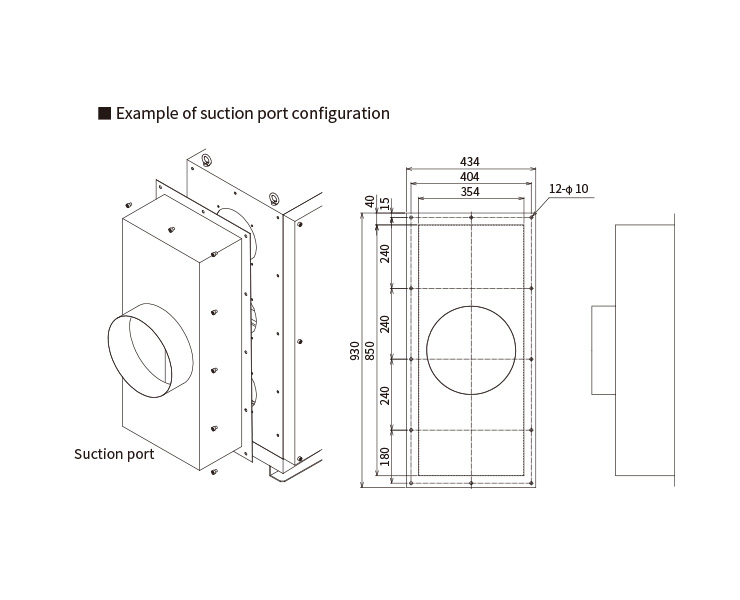

When you fabricate an original duct flange like an example illustrated below, secure it with 12 pcs. of M8 bolts using the holes provided.
It is recommended to seal around the jointed parts for leak prevention.
No duct flanges are provided for these ports. Please purchase the necessary number of Ø200 duct flanges (P/N OMC-DF200) for hose connection.
For fixing duct flange(s) or closing unused port(s), 12 pcs. of M6 screws are necessary (not included in the supply).
When you fabricate an original duct flange like an example illustrated below, secure it with 12 pcs. of M8 bolts using the holes provided.
It is recommended to seal around the jointed parts for leak prevention.
For OMC-E21

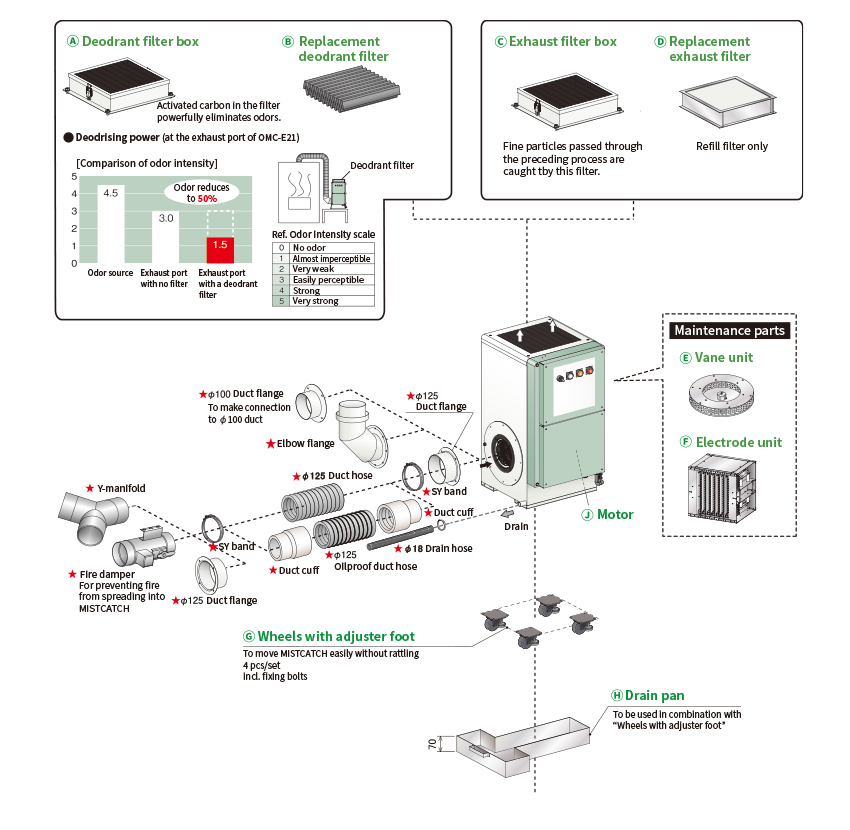

Option list
Part name | Part number | |

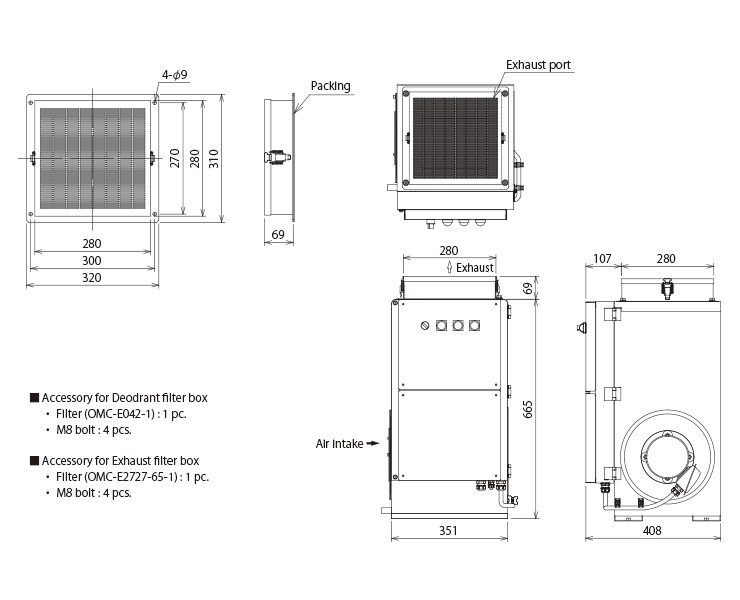

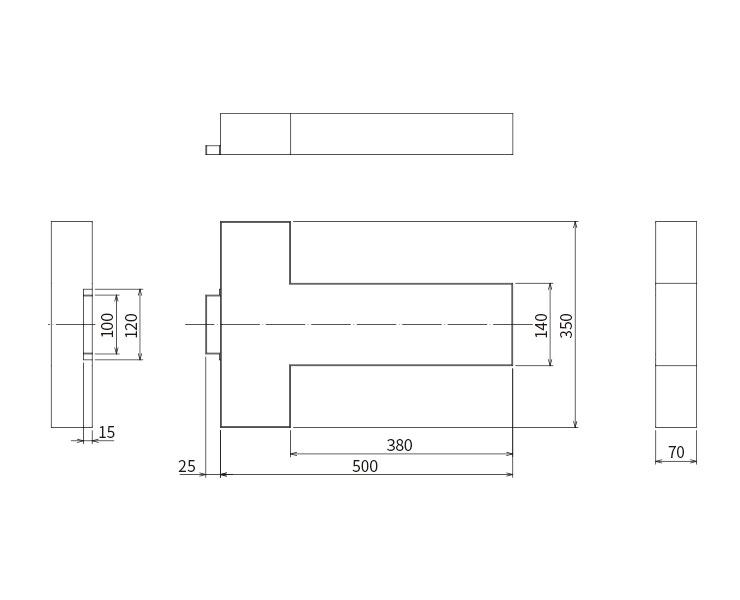

A | Deodorant filter box | OMC-E041-1 |
B | Replacement deodorant filter | OMC-E042-1 |
C | Exhaust filter box | OMC-E040-1 |
D | Replacement exhaust filter | OMC-E2727-65-1 |
E | Vane unit | OMC-026-1 |
F | Electrode unit | OMC-E026-1 |

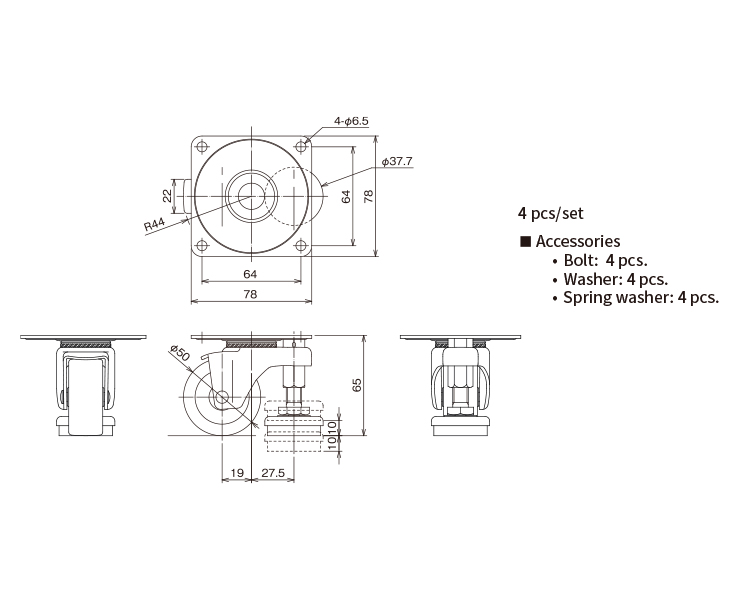

G | Wheels with adjuster foot | OMC-E033-1 |
H | Drain pan | OMC-E032-1 |
I | Motor | OMC-M01 |
For the items marked with★, see Common parts.
