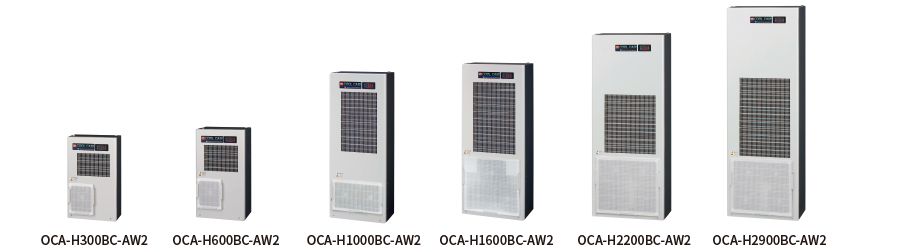

Non-fluorocarbon Series Standard type Lateral mounting
Wide input voltage from 200 to 240VAC, RS485(Modbus/RTU) equipped as standard.
Features
| Type of mounting | Use environment | Cooling system | Function | Obligatory inspection by Japanese law | Specifications |
| Lateral/Recessed | Indoor | Compressor |
Energy saving mode | N/A | Wide input voltage |
| Duct connectable/ Louver included |
Display function | RS485 equipped |
Awarded 2014 Global Warming Prevention Activity by Japan's Environment Minister in the Technological Development and Commercialization category for
"Reducing greenhouse gases by developing low GWP enclosure coolers"
"Reducing greenhouse gases by developing low GWP enclosure coolers"
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CCC | CSA | PSE |
Model/Specification
| Model | OCA- H300BC-AW2 |
OCA- H600BC-AW2 |
OCA- H1000BC-AW2 |
OCA- H1600BC-AW2 |
OCA- H2200BC-AW2 |
OCA- H2900BC-AW2 |
|
| Type of mounting | Lateral mounting | ||||||
| Cooling capacity *1 | 250/300W | 500/610W | 800/1000W | 1450/1600W | 2000/2200W | 2600/2900W | |
| Rated voltage（50/60Hz） *2 | Single phase 200 to 240VAC | ||||||
| Rated current consumption*3 | 200V | 1.2/1.5A | 2.1/2.7A | 2.9/3.7A | 3.4/4.4A | 5.0/5.3A | 6.6/7.8A |
| 220V | 1.3/1.5A | 2.3/2.7A | 3.1/3.7A | 3.4/4.5A | 5.8/5.1A | 6.7/7.4A | |
| 240V | 1.5/1.5A | 2.8/2.7A | 3.5/3.6A | 3.4/4.5A | 7.4/5.1A | 7.4/7.1A | |
| Max. current consumption*3 | 1.6/1.7A | 3.0/3.0A | 4.0/4.3A | 4.2/5.2A | 8.0/6.8A | 9.1/10.8A | |
| Starting current | 4.9/4.6A | 10.3/10.1A | 14.5/13.8A | 20.7/19.1A | 33.3/31.4A | 38.1/34.1A | |
| Rated power consumption *3 | 200V | 230/270W | 410/440W | 570/690W | 660/800W | 930/1050W | 1290/1540W |
| 220V | 260/310W | 490/490W | 650/760W | 720/860W | 1070/1110W | 1380/1590W | |
| 240V | 320/340W | 620/550W | 750/840W | 790/930W | 1300/1210W | 1550/1670W | |
| Max. power consumption *3 | 350/380W | 690/630W | 890/970W | 950/1170W | 1530/1480W | 1970/2190W | |
| Working temperature *3 | ＋20 to ＋50℃ | ||||||
| Working humidity | Not exceeding 85％RH, free from condensation | ||||||
| Noise | 63dB (A) | 64dB(A) | 65dB(A) | 66dB(A) | 66dB(A) | 66dB(A) | |
| Temp. setting range *3 | ＋30 to＋45℃ （Default +35℃） | ||||||
| Display | Internal temperature/Alarm code/Operation lamp (Green)/Alarm lamp (Red) | ||||||
| Function | Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection, Maintenance reminder, Forced cooling operation for inspection |
||||||
| Alarm output | No-voltage contact output 1a x 2 (COMMON) 250VAC 2A 30VDC 2A | ||||||
| Communication function | RS485 2-wire system (Modbus RTU) | ||||||
| Vibration withstand | Vibration frequency10 to 55Hz, Amplitude 0.15mm, Sweep cycle 10 times | ||||||
| Protection category *4 | Internal circuit IP54 equivalent | ||||||
| Conformity to standards | EMC Directiv | EN61000-6-4, EN61000-6-2 | |||||
| Low Voltage Directive | EN60335-1, EN60335-2-40 | ||||||
| UL standard | UL60335-1, UL60335-2-40 | ||||||
| CCC standard | GB4706.1, GB4706.32, GB4343.1, GB17625.1 | ||||||
| Environment | RoHS2 | ||||||
| Refrigerant | R1234yf （130g） |
R1234yf （280g） |
R1234yf （500g） |
R1234yf （780g） |
R1234yf （1000g） |
R1234yf （1100g） |
|
| GWP *5 | ＜1 | ||||||
| Color | Powder coating N8 corresponding, N4 corresponding | ||||||
| Dimensions（mm）*6 |
W300×H500 ×D150 |
W300×H550 ×D200 |
W350×H900 ×D200 |
W390×H950 ×D220 |
W450×H1150 ×D220 |
W450×H1350 ×D220 |
|
| Weight | 16.0kg | 20.0kg | 33.0kg | 41.0kg | 50.0kg | 62.0kg | |
*1 Nominal value when both of internal and external temperatures are +35℃. By attaching the provided louver, the capacity reduces by up to 5% (*Lateral mounting type only).
*2 The permissible voltage variation during operation is within +5% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*3 Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ ambient air are indicated in “Max” .
*4 Use only within the specified temperature range.
*5 By IPCC 5th Report 2013
*6 Excluding projections
*2 The permissible voltage variation during operation is within +5% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*3 Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ ambient air are indicated in “Max” .
*4 Use only within the specified temperature range.
*5 By IPCC 5th Report 2013
*6 Excluding projections
Quick Selection
Simply input some information to see the best suited models and the required capacity for your application.
OCA-H300BC-AW2
Cooling capacity
250/300W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：4 pcs ●Washer：4 pcs ●Spring washer：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc （2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：1 pc.●Screws for louver：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc （2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：1 pc.●Screws for louver：4 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S1（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |
Performance diagram

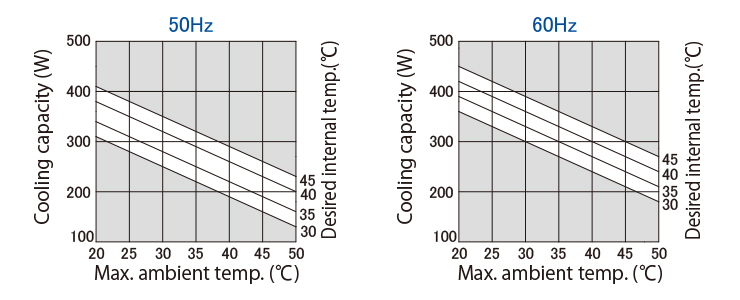

- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

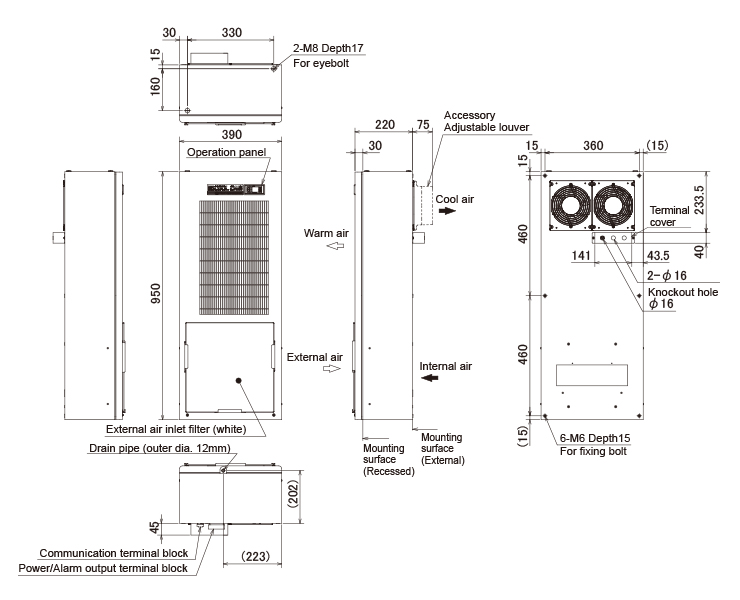

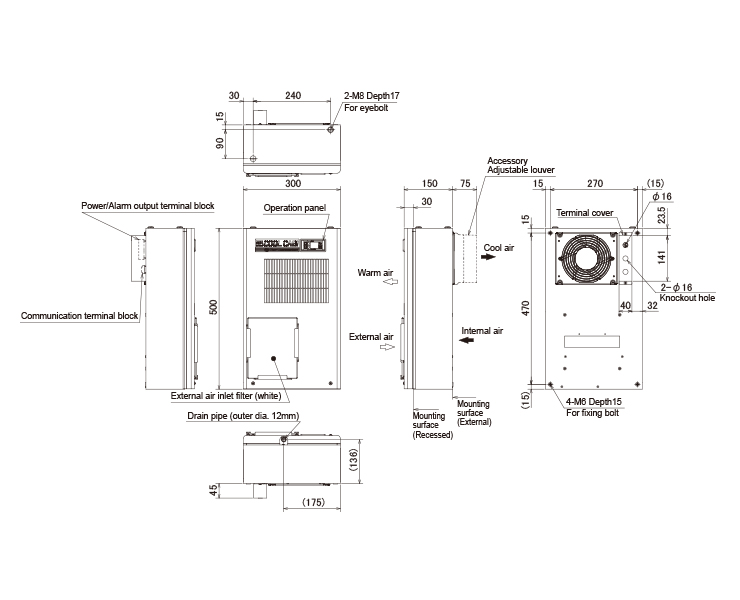

Dimensional drawing

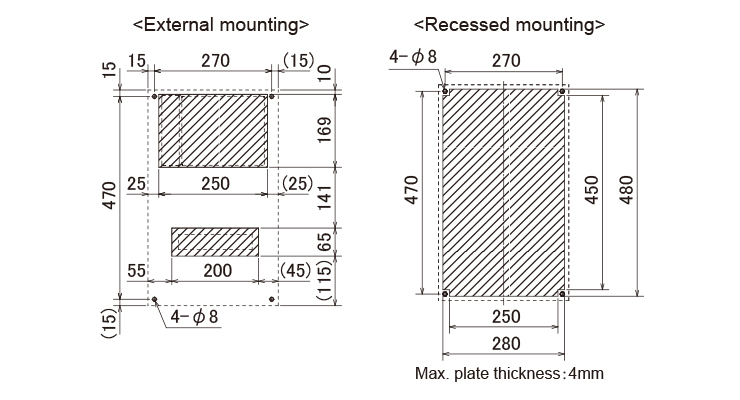

Mounting cutout
Cooling capacity
500/610W（50/60Hz）
A complete set of supply
●COOLCABI：1pc ●Fixing bolt：4 pcs ●Washer：4 pcs ●Spring washer：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：1 pc. ●Screws for louver：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：1 pc. ●Screws for louver：4 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S1（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

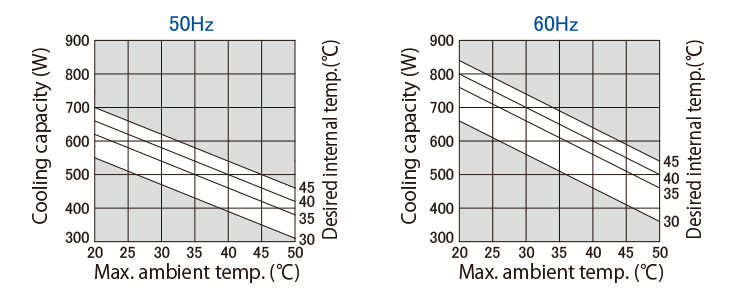

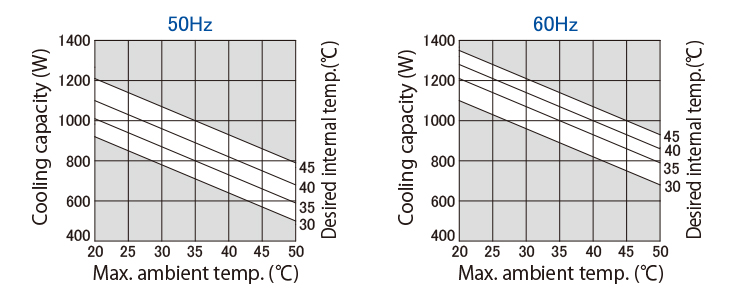

Performance diagram
- Click the image to enlarge.
- Please refer to "Model selection for enclosure cooler" when you see the performance diagram.

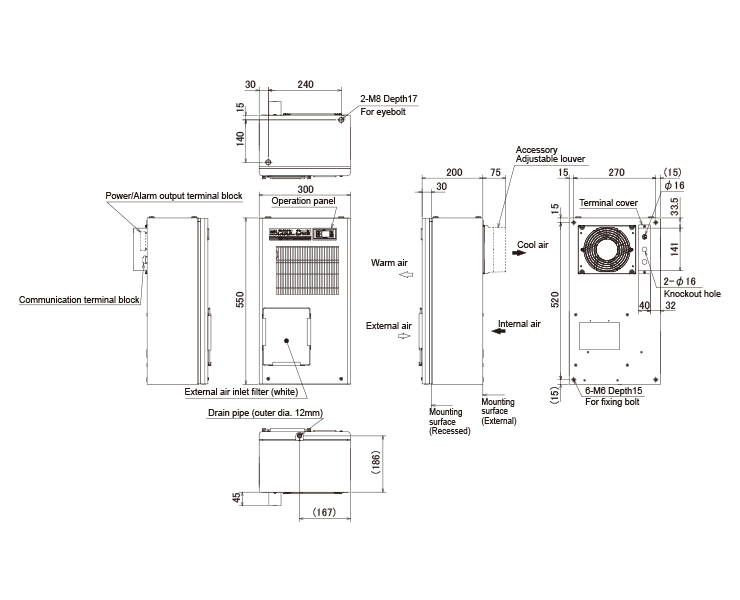

Dimensional drawing

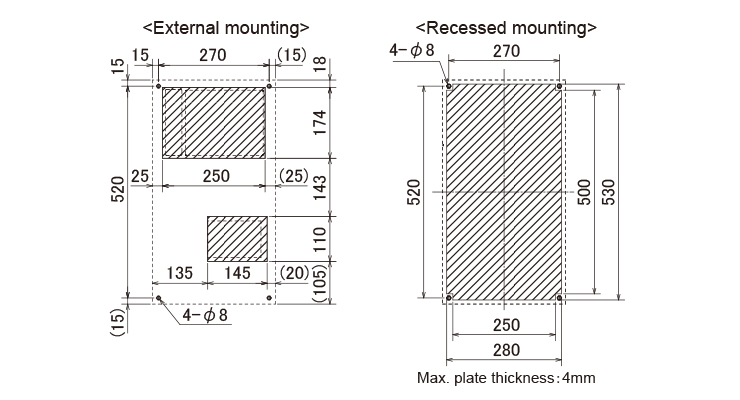

Mounting cutout
Cooling capacity
800/1000W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：6pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Insutruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Insutruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S2（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

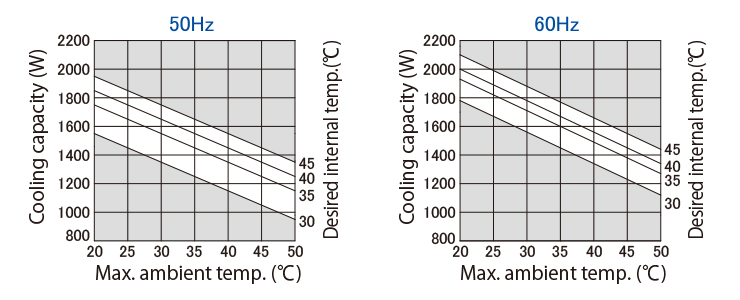

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

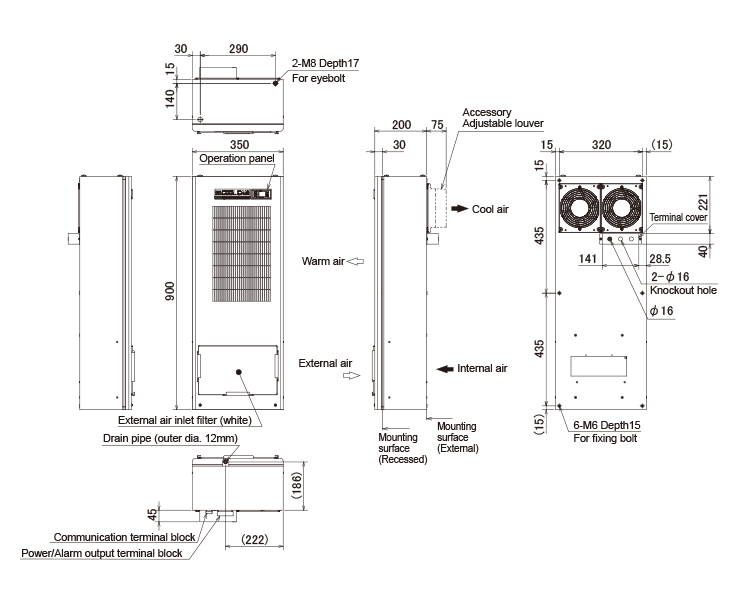

Dimensional drawing

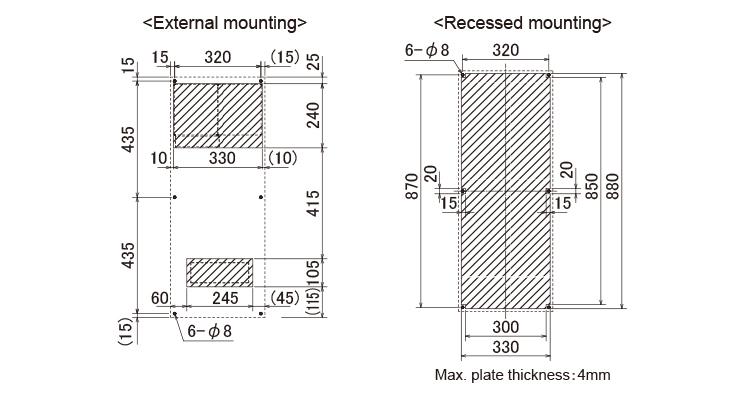

Mounting cutout
Cooling capacity
1450/1600W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose:1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose:1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S3（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |
Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

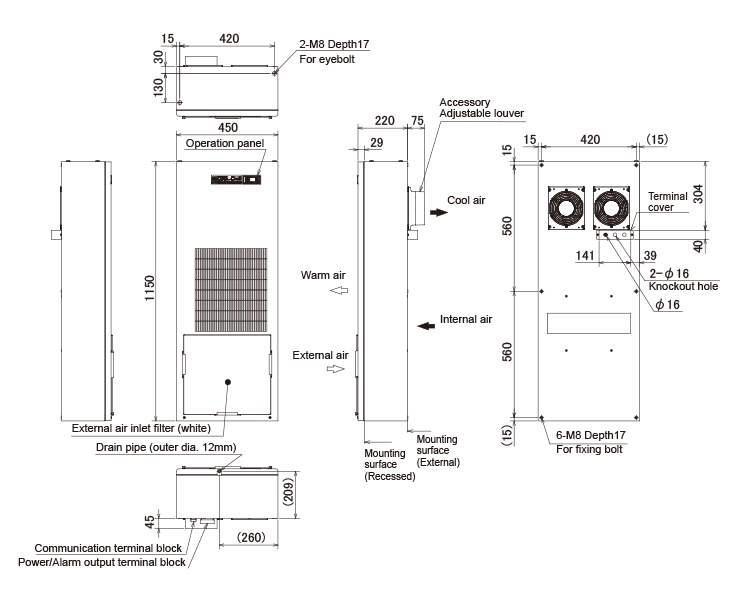

Dimensional drawing

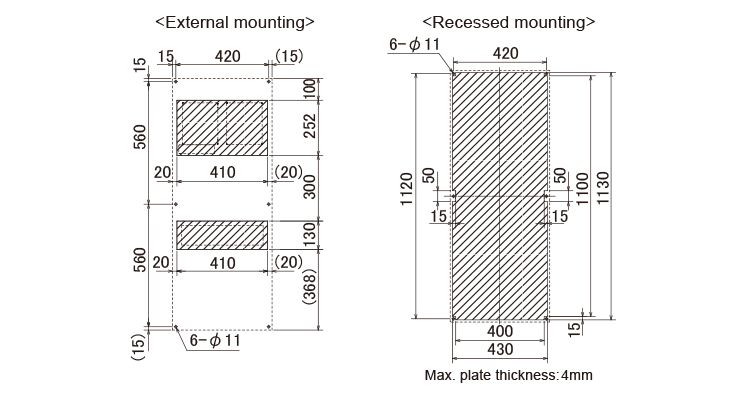

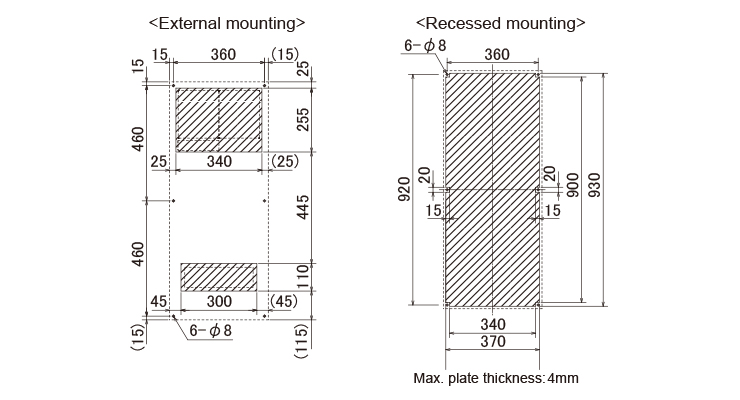

Mounting cutout
Cooling capacity
2000/2200W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S7（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

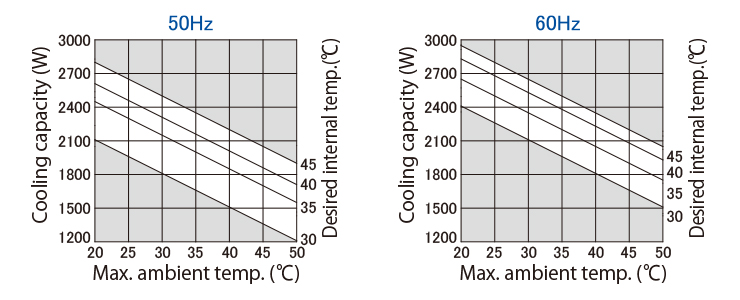

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.
Dimensional drawing

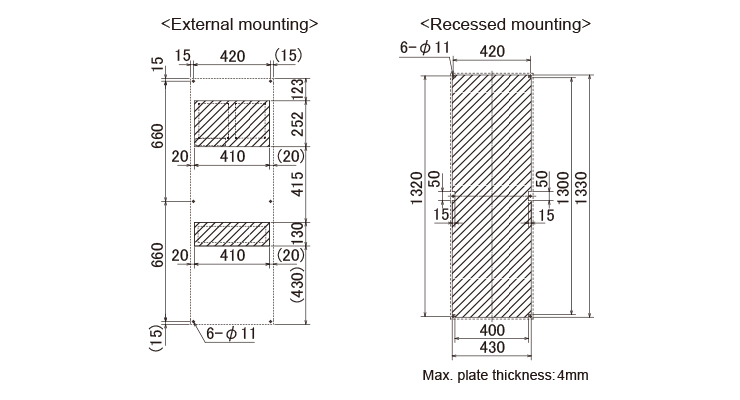

Mounting cutout
Cooling capacity
2600/2900W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet：1 sheet ●Instruction manual：1 copy
●Adjustable louver：2 pcs ●Screws for louver：8 pcs
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S7（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

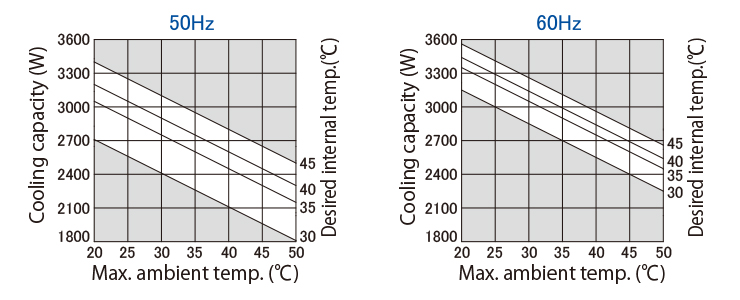

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.
Dimensional drawing
Mounting cutout
Adjustable louver set
Provides linearity and directionality to cool air in the enclosure for cooling heat spot directly and making the overall temperature inside the enclosure evenly
Duct kit
Use of Duct kit allows cooling from a separately-placed COOLCABI.
Drain evaporator
Use of these drain evaporator eliminates troublesome drain treatment
Self-winding filter
Roll filter is wound up automatically by motor.Free yourself from troublesome filter maintenance work.
