Climate control equipment


Option Adjustable louver set


Cool air is directly blown to the heat source to prevent local temperature rise
as well as creating uniform temperature in the enclosure.

風向調整ルーバーセット

  • Linearity and directivity of cool air inside enclosure
    Use of louver enables direct air blow to a local heat spot or a distant heat source from a COOLCABI to realize ideal cooling.
    Adjustable louver consists of base and louver top. Use the base solely or in combination with the louver top with adjusting the direction according to the application.
  • Equalization of internal temperature
    Use of louver facilitates smooth airflow and creates ideal temperture distribution by suppressing local temperature rise in an enclosure.

Model/Specification

Adjustable louver set model Appicable models of COOLCABI A set of complete supply
Mounting plate Mounting plate stay Adjustable louver
(for Ø150)
Packing for attaching mounting plate
Fixing screw
*1
OCA-RS300BCS OCA-H/S300BCS 1 - 1 - 4
OCA-RS300AC OCA-H/S300AC 1 - 1 1 4
OCA-RS700AC OCA-H/S700AC 1 - 1 1 4
OCA-RS1100AC OCA-H/S1100AC 1 - 2 1 8
OCA-RS1700AC OCA-H/S1700AC 1 - 2 1 8
OCA-RS2300AC OCA-H/S2300AC 1 - 2 1 8
OCA-RS3000AC OCA-H/S3000AC 1 - 2 1 8
OCA-RS350BCD OCA-H/S350BCD 1 2 1 - 8
OCA-RS700BCD OCA-H/S700BCD 1 - 1 - 4
OCA-RS1300BCD OCA-H/S1300BCD 1 - 1 - 4
OCA-RS2300BCD OCA-H/S2300BCD 1 - 2 - 8
*1 For adjustable louver and by attaching Ø150 mounting plate

Selective use of louver top

To give linearity to the airflow

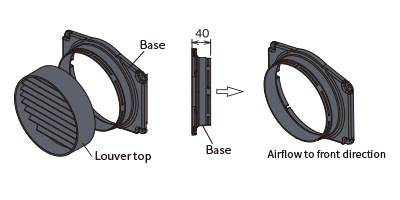

Use the bace only.

本体のみ

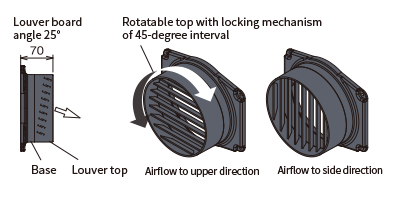

To give linearity and angle to the airflow
Use both of the base and the louver top.

本体と先端部

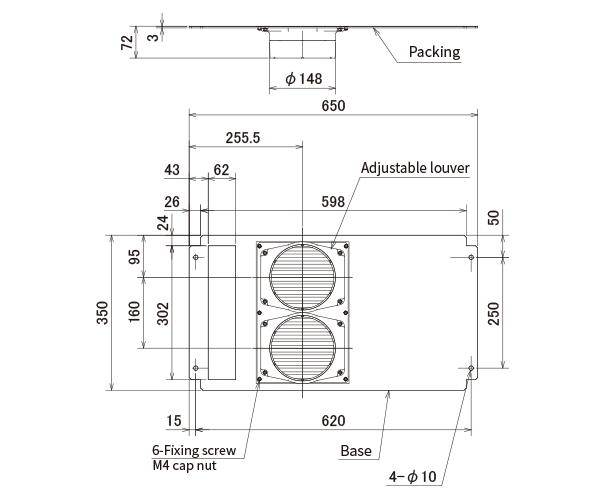

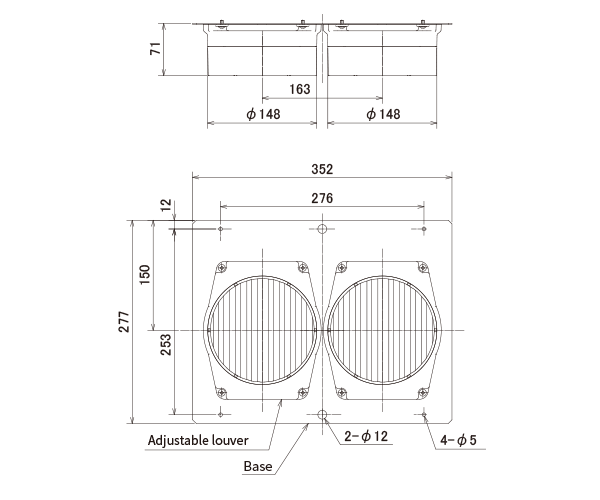

Dimensional drawing

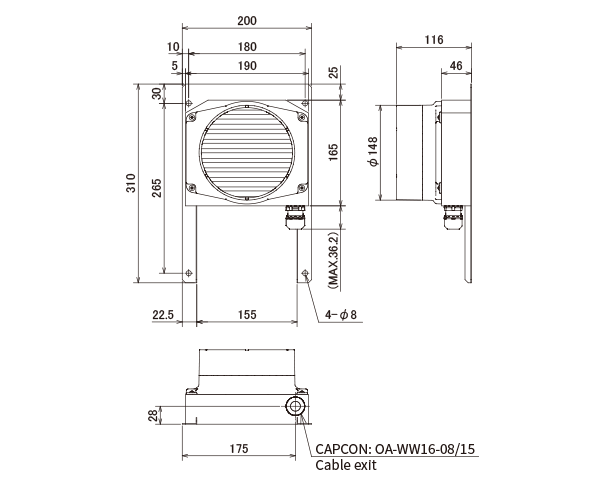

OCA-RS300BCS

OCA-RS300BCS

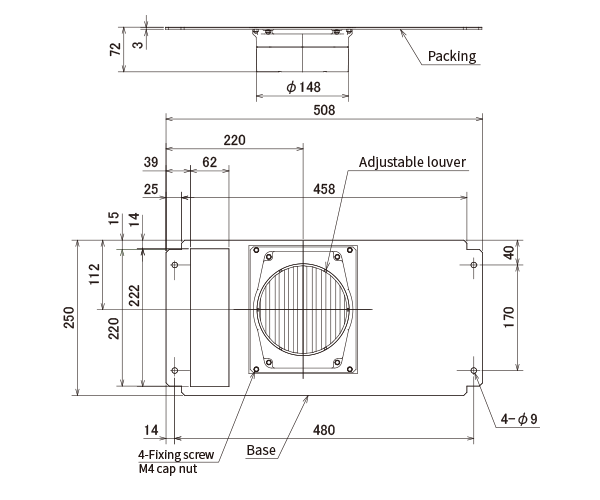

OCA-RS300AC

OCA-RS300AC

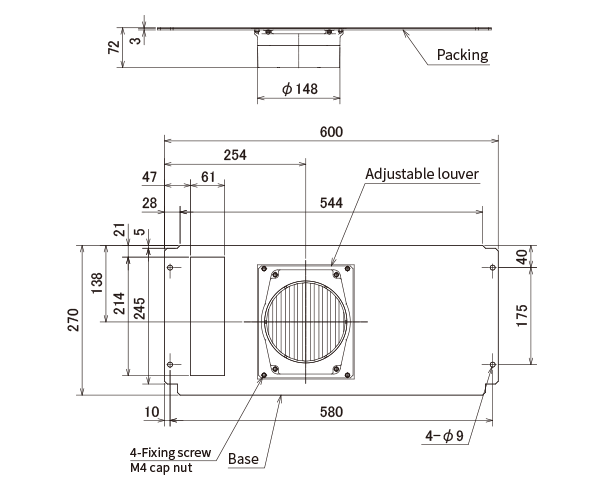

OCA-RS700AC

OCA-RS700AC

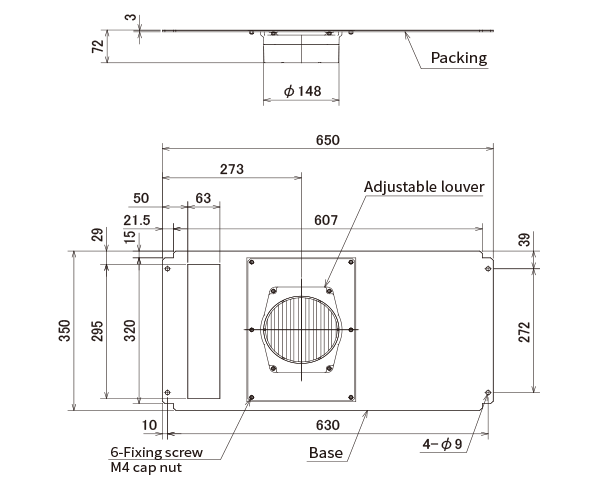

OCA-RS1100AC

OCA-RS1100AC

OCA-RS1700AC

OCA-RS1700AC

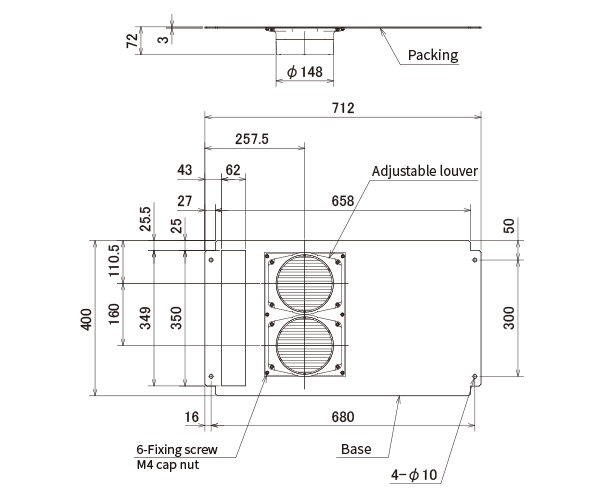

OCA-RS2300AC

OCA-RS2300AC

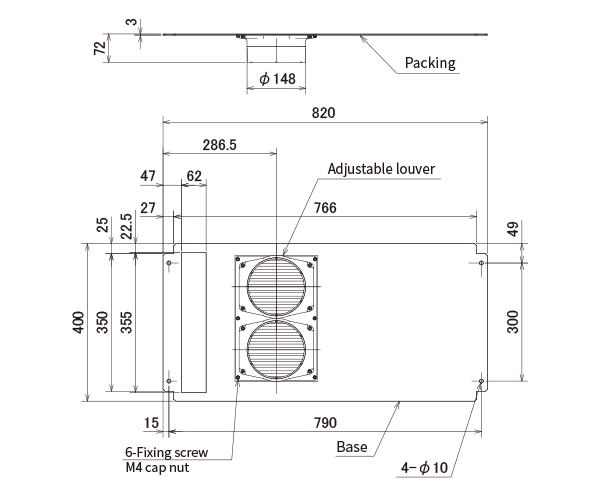

OCA-RS3000AC

OCA-RS3000AC

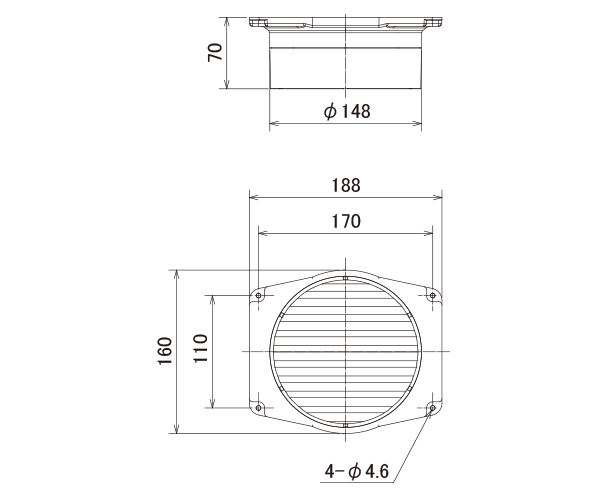

OCA-RS350BCD

OCA-RS350BCD

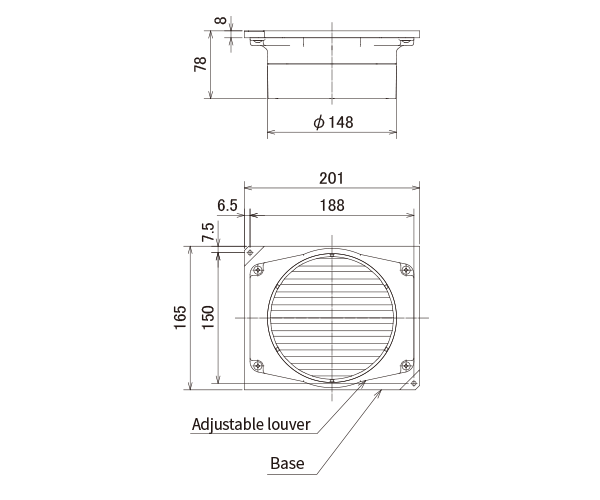

OCA-RS700BCD

OCA-RS700BCD

OCA-RS1300BCD

OCA-RS1300BCD

OCA-RS2300BCD

OCA-RS2300BCD
