Climate control equipment


Option Duct kit

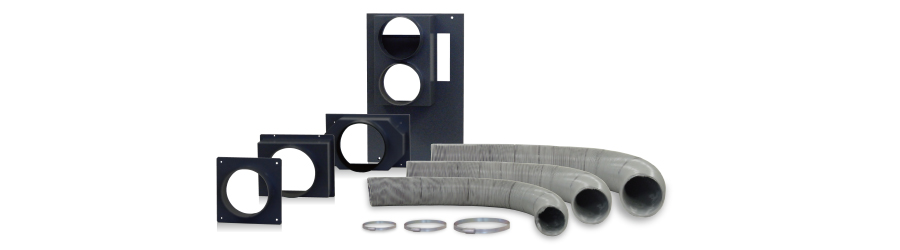

Use of Duct kit allows cooling from a separately-placed COOLCABI.

ダクトセット

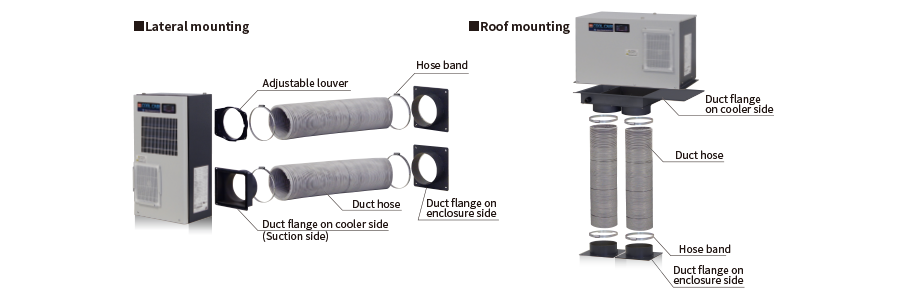

取付イメージ

Model/Specification

Duct kit model A complete set of supply
Duct flange on cooler side Duct flange on enclosure side Duct hose 5m Hose band Screws for mounting to COOLCABI*1
Suction side Exhaust side Ø125 Ø150 Ø200 Ø125 Ø150 Ø200 Ø125 Ø150 Ø200 A B
OCA-DS300BCS 1(one-body) 2 - - 1 - - 4 - -
OCA-DS300BC 1 1 - 2 - - 1 - - 4 - 4 4
OCA-DS1000BC 1 1 - - 2 - - 1 - - 4 4 4
OCA-DS2200BC 1 1 - - 2 - - 1 - - 4 4 4
OCA-DS300AC 1(one-body) - 2 - - 1 - - 4 -
OCA-DS700AC 1(one-body) - 2 - - 1 - - 4 -
OCA-DS1100AC 1(one-body) - - 2 - - 1 - - 4
OCA-DS1700AC 1(one-body) - - 2 - - 1 - - 4
OCA-DS2300AC 1(one-body) - - 2 - - 1 - - 4
OCA-DS3000AC 1(one-body) - - 2 - - 1 - - 4
OCA-DS350BCD 1(one-body) 2 - - 1 - - 4 - -
OCA-DS700BCD 1(one-body) - 2 - - 1 - - 4 -
OCA-DS1300BCD 1(one-body) - 2 - - 1 - - 4 -
OCA-DS2300BCD 1(one-body) - - 2 - - 1 - - 4
*1 Fixing screws on enclosure side are not enclosed in the package.Please have them ready at your end.
A:NB M4×12 N tapping screw B:M4×10 sems screw  ①Use a set of supply packed in main body(COOLCABI).

Applicable models

Duct kit model COOLCABI model
OCA-DS300BCS OCA-H/S300BCS
OCA-DS300BC OCA-H/S300BC OCA-H/S600BC
OCA-DS1000BC OCA-H/S1000BC OCA-H/S1600BC
OCA-DS2200BC OCA-H/S2200BC OCA-H/S2900BC
OCA-DS300AC OCA-H/S300AC
OCA-DS700AC OCA-H/S700AC
OCA-DS1100AC OCA-H/S1100AC
OCA-DS1700AC OCA-H/S1700AC
OCA-DS2300AC OCA-H/S2300AC
OCA-DS3000AC OCA-H/S3000AC
OCA-DS350BCD OCA-H/S350BCD
OCA-DS700BCD OCA-H/S700BCD
OCA-DS1300BCD OCA-H/S1300BCD
OCA-DS2300BCD OCA-H/S2300BCD

Dimensional drawing

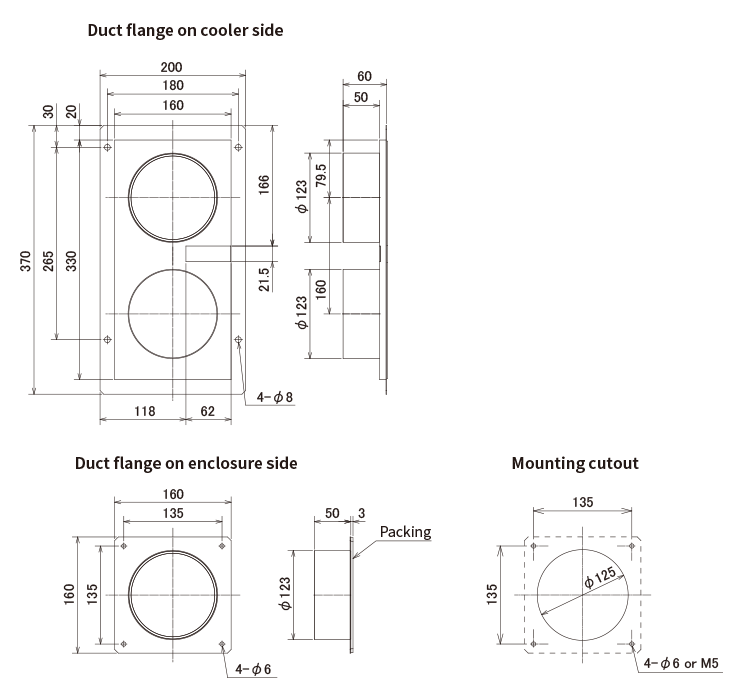

OCA-DS300BCS

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

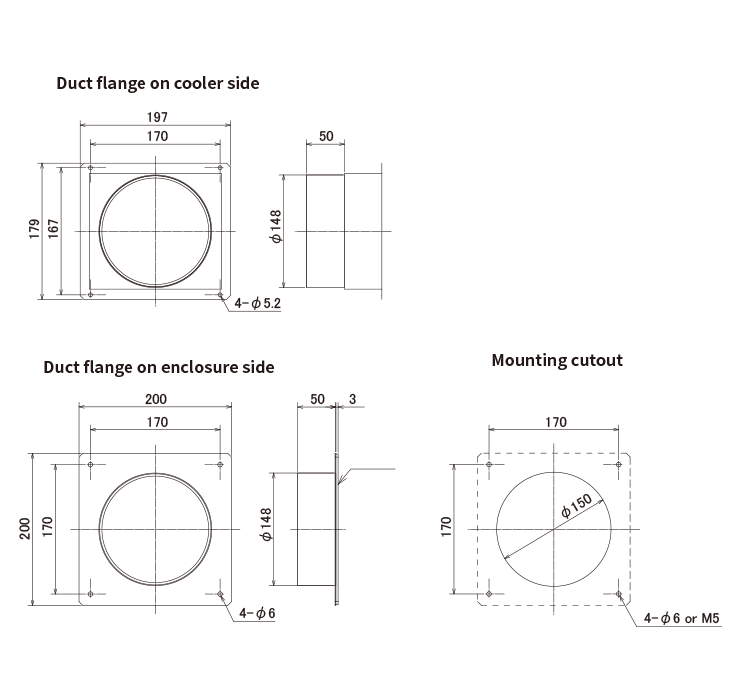

OCA-DS300BC

■Duct flange on cooler side (Exhaust side)

本体側ダクトフランジ吐出側

■Duct flange on cooler side (Suction side)

本体側ダクトフランジ吸込側

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

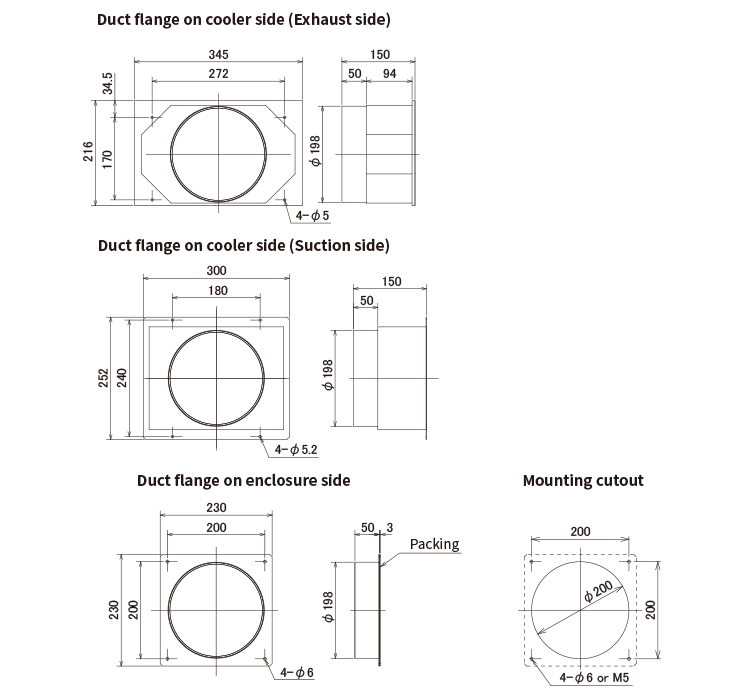

OCA-DS1000BC

■Duct flange on cooler side (Exhaust side)

本体側ダクトフランジ吐出側

■Duct flange on cooler side (Suction side)

本体側ダクトフランジ吸込側

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

盤側ダクトフランジ

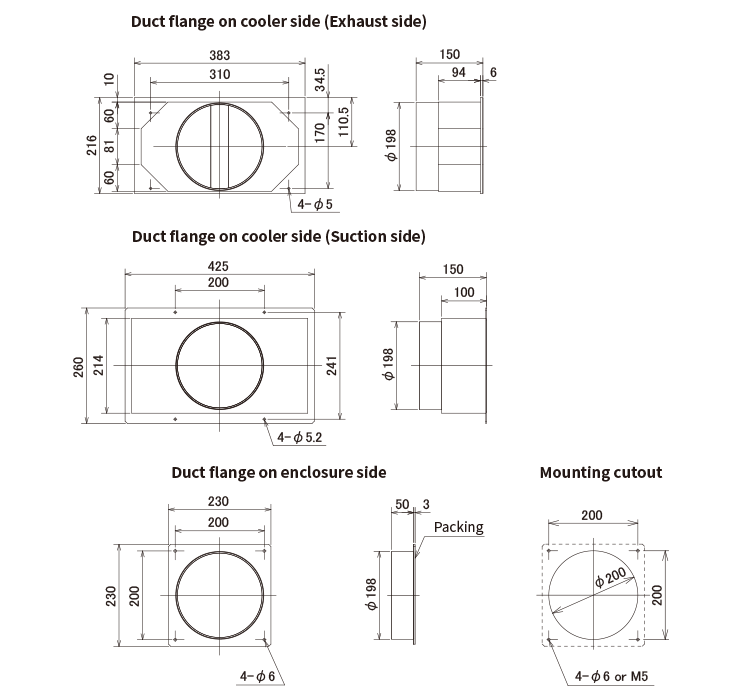

OCA-DS2200BC

■Duct flange on cooler side (Exhaust side)

本体側ダクトフランジ吐出側

■Duct flange on cooler side (Suction side)

本体側ダクトフランジ吸込側

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

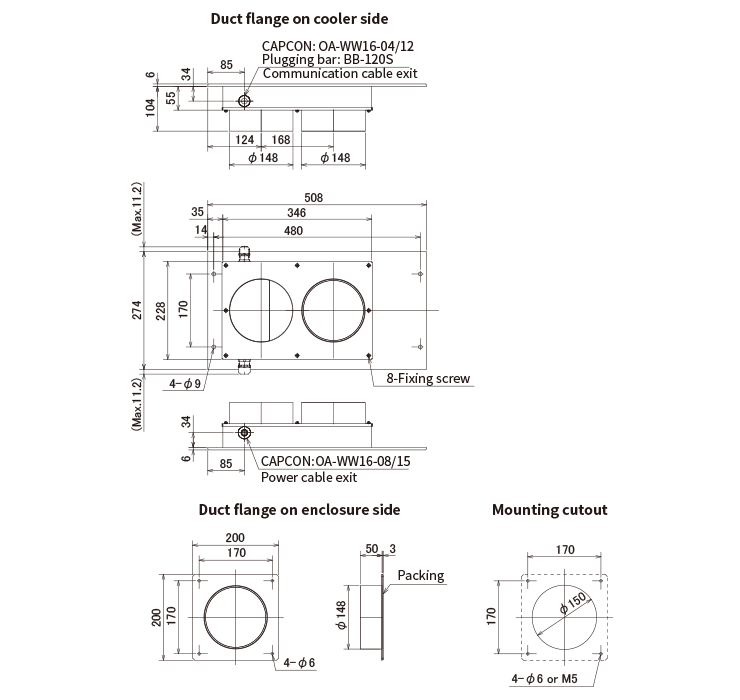

OCA-DS300AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange of enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

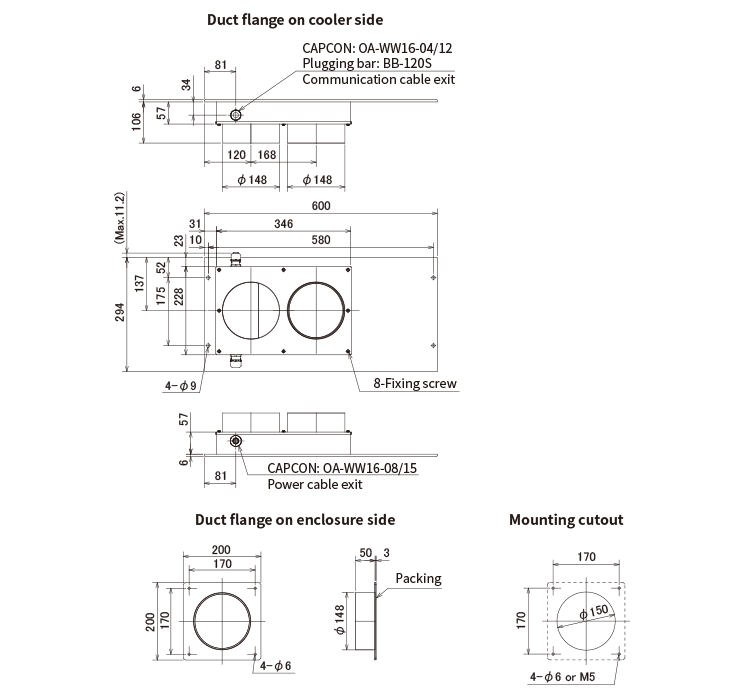

OCA-DS700AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

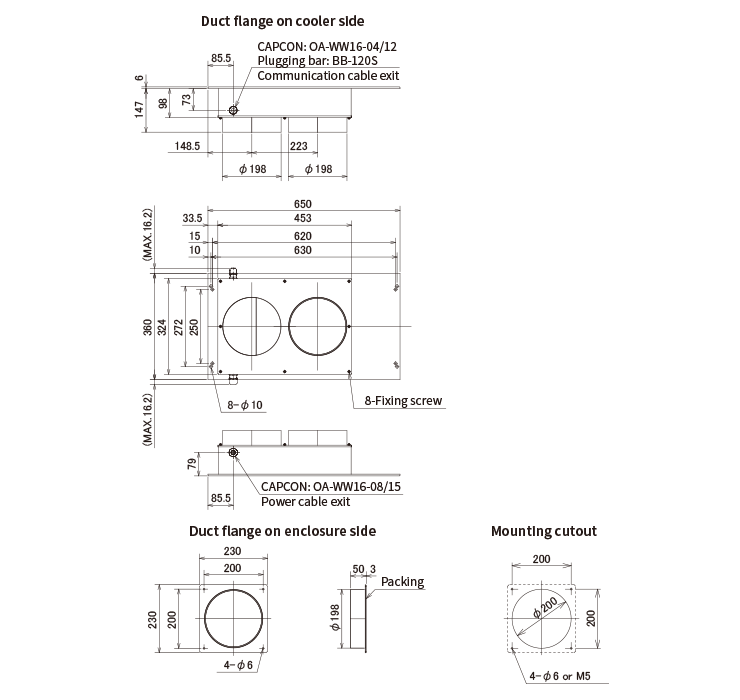

OCA-DS1100AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

Mounting cutout

パネルカット図

OCA-DS1700AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

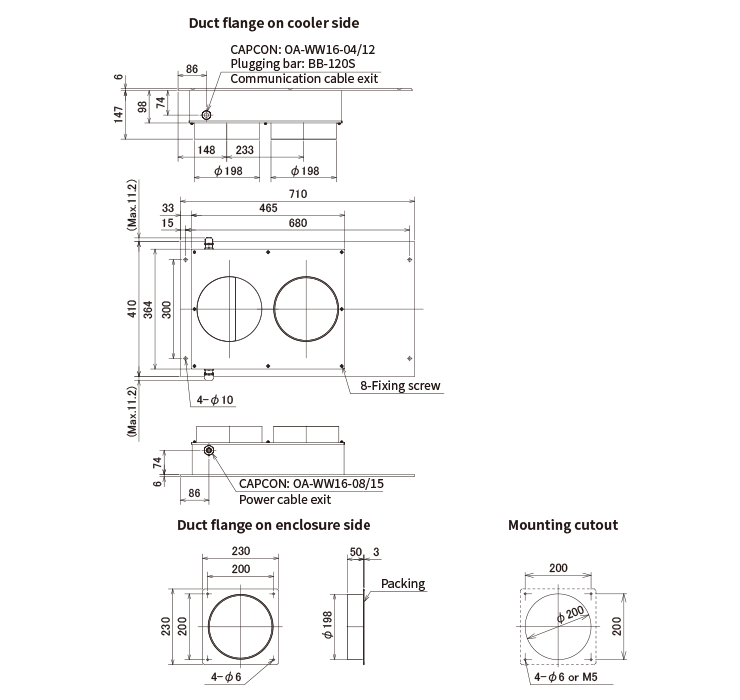

OCA-DS2300AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

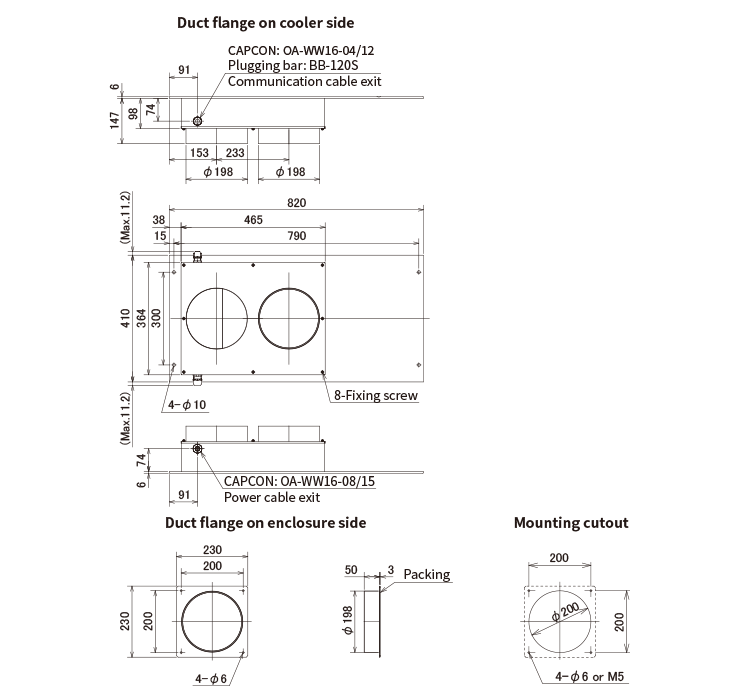

OCA-DS3000AC

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

パネルカット図

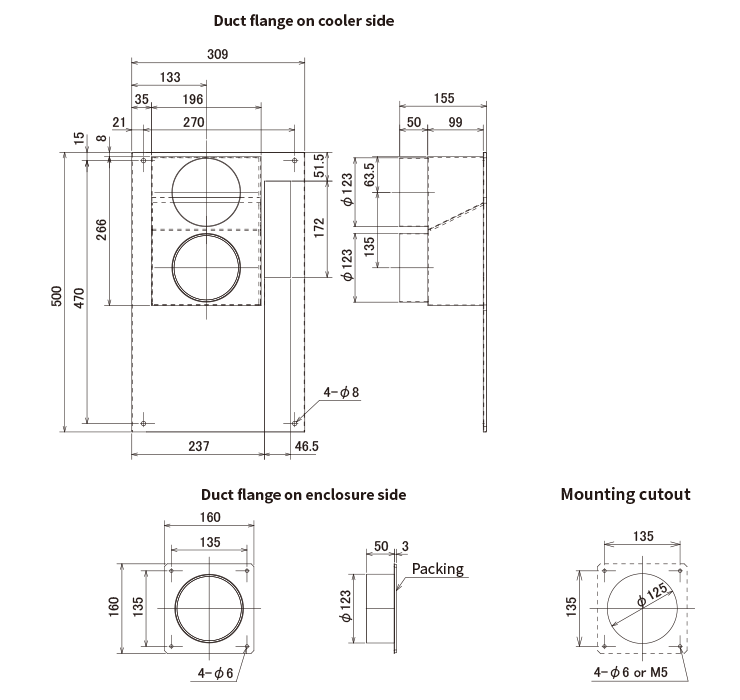

OCA-DS350BCD

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

盤側ダクトフランジ パネルカット図

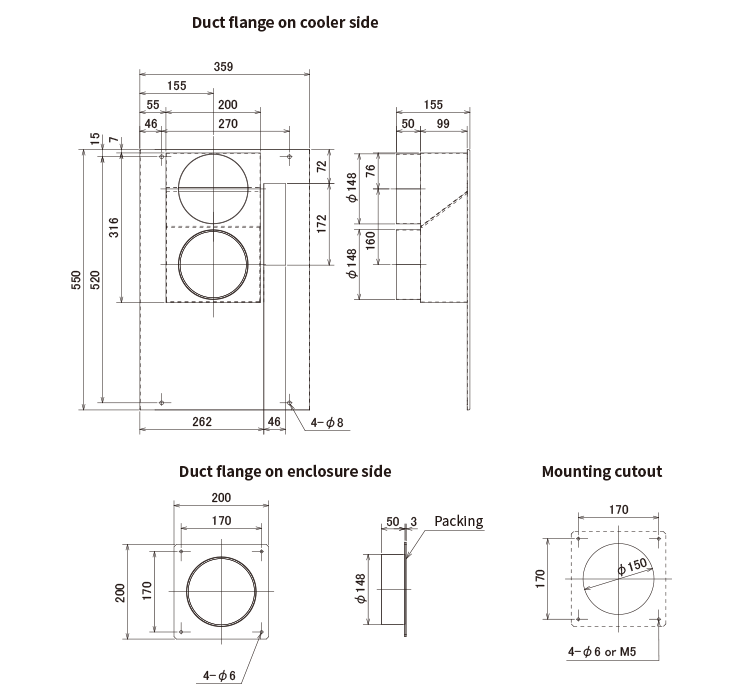

OCA-DS700BCD

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

盤側ダクトフランジ パネルカット図

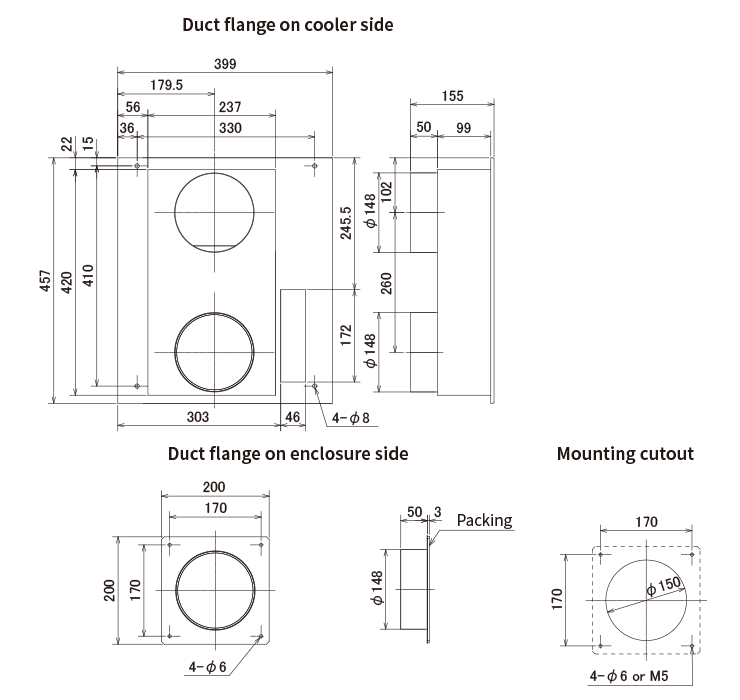

OCA-DS1300BCD

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

盤側ダクトフランジ パネルカット図

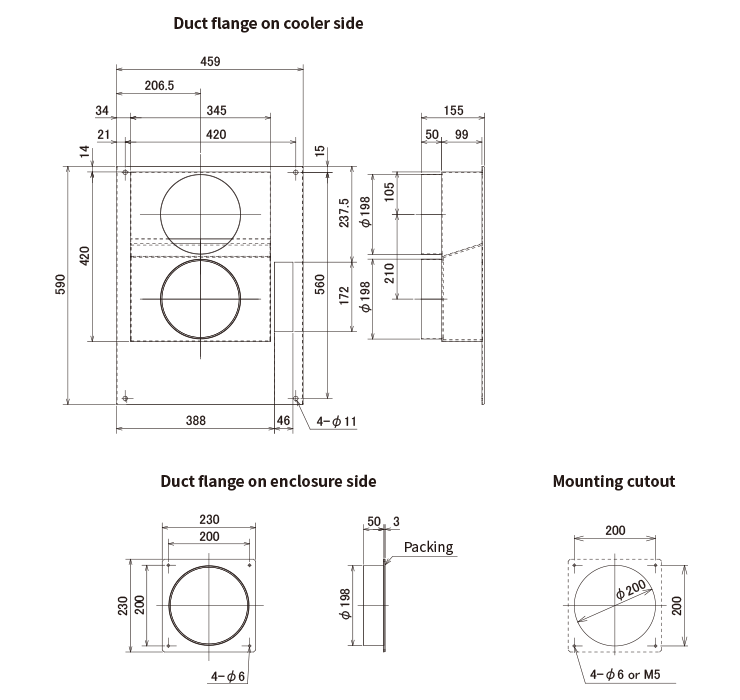

OCA-DS2300BCD

■Duct flange on cooler side

本体側ダクトフランジ

■Duct flange on enclosure side

盤側ダクトフランジ

■Mounting cutout

盤側ダクトフランジ パネルカット図


Cautions

※Cooling capacity and air speed change depending on the length of duct hose.
<Our standard of measurement>
  • Hose length on suction side/exhaust side is 1 m each---Cooling capacity: 80% of nominal value, Discharge wind speed:80% of direct installation
  • Hose length on suction side/exhaust side is 2m each ---Cooling capacity :75% of nominal value Discharge wind speed:60% of direct installation
※Please cut duct hose (5m/1pc) in the arbitrary length for suction side and exhaust side depending on your application. Unnecessarily long hose causes pressure loss and results in poor cooling performance. Distance between cooler and control panel should be the shortest and use hose without loosening.
※Each flange should be installed as far as possible. If suction port and exhaust port in the enclosure are close, short air circulation will occur.
※Dew condensation on the duct hose can occur when temperature difference is big between outside and inside of enclosure or the air is highly humid. Under 35℃ setting temperature, duct hose surface can form dew condensation when external temperature of enclosure is 40℃ and relative humidity is more than 80%. Please take preventive measures like covering hose with heat insulator or raising the setting temperature.
※Mounting stand is not included.
