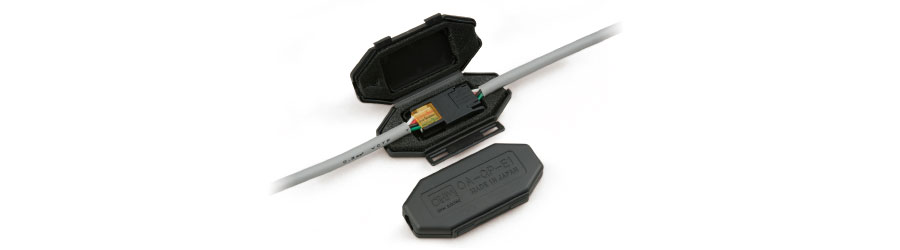

Antidust cover for e-CON connector e-CON Cap

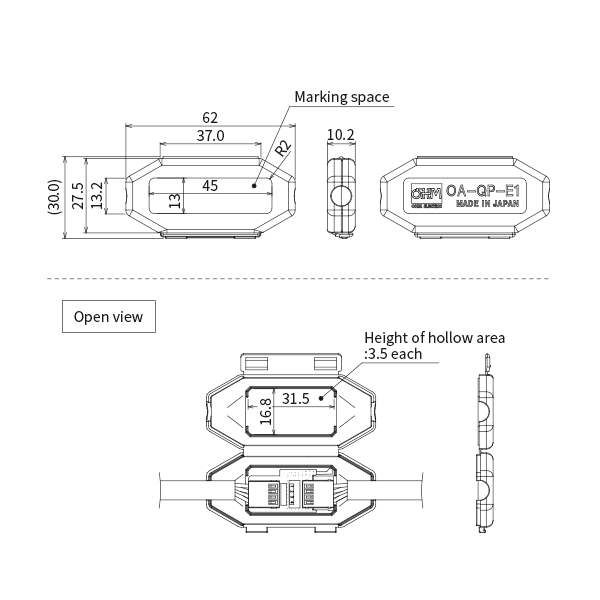

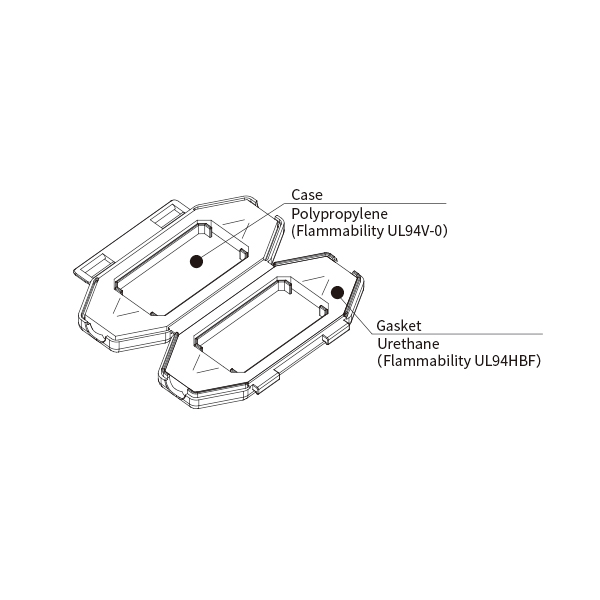

|EU RoHS2||China RoHS||CE||UL||CSA||PSE|
|Model||Applicable cabtyre cable diameter (mm)||Applicable connector||Protection category||Working temperature||Color||Weight||Q'ty per package|
|OA-OP-E1||Ø0 - 7.0||As per table below||IP54 equivalent||-20 to +80℃||Black||6g||10 pcs.|
|Manufacturer||Number of poles||Model|
|3M Japan||3-pole||Plug side : 37103-□□□□-000 FL|
|Socket side : 37303-□□□□-000 FL|
|4-pole||Plug side : 37104-□□□□-000 FL|
|Socket side : 37304-□□□□-000 FL|
|OMRON||4-pole||Plug side : XN2A-1430・XN2A-1470|
|Socket side : XN2B-1430・XN2B-1470|
|Tyco Electronics||3-pole||Plug side : 1473562-3|
|Socket side : 1746741-3|
|4-pole||Plug side : 1473562-4|
|Socket side : 1746741-4|

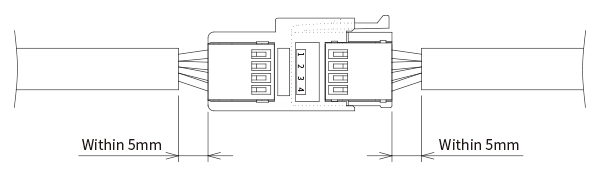

1. Prepare the connectors.
2. Place the cable-jointed connectors in e-CON cover.
3. Close the cover.
4. Lock it.
Use of a CC holder OL-G4A-80 is recommended for ease of fixed mounting.
Mount the CC Holder with M4 screw.
Place the e-CON Cap on the CC holder.
Secure the cables on both sides with banding bands.
・Do not use other connectors than specified.
・This product is for round cables only.

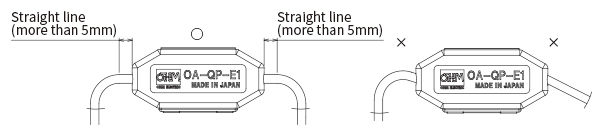

・Avoid bending the cables sharply at at the exits of e-CON Cap. Failure to this may affect protection performance.
・Avoid changing to different size cables once the work has completed. As the packing of e-CON Cap has been deformed to fit the cable used at first, protection performance may be affected.
・Do not use or store this product under the following environments.
・Failure to this will lead to quality deterioration.
・Places exposed to the rain.
・Strong acids or organic solvents like xylene, nitrobenzene, acetic ether etc. are contained in the air.
・Water vapor, ozone in the air.
・Under oil or water
For any other special environment conditions, please consult us.
