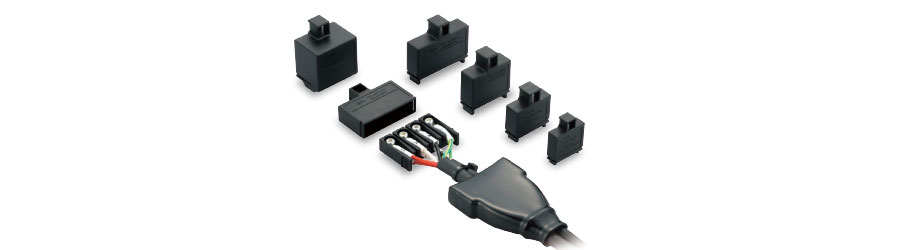

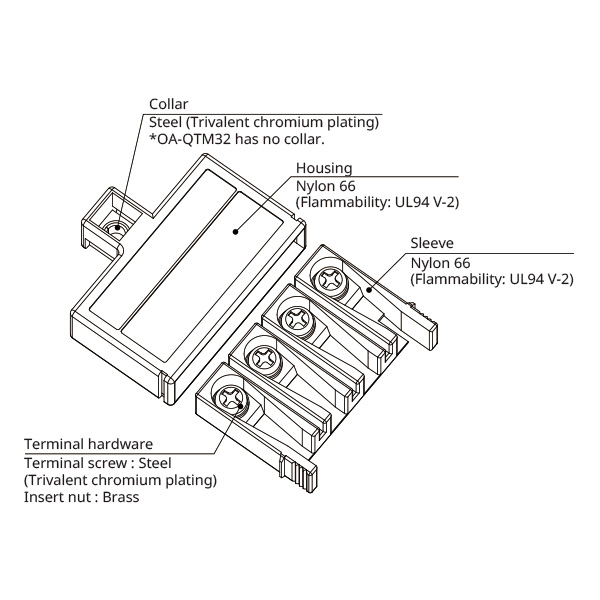

Multiple connection insulation cap OA-QTM for relaying

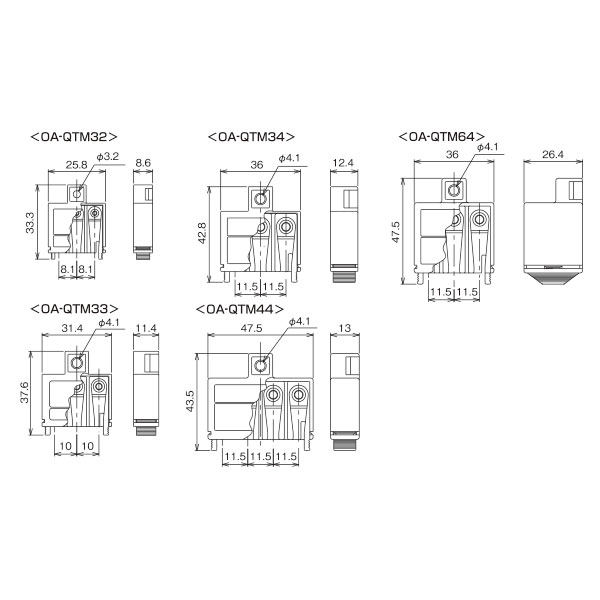

|Color||Rated voltage||Number of poles|
|EU RoHS2||China RoHS||CE||UL||CSA||PSE|
|Model||Number of poles||Rated voltage||Max. applicable cable diameter (mm)||Working temperature||Weight||Q'ty per package|
|OA-QTM32||3P||600V AC/DC||Ø3×2 pcs/terminal screw||-20 to +80℃||5g||20 pcs.|
|OA-QTM33||Ø3.5×2 pcs/Terminal screw||10g|
|OA-QTM34||Ø5×2 pcs/Terminal screw||15g|

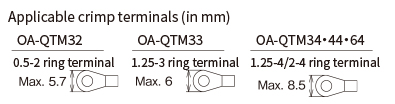

1. Make wire connections.
2. Slide cable assembly into the housing.
3. Push it until it makes a clicking sound.
When fixed with a screw
When fixed with a cable tie
・Make sure that screws are tightened.
・Pay attention to the direction of crimp terminals. Do not connect more than 2 crimp terminals.
Remove the housing facing up the engraved surface.
If the engraved surface is positioned downward, the terminal screw will drop off.
*Do not uncover the product when applying current.
*This product is not waterproof. Use OA-QW products where waterproofness is required.
*Use and storage under the following conditions should be avoided. Failure to it can lead to deterioration of product quality.
