Option Transformer for COOL CABI (Separate placement)


Single-phase transformer(Auto transformer)Model/Specification

Model TR-CC300-220V TR-CC600-220V TR-CC1000-220V TR-CC1600-220V
Primary side(50/60Hz) 220V
Secondary side(50/60Hz) 200V
Capacity 500VA 750VA 1kVA 1.5kVA
Weight 2.0kg 2.5kg 3.5kg 4.5kg
Insulation class(※1) A
Terminal screw M3
Applicable models of COOL CABI OCA-H/S300BC
OCA-H/S300BCS
OCA-H/S300AC
OCA-H350BCD
OCA-H/S600BC
OCA-H/S700AC
OCA-H700BCD
OCA-H/S1000BC
OCA-H/S1100AC
OCA-H1300BCD
OCA-H/S1600BC
OCA-H/S1700AC

Model TR-CC300-230V TR-CC600-230V TR-CC1000-230V TR-CC1600-230V
Primary side(50/60Hz) 230V
Secondary side(50/60Hz) 200V
Capacity 500VA 750VA 1kVA 1.5kVA
Weight 2.5kg 3.5kg 4.0kg 5.5kg
Insulation class(※1) A
Terminal screw M3
Applicable models of COOL CABI OCA-H/S300BC
OCA-H/S300BCS
OCA-H/S300AC
OCA-H350BCD
OCA-H/S600BC
OCA-H/S700AC
OCA-H700BCD
OCA-H/S1000BC
OCA-H/S1100AC
OCA-H1300BCD
OCA-H/S1600BC
OCA-H/S1700AC

Model TR-CC300-100V TR-CC600-100V TR-CC1000-100V TR-CC1600-100V
Primary side(50/60Hz) 100V
Secondary side(50/60Hz) 200V
Capacity 500VA 750VA 1kVA 1.5kVA
Weight 6.7kg 8.0kg 9.5kg 13.0kg
Insulation class(※1) A
Terminal screw M3 M4
Applicable models of COOL CABI OCA-H/S300BC
OCA-H/S300BCS
OCA-H/S300AC
OCA-H350BCD
OCA-H/S600BC
OCA-H/S700AC
OCA-H700BCD
OCA-H/S1000BC
OCA-H/S1100AC
OCA-H1300BCD
OCA-H/S1600BC
OCA-H/S1700AC

Model TR-CC300-115V TR-CC600-115V TR-CC1000-115V TR-CC1600-115V
Primary side(50/60Hz) 115V
Secondary side(50/60Hz) 200V
Capacity 500VA 750VA 1kVA 1.5kVA
Weight 6.7kg 6.5kg 9.5kg 12.0kg
Insulation class(※1) A
Terminal screw M3 M4
Applicable models of COOL CABI OCA-H/S300BC
OCA-H/S300BCS
OCA-H/S300AC
OCA-H350BCD
OCA-H/S600BC
OCA-H/S700AC
OCA-H700BCD
OCA-H/S1000BC
OCA-H/S1100AC
OCA-H300BCD
OCA-H/S1600BC
OCA-H/S1700AC
(※1)Classified by Japanese Industrial Standard JIS C 5310

Three-phase transformer(Auto transformer)Model/Specification

Model TR-CC2200-220V TR-CC2900-220V TR-CC2200-230V TR-CC2900-230V
Primary side(50/60Hz) 220V 230V
Secondary side(50/60Hz) 200V 200V
Capacity 2.5KVA 3KVA 2.5KVA 3KVA
Weight 8.0kg 10.0kg
Insulation class(※1) A
Terminal screw M4
Applicable models of COOL CABI OCA-H/S2200BC
OCA-H/S2300AC
OCA-H2300BCD
OCA-H/S2900BC
OCA-H3000AC
OCA-H/S2200BC
OCA-H/S2300AC
OCA-H2300BCD
OCA-H/S2900BC
OCA-H3000AC
(※1)Classified by Japanese Industrial Standard JIS C 5310

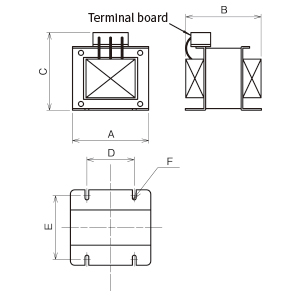

Dimensional drawing

外形寸法(mm)図

Model A B C D E F (slotted hole)
TR-CC300-220V 86 105 110 60 60 Ø4.5
TR-CC600-220V 86 120 110 60 75 Ø4.5
TR-CC1000-220V 97 115 120 70 70 Ø4.5
TR-CC1600-220V 106 125 126 80 80 Ø4.5
TR-CC300-230V 86 120 110 60 75 Ø4.5
TR-CC600-230V 97 115 120 70 70 Ø4.5
TR-CC1000-230V 106 125 126 80 80 Ø4.5
TR-CC1600-230V 115 130 135 85 85 Ø6.5
TR-CC300-100V 115 145 135 85 100 Ø6.5
TR-CC600-100V 133 150 150 95 100 Ø6.5
TR-CC1000-100V 152 150 170 100 105 Ø8.0
TR-CC1600-100V 152 180 170 100 130 Ø8.0
TR-CC300-115V 115 145 135 85 100 Ø6.5
TR-CC600-115V 133 130 150 95 85 Ø6.5
TR-CC1000-115V 152 150 170 100 105 Ø8.0
TR-CC1600-115V 152 165 170 100 120 Ø8.0
TR-CC2200-220V 210 120 190 120 65 Ø7.0
TR-CC2900-220V 210 120 190 120 65 Ø7.0
TR-CC2200-230V 210 140 190 120 85 Ø7.0
TR-CC2900-230V 210 140 190 120 85 Ø7.0
