OA-QW without connection guide


For insulation and protection from water at various splicing parts or in place of junction boxes for wiring on sensors or limit switches

OA-QWシリーズ接続ガイドなし

Features

Protection category Color Rated voltage Oilproof Weatherproof
IP67 Black 600V

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE
・Applications For waterproof insulation and relaying signal cables of sensors,limit switches, etc.

Model/Specifications

Oilproof type Rubber bushing : Black

Standard
Model Applicable cable diameter Weight
Q'ty per package Fixing bracket
Black L side R side
OA-QW09SN Ø4 - 9① Ø4 - 9① 25g 10 pcs. QW-H2
OA-QW11SN Ø8.5 - 11.5 Ø8.5 - 11.5 21g
OA-QW13SN Ø11 - 13 Ø11 - 13 20g
OA-QW0911SN Ø4 - 9① Ø8.5 - 11.5 23g
OA-QW0913SN Ø4 - 9① Ø11 - 13 22g
OA-QW1113SN Ø8.5 - 11.5 Ø11 - 13 20g
OA-QW16SN Ø8 - 16② Ø8 - 16② 59g 1 pc. -
OA-QW19SN Ø15 - 19 Ø15 - 19 47g
OA-QW1619SN Ø8 - 16② Ø15 - 19 53g
OA-QW20SN Ø13 - 20③ Ø13 - 20③ 91g
OA-QW23SN Ø19 - 23 Ø19 - 23 77g
OA-QW2023SN Ø13 - 20③ Ø19 - 23 84g
OA-QW30SN Ø15 - 30④ Ø15 - 30④ 155g
Long
Model Applicable cable diameter(mm) Weight
Q'ty per package Option
Black L side R side
OA-QWL09SN Ø4 - 9① Ø4 - 9① 31g 10 pcs. Fixing bracket
QW-H2

Conenction guide
QW-J1
QW-J2
QW-J3
OA-QWL11SN Ø8.5 - 11.5 Ø8.5 - 11.5 28g
OA-QWL13SN Ø11 - 13 Ø11 - 13 26g
OA-QWL0911SN Ø4 - 9① Ø8.5 - 11.5 30g
OA-QWL0913SN Ø4 - 9① Ø11 - 13 29g
OA-QWL1113SN Ø8.5 - 11.5 Ø11 - 13 27g
Common : Rated voltage 600V AC/DC, Working temperature -25 to +80℃

Weatherproof type Rubber bushing : Blue

Standard
Model Applicable cable diameter(mm) Weight
Q'ty per package Fixing bracket
Black L side R side
OA-QW09SEN Ø4 - 9① Ø4 - 9① 25g 10 pcs. QW-H2
OA-QW11SEN Ø8.5 - 11.5 Ø8.5 - 11.5 21g
OA-QW13SEN Ø11 - 13 Ø11 - 13 20g
OA-QW0911SEN Ø4 - 9① Ø8.5 - 11.5 23g
OA-QW0913SEN Ø4 - 9① Ø11 - 13 22g
OA-QW1113SEN Ø8.5 - 11.5 Ø11 - 13 20g
OA-QW16SEN Ø8 - 16② Ø8 - 16② 59g 1 pc. -
OA-QW19SEN Ø15 - 19 Ø15 - 19 47g
OA-QW1619SEN Ø8 - 16② Ø15 - 19 53g
OA-QW20SEN Ø13 - 20③ Ø13 - 20③ 91g
OA-QW23SEN Ø19 - 23 Ø19 - 23 77g
OA-QW2023SEN Ø13 - 20③ Ø19 - 23 84g
OA-QW30SEN Ø15 - 30④ Ø15 - 30④ 155g
Long
Model Applicable cable diameter(mm) Weight
Q'ty per package Option
Black L side R side
OA-QWL09SEN Ø4 - 9① Ø4 - 9① 31g 10 pcs. Fixing bracket
QW-H2

Connection guide
QW-J1
QW-J2
QW-J3
OA-QWL11SEN Ø8.5 - 11.5 Ø8.5 - 11.5 28g
OA-QWL13SEN Ø11 - 13 Ø11 - 13 26g
OA-QWL0911SEN Ø4 - 9① Ø8.5 - 11.5 30g
OA-QWL0913SEN Ø4 - 9① Ø11 - 13 29g
OA-QWL1113SEN Ø8.5 - 11.5 Ø11 - 13 27g
Common : Rated voltage 600V AC/DC, Working temperature -25 to +80℃
Note : The applicable cable size marked with ①, ②, ③ or ④ changes by combination of the rubber bushings.

ゴムブッシュ組み合わせ

Applicable cable diameter (mm)
Rubber bushing A+B Ø4 - 6 Ø8 - 11 Ø13 - 16 Ø15 - 23
Rubber bushing A only Ø6 - 9 Ø11 - 16 Ø16 - 20 Ø22 - 30

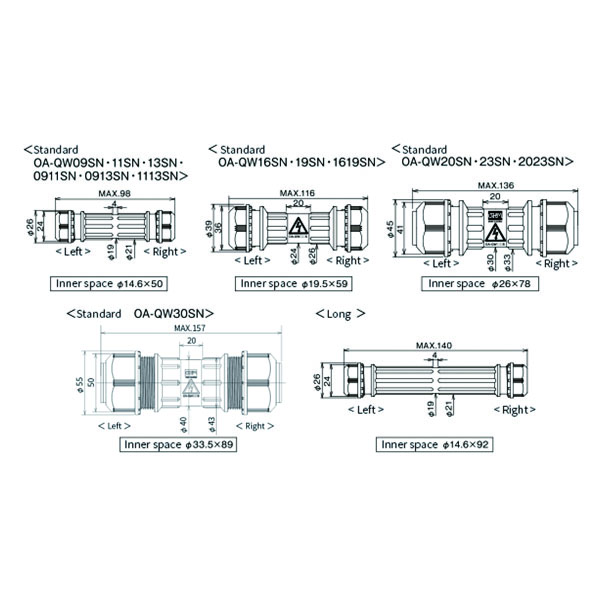

Dimensional drawing

外形寸法図

Materials

材質

Instructions

<For models other than OA-QW20SN, 23SN, 2023SN and 30SN>

各パーツを通し、電線を固定する。

•Insert the cable ends into each part of OA-QW from both sides and make connection. Then, tighten the dome nut at each end to secure the cables.

接続ガイドの配線について

【Wiring with Connection guide】

<For OA-QW20SN, 23SN, 2023SN and 30SN>

各パーツを通し、電線を固定する。

Pass cable through each part of OA-QW.

締付キャップを締付け、電線を固定する。

Tighten the dome nuts at each end to secure the cables.

  • Use only one cable for one hole.
  • Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
  • Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
  • Product performance are not guaranteed for cables other than the applicable size or round cables.
  • Option

    Rubber bushing

    ゴムブッシュ

    Fixing bracket

    固定具

    Connection guide

    接続ガイド

    Cautions

    *Do not step foot or put load on the product. Do not paint the product.
    *Do not use this product in oil or water.
    *To prevent deterioration, avoid using or storing this product under the following atmospheres.
    1. Outside the range of working humidity and temperature
    2. Water vapor contained or high temperature/humidity air
    3. Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
    For any other special environmental conditions, please contact us before use.
    • For Oilproof Type (Rubber color : black)
      Do not expose to direct and continuous sunlight.
      Suitable for oily environments.
      *For non-oily places, use Weatherproof type.
    • For Weatherproof Type (Rubber color : blue)
      Avoid using in oily environments.
      For non-oily indoor places, Weatherproof type is recommended.
