Option Connection guide
Connection guide for OA-QW products
Certificates/Approvals
| EU RoHS2 | China RoHS | TSCA | CE | UL | CSA | PSE |
Model/Specifications

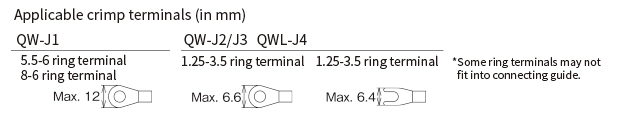

| Model | Applicable crimp terminals* | Weight |
Q'ty per package | |
| QW-J1 | Single core cable | 5.5-6 (ring terminal) 8-6 (ring terminal) Max.12 |
9g | 10 pcs. |
| QW-J2 | 2 core cable | 1.25-3.5 (ring terminal) Max.6.6 1.25-3.5 (fork terminal) Max.6.4 |
4g | |
| QW-J3 | 3 core cable | 6g | ||
| QWL-J4 | 4 core cable | 11g | ||

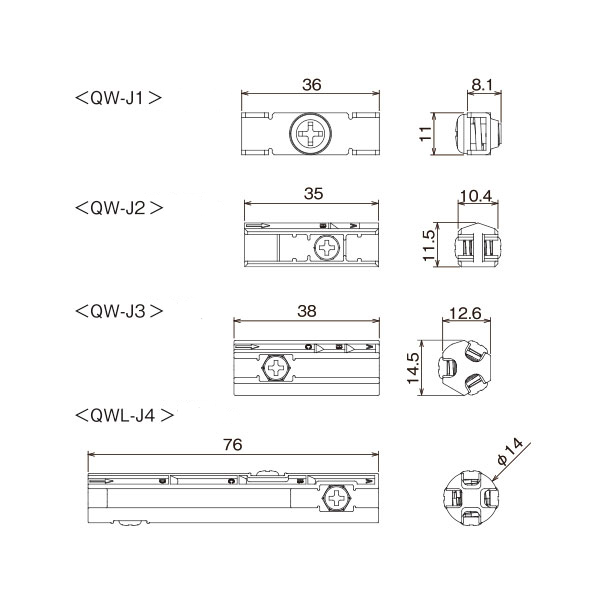

Dimensional drawing
Materials
QW-J1
Body : Brass (Nickel-plating)
Terminal screw : Steel (Trivalent chromium plating)
QW-J2/QW-J3/QWL-J4
Body : Nylon 66
Terminal screw, nut : Steel (Trivalent chromium plating)
Body : Brass (Nickel-plating)
Terminal screw : Steel (Trivalent chromium plating)
QW-J2/QW-J3/QWL-J4
Body : Nylon 66
Terminal screw, nut : Steel (Trivalent chromium plating)
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
