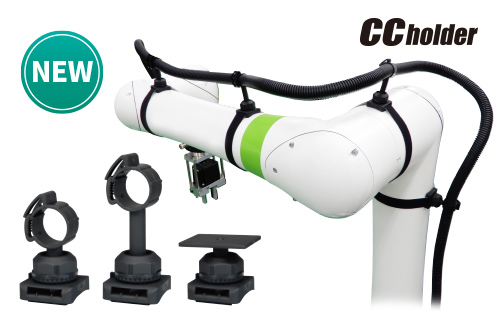

Cable holder for robots - CC Holder
Release on November 12, 2021
Lightens dynamic load on cables and air hoses in robot motion!
Diameter variable holder moves flexibly so as to reduce dynamic load. OHM launched the Ideal cable holder "CC Holder" for robots!
These holders can be fixed with band in different ways. No worry about displacement. Choose the one best-suited to your application from three designs.
Diameter variable holder moves flexibly so as to reduce dynamic load. OHM launched the Ideal cable holder "CC Holder" for robots!
These holders can be fixed with band in different ways. No worry about displacement. Choose the one best-suited to your application from three designs.
Full of functions! Lightens load caused by bending or twisting movements of a robot

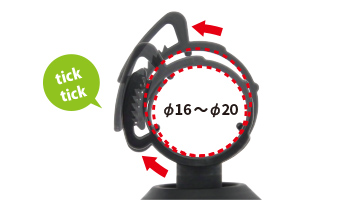

| Holding diameter is variable to fit different size of objects |

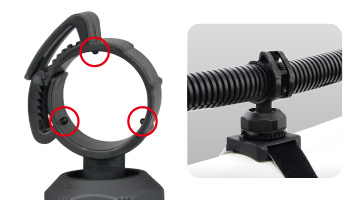

| Projections inside holder secure the tube |
| Simply release the holder with a screwdriver |
| Holder moves flexibly |

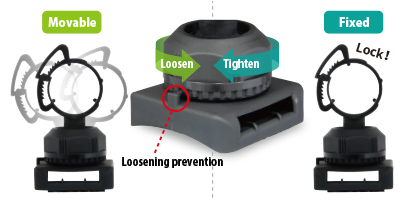

| Holder state changes by rotating dome nut |

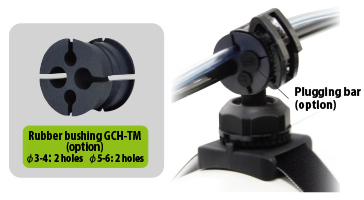

| Optional rubber bushing for cables and tubes |

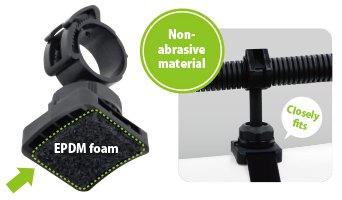

| Positional shift preventing anti-slip packing |

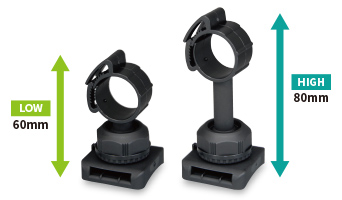

| Available from two different heights |

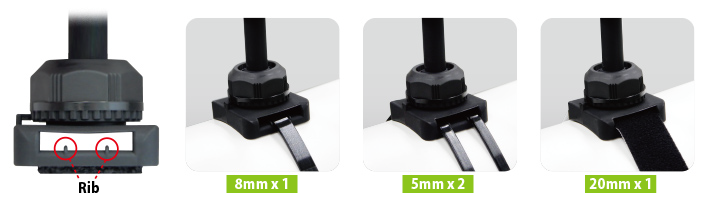

| Positional shift prevention rib that allows banding in multiple ways |

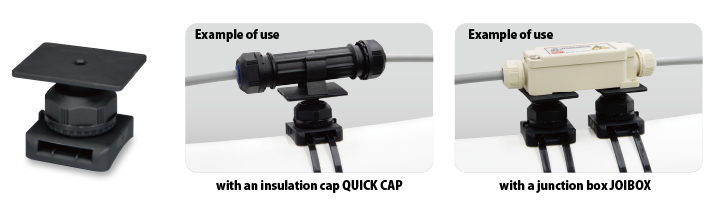

| Plate type enables direct mounting of junction boxes and other parts |
Lineup
| Model | Diameter of gripped part |
Installation | Holder/Stand design | Working temp. | Color | Weight | Q'ty per pack |
| NEW CH-TM1 | Ø 80 | Fixed with banding bands |
Ø 20 ring-shaped |
-25 to +80℃ | Black | 15g | 5 pcs. |
| NEW CH-TM2 | 16g | ||||||
| NEW CH-TM3 | Flat plate with a pilot hole for M4 tapping |
14g |
