CLEAN BOOTH SYSTEM
|EU RoHS||China RoHS||CE||UL||CSA||PSE|

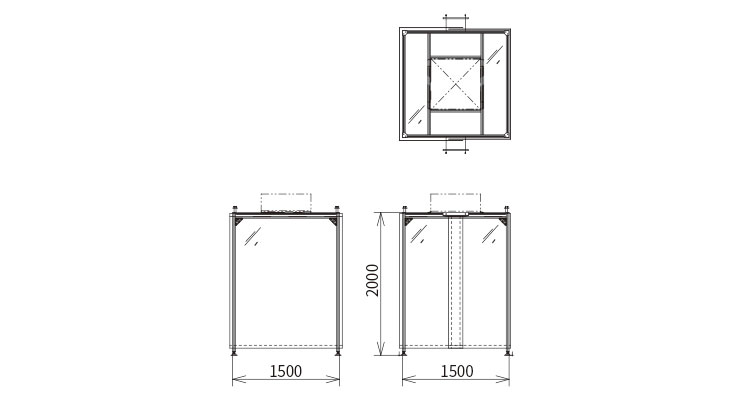

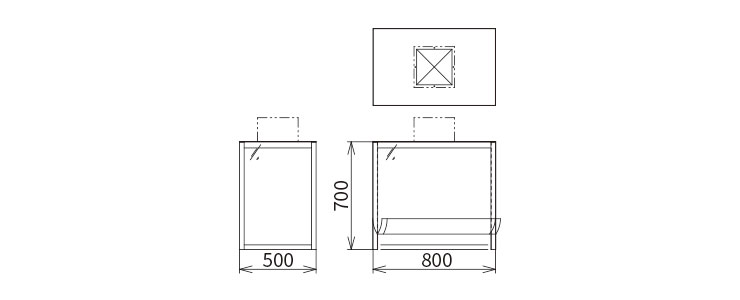

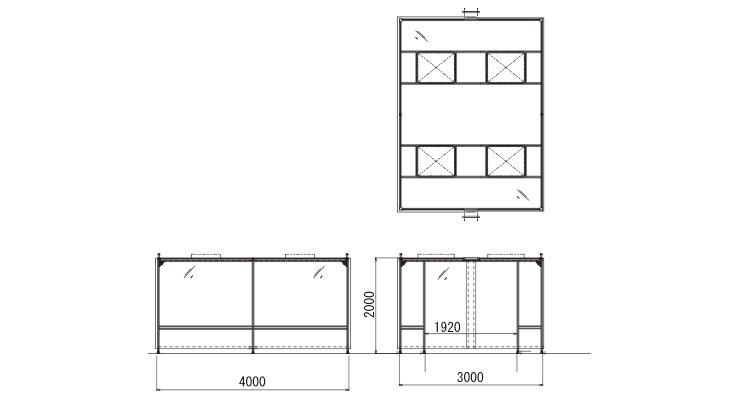

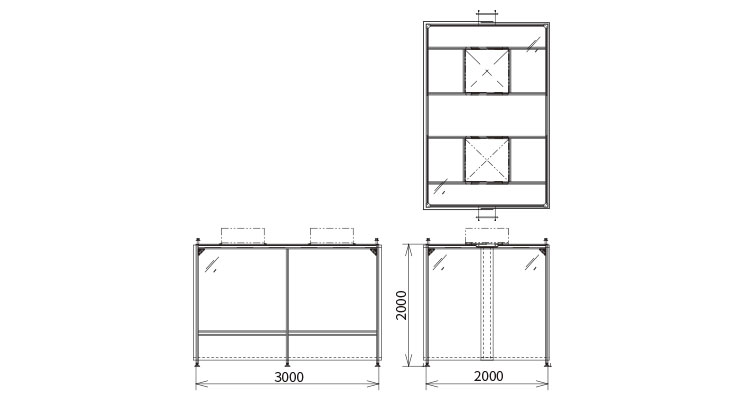

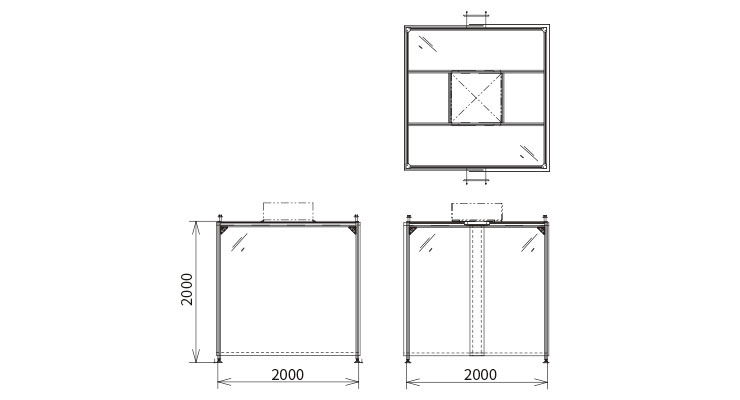

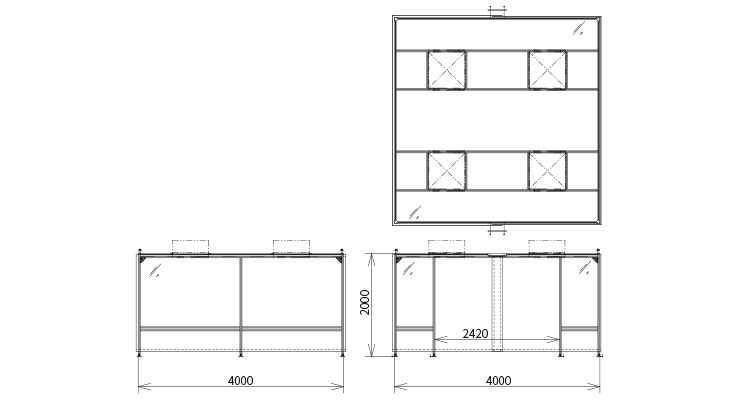

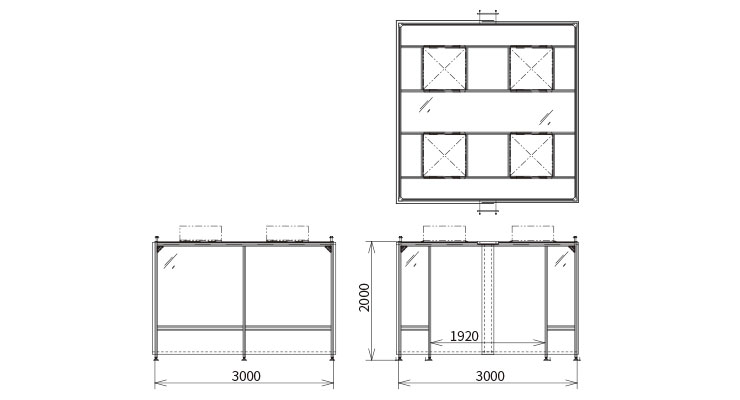

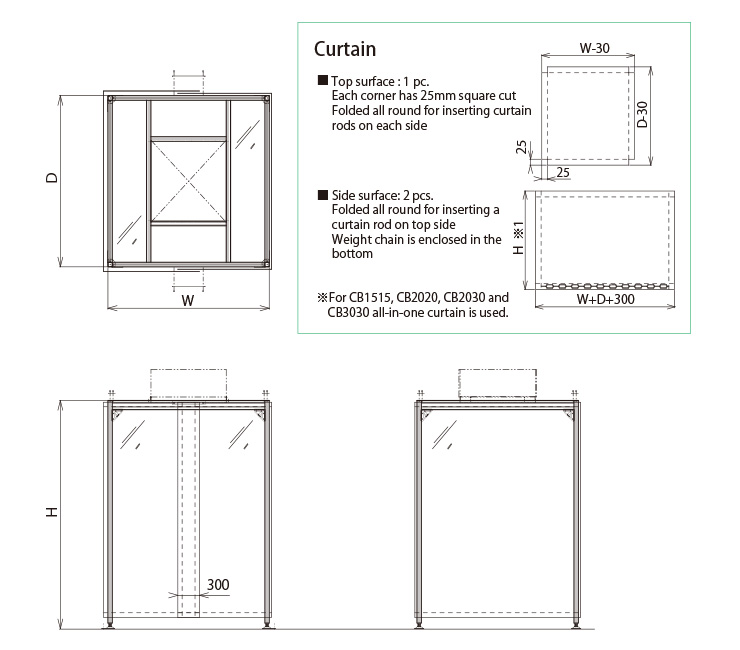

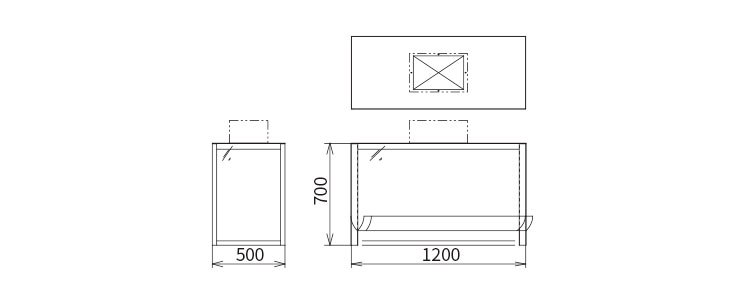

Clean Booth System basic design
Beam : F48L(40x80), F44L

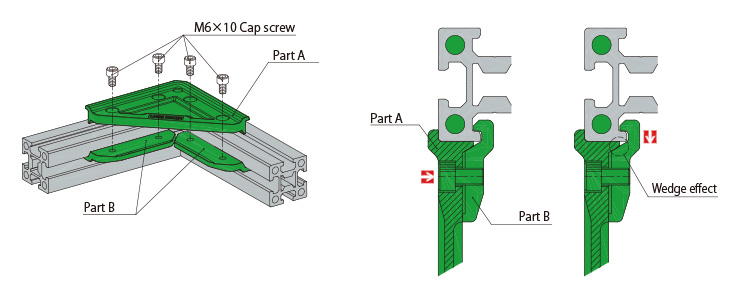

Corner stay (SA40), 8pcs.
End cap (EP44), 4 pcs.
Adjuster foot (AK16) x number of vertical pillars
Frame joint member
For top surface, 1 pc.
Fixing SUS plate for side surface, 2 pcs.
Fixing SUS plate for top surface, 4 pcs.
M4×10 truss head screw, 12 pcs.
F nut（NF40-M4), 12 pcs.
Aluminum rod Ø6 (for securing curtain)
Other FFUs are also mountable
・Fix the booth by inserting anchor bolts to the fixing holes of 14mm dia. provided in the adjuster feet.
・The top curtain is not processed for a cut for mounting a FFU. Cut the curtain to fit the FFU on site.
・The gap between the curtain and the ground is from 50mm to 100mm depending on the degree of cleanness.
・Opening dimensions for installation of FFU can be optionally specified. Please consult us.

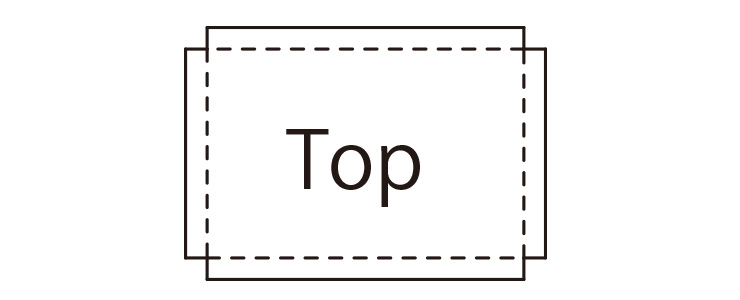

・0.3 mm thick ・Antistatic processed ・Fire proofing class 2 (JIS A-1322) ・Folded on all four sides

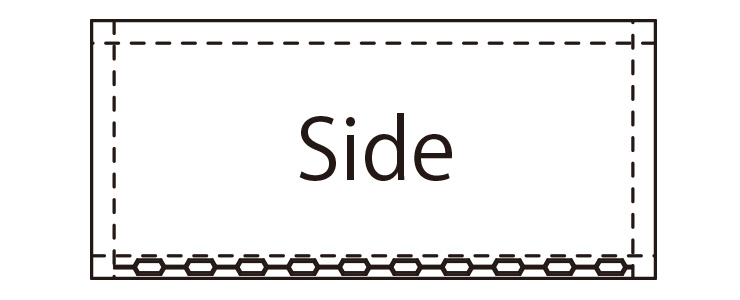

・Weight chain enclosed in the bottom (side curtains only) ・Transparent ・Material : Soft vinyl chloride
Allowable load per beam (F48L-Y Free end, centralized load)
|Length (mm)||Up to 2000||2001 to 2999||3000 to 4000|
(Max. deflection 6mm)
(Max. deflection 12mm)
(*Arrangement and the above values change when wheels are used instead of adjuster feet)
*Although all components have been cleaned before shipment, clean them again when bringing them into a clean room.
*Do not put other loads than FFUs on the top surface.
*Anchor the booth to the floor after installation.
・FFUs are easily detachable for maintenance

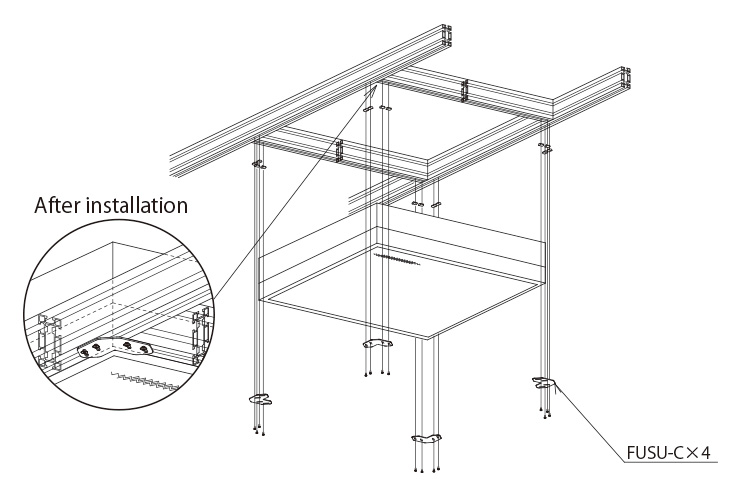

・Installation is easy even where the clearance from the booth top to the ceiling is very low.

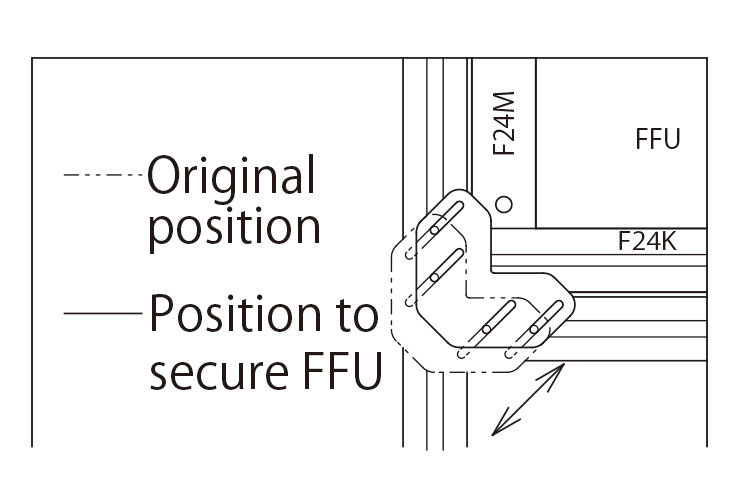

Slide the FUSU-C2s to the position.
Put the frame of HEPA filter on the FUSU-C2s.

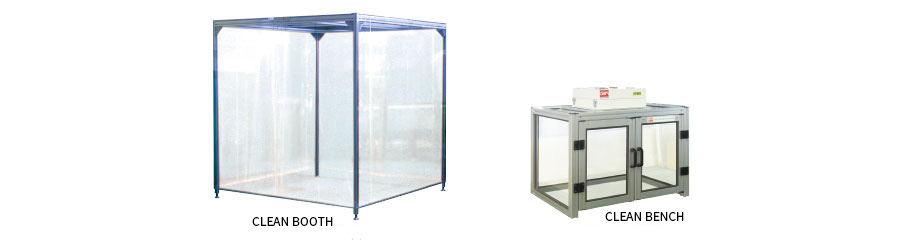

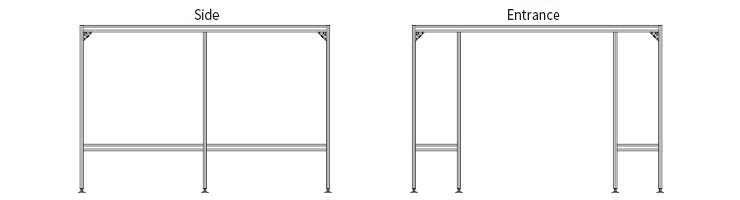

Components of Standard CLEAN BOOTH
Frames, curtains and securing members
Adjuster feet can be changed to wheels on request.
What is LECO Frame?
It has been designed focusing on man-hour reduction.
Just insert and tighten the frame members to assemble.
LECO Frame offers an optimum solution with its easy and quick assembly work as well as sophisticated appearance.

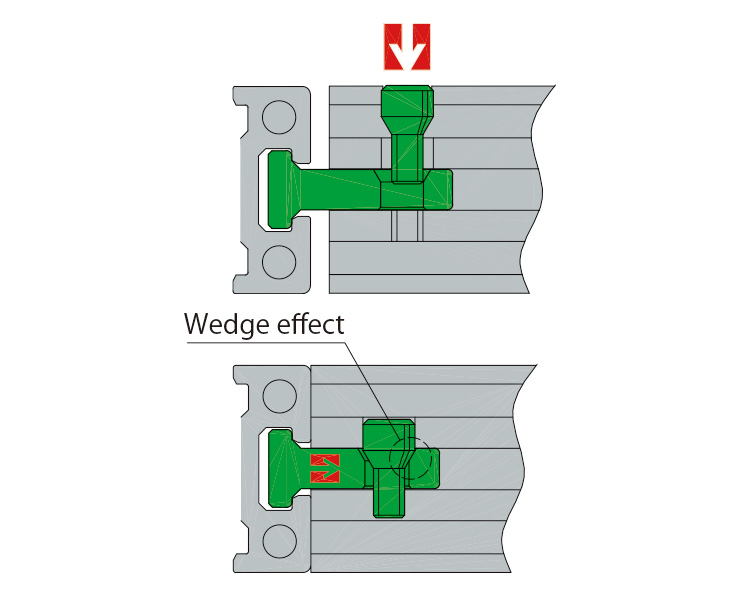

How to joint the frame with T-locks and tapered bolts
Tighten the taper bolt.
T-Lock is drawn in.
1. Insert the frame.
2. Place a tapered bolt.
3. Tighten the tapered bolt.

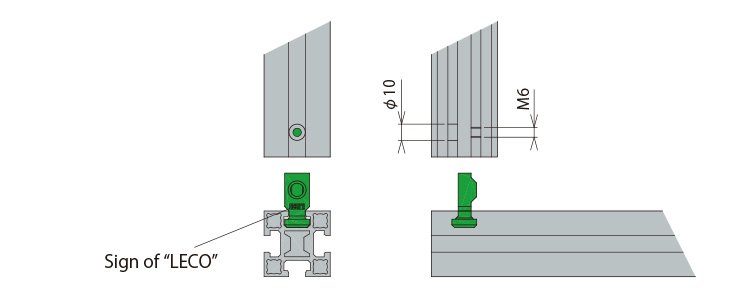

T-Lock has an orientation. Insert a frame so as the sign of “LECO” faces to Ø 10 side and tighten a tapered bolt.
For prevention of injury, it is recommended to fit an end cap when a frame edge is exposed to outside.

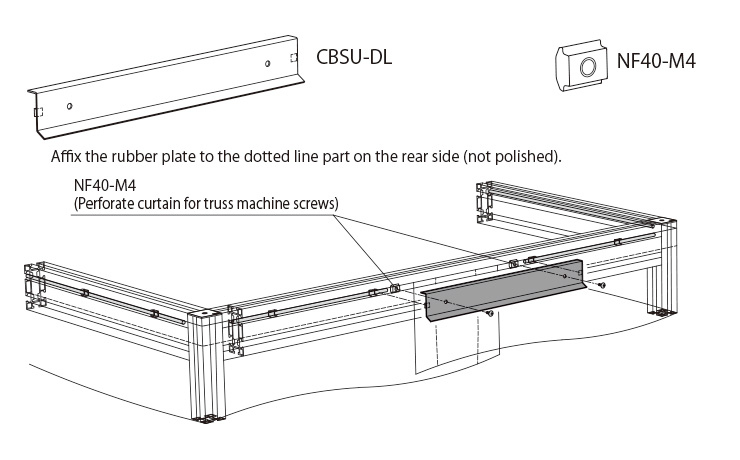

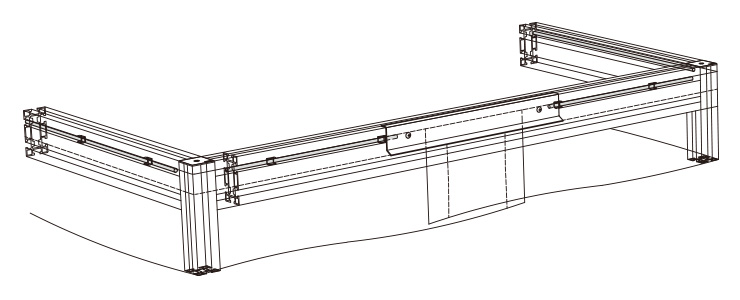

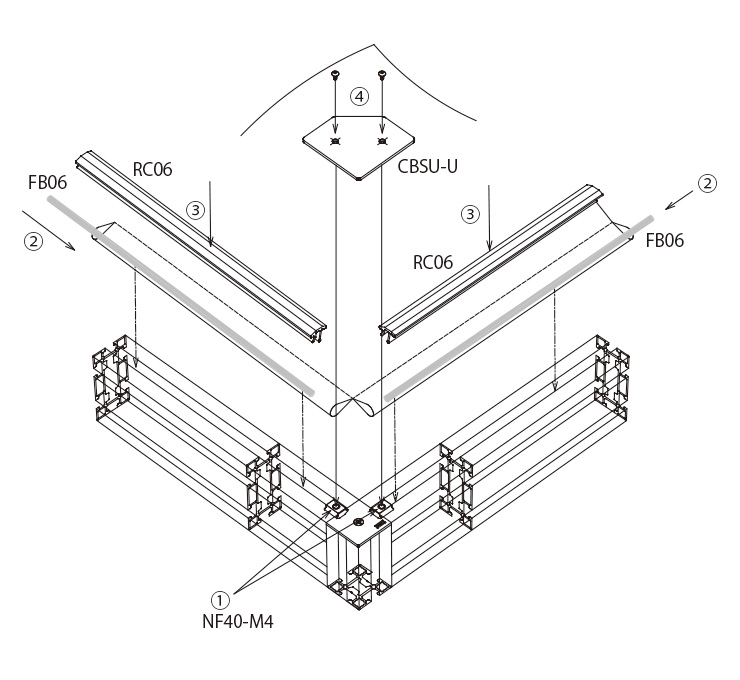

Fitting of curtain
*Place RC06 at 35mm from the ditch end. (See "How to insert RC06")
Fix the each of four corners by fitting a retainer plate CBSU-U.

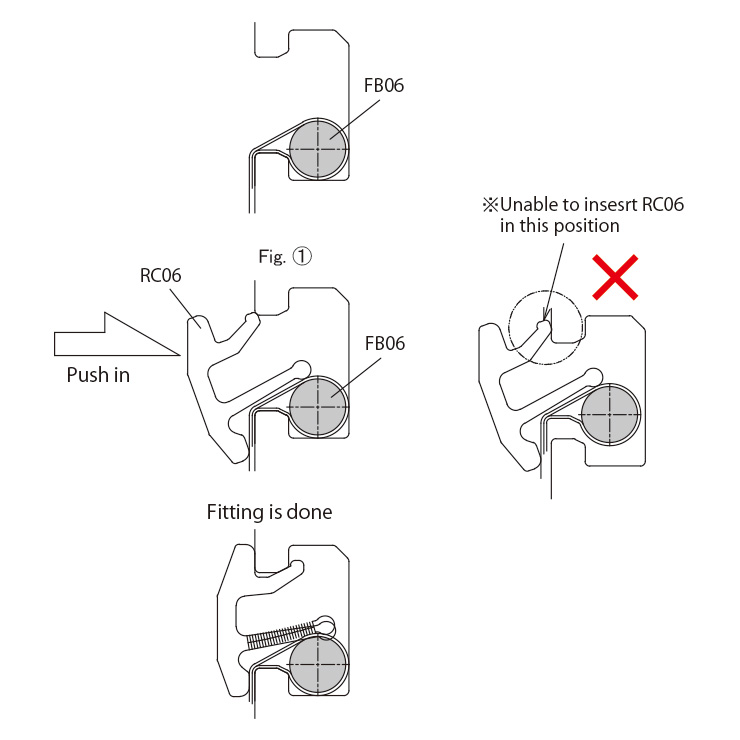

How to insert RC06
Push the curtain with the inserted FB06 into the groove.
Place RC06 so as to press down the FB06 by its longer rib.
One person pushes the RC06 in and the other person support the RC06 and the FB06 so as to keep the position illustrated in Fig. ①.
*To push in, the FB06 has to be positioned as illustrated in the Fig. ①.
【When FB06 cannot be easily pushed in】
Gently tap it with a plastic hammer or the like.
