Plugging Bar
To close unused holes of rubber bushing, to waterproof and plug spare holes or cable entry holes

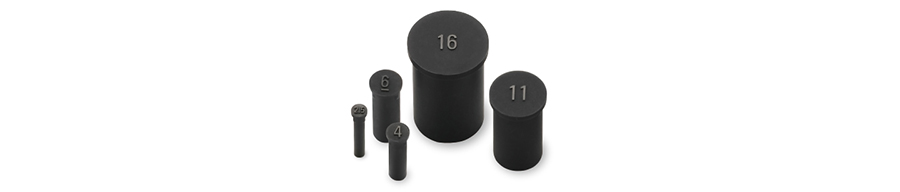

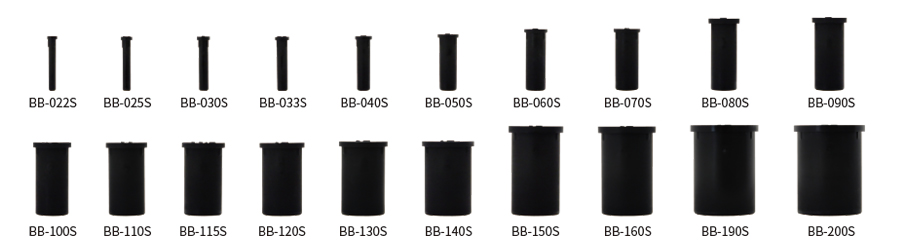

Model/Specifications
| model | Applicable hole diameter | Weight | Q'ty per package |
| BB-022S | Ø 2.2 | 0.5g | 10 pcs |
| BB-025S | Ø 2.5 | ||
| BB-030S | Ø 2.0 | ||
| BB-033S | Ø 3.3 | ||
| BB-040S | Ø 4.0 | ||
| BB-050S | Ø 5.0 | ||
| BB-060S | Ø 6.0 | 1.0g | |
| BB-070S | Ø 7.0 | ||
| BB-080S | Ø 8.0 | ||
| BB-090S | Ø 9.0 | 2.0g | |
| BB-100S | Ø 10.0 | ||
| BB-110S | Ø 11.0 | ||
| BB-115S | Ø 11.5 | ||
| BB-120S | Ø 12.0 | ||
| BB-130S | Ø 13.0 | ||
| BB-140S | Ø 14.0 | ||
| BB-150S | Ø 15.0 | 3.0g | |
| BB-160S | Ø 16.0 | 4.0g | |
| BB-190S | Ø 19.0 | ||
| BB-200S | Ø 20.0 |
【Common specifications】 Working temperature: -25 to +80℃ Material: Nylon 66 (Flammability UL94V-2)

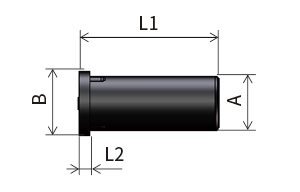

Dimensional drawing
| Model | Dimension（mm） | |||
| A | B | L1 | L2 | |
| BB-022S | 2.2 | 3 | 16 | 1 |
| BB-025S | 2.5 | 3.5 | ||
| BB-030S | 3 | 4 | ||
| BB-033S | 3.3 | 4.3 | ||
| BB-040S | 4 | 5 | ||
| BB-050S | 5 | 6 | ||
| BB-060S | 6 | 7 | 18 | |
| BB-070S | 7 | 8 | ||
| BB-080S | 8 | 9.5 | 21.5 | 1.5 |
| BB-090S | 9 | 10.5 | ||
| BB-100S | 10 | 11.5 | ||
| BB-110S | 11 | 12.5 | ||
| BB-115S | 11.5 | 13 | ||
| BB-120S | 12 | 13.5 | ||
| BB-130S | 13 | 14.5 | ||
| BB-140S | 14 | 15.5 | ||
| BB-150S | 15 | 17 | 27 | 2 |
| BB-160S | 16 | 18 | ||
| BB-190S | 19 | 21 | ||
| BB-200S | 20 | 22 | ||
Applicable models (as of November, 2021)
The table below shows the representative model (Product body color : Black, Oilproof).
Other product body colors (Light gray, Beige) also respond oilproof and weatherproof.
Other product body colors (Light gray, Beige) also respond oilproof and weatherproof.
| Model | Rubber bushing | CAPCON | QUICK CAP | JOIBOX |
| BB-022S | G08-224 | OA-W16-224 | ||
| BB-025S | OA-WS04M-20/25 | |||
| BB-030S | G15M-302 | OA-W15M-302 | JB-WST303（Accessories） | |
| BB-033S | G11-334 G13-334 |
OA-W16-334 OA-W16-0334RS |
OA-QWL09334S-4 OA-QW09334SRSN OA-QW11334SRSN |
JB-WST306 |
| BB-040S | G15M-04 G11-402 G13-404 |
OA-W15M-04 OA-W16-402 OA-W16-404 OA-W16-0404RS OA-WS06M-25/40 |
OA-QWL09404S-4 OA-QW09404SRSN OA-QW11404SRSN |
JB-W305・JB-W307・JB-W311 JB-WST303（Accessories） JB-WST304 JB-WS303（Accessories） JB-WS304 JB-W44（Accessories） |
| BB-050S | G15M-05 G13-503 |
OA-W15M-05 OA-W16-503 OA-W16-0503RS OA-WS07M-35/50 |
JB-WST303 JB-WS303・JB-WS307 |
|
| BB-060S | G08-06 G11-09※ G13-09※ G13-09B G13-602 G22-604 |
OA-W1606 OA-W16-602 OA-W22-604 OA-W16-0901RS※ OA-W22-0604RS OA-WS08M-45/60 |
OA-QW09S※・OA-QW0911S※ OA-QW09S-2※・OA-QW0911S-2※ OA-QW09S-3※・OA-QW0911S-3※ OA-QW0913S-3※・OA-QWL09S-4※ OA-QWL0911S-4※・OA-QWL0913S-4※ OA-QWL09334S-4※・ OA-QWL09404S-4※ OA-QW09SN※・ OA-QW0911SN※ OA-QW0913SN※・ OA-QWL09SN※ OA-QWL0911SN※・OA-QWL0913SN※ OA-QW09SRSN※・ OA-QW0911SRSN※ OA-QW09334SRSN・ OA-QW09404SRSN※ OA-QWH16-08SRSN※ |
JB-WST304（Accessories）※ JB-WST306（Accessories）※ JB-WS304（Accessories）※ JB-W44※ |
| BB-070S | G15M-07 G22-704 |
OA-W15M-07 OA-W22-704 OA-WS09M-55/70 |
JB-WST303 JB-WS303・JB-WS307 JB-WSB028070 |
|
| BB-080S | G08-08 | OA-W1608 OA-W22-0801RS OA-WS10M-65/80 |
OA-QW22-0801SRSN | |
| BB-090S | G11-09A G13-09A |
OA-W1609 OA-W1609-13L OA-WS10M-65/80 |
JB-W305・JB-W307（Accessories） JB-W311（Accessories）・JB-WST304 JB-WST306・JB-WS304 JB-W44（Accessories） JB-WSB034070・JB-WSB049070 |
|
| BB-100S | OA-WS12M-85/100 | |||
| BB-110S | G11-11 G22-16※ G22-16B |
OA-W1611 OA-WS13M-95/110 |
OA-QW11S・OA-QW0911S OA-QW11S-2・OA-QW0911S-2 OA-QW16S※・OA-QW1619S※ OA-QW16SN※・ OA-QW1619SN※ |
JB-WST306 |
| BB-115S | G13-11 | OA-W16-1151RS OA-W1611-13L |
OA-QW11S-3・OA-QW0911S-3 OA-QW1113S-3・OA-QWL11S-4 OA-QWL0911S-4・OA-QWL1113S-4 OA-QW11SN・OA-QW0911SN OA-QW1113SN・OA-QWL11SN OA-QWL0911SN・OA-QWL1113SN OA-QW11SRSN・ OA-QW0911SRSN OA-QW11334SRSN・OA-QW11404SRSN |
JB-W311（Accessories） JB-W44 |
| BB-120S | OA-WW16-04/12 OA-WW20M-04/12 OA-WS14M-105/120 |
|||
| BB-130S | G13-13 | OA-W1613 OA-W2213 OA-W16-1301RS OA-W1613-13L |
OA-QW13S-3・OA-QW0913S-3 OA-QW1113S-3・OA-QWL13S-4 OA-QWL0913S-4・OA-QWL1113S-4 OA-QW13SN・OA-QW0913SN OA-QW1113SN・OA-QWL13SN OA-QWL0913SN・OA-QWL1113SN |
JB-W311（Accessories） JB-W44 |
| BB-140S | G13-14 | OA-W1614 OA-W1614-13L |
||
| BB-150S | OA-WW16-08/15 OA-WW20M-08/15 |
|||
| BB-160S | G22-16A | OA-W2216 | ||
| BB-190S | G22-19 | OA-W2219 | OA-QW19S・OA-QW1619S OA-QW19SN・OA-QW1619SN |
|
| BB-200S | OA-WW22-11/20 OA-WW25M-11/19 |
※Products set to insert rubber busing B. Follow the rubber bushing B's hole diameter.
Cautions
・CAPCON Metallic slim type interfere with anti falling lib but this does not affect product quality.
・Due to aging, cables in max. applicable diameter for each product may not be able to pass through after plugging bar is removed.
・Please consult us for models not listed on the table.
・Due to aging, cables in max. applicable diameter for each product may not be able to pass through after plugging bar is removed.
・Please consult us for models not listed on the table.
