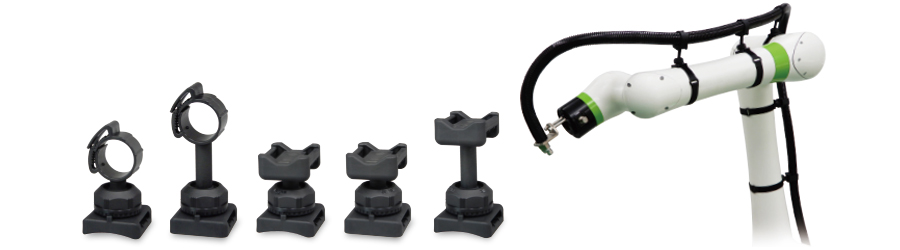

CH-TM for Robots
Lightens dynamic load on cables and hoses in robot motion
Features
- Different holder shapes meet a variety of objects
- Varied fitting base shapes to fit different locations
- Holder moves flexibly
- Holder state changes by turning dome nut
- Available from 2 different heights
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For reducing dynamic load on conduits and cables in robot motion
Model/Specifications
| Model | Installation | Holder/Stand design | Working temperature | Color | Weight | Q'ty/pack |
| CH-TM1 | Cable tie | Cable clip shape (φ20) | -25 to +80℃ | Black | 15g | 5 pcs. |
| CH-TM2 | 16g | |||||
| CH-TM3 | Stand shape (Flat plate with a pilot hole for M4 tapping) | 14g | ||||
| CH-TM4 | Cable mount shape (Any size) | 18g | ||||
| CH-TM5 | 19g | |||||
| CH-TMH1 | Cable tie or M6 screw | Cable clip shape (φ20) | 15g | |||
| CH-TMH2 | 16g | |||||
| CH-TMH3 | Stand shape (Flat plate with a pilot hole for M4 tapping) | 15g | ||||
| CH-TMH4 | Cable clip shape (φ20) | 18g | ||||
| CH-TMH5 | 19g |

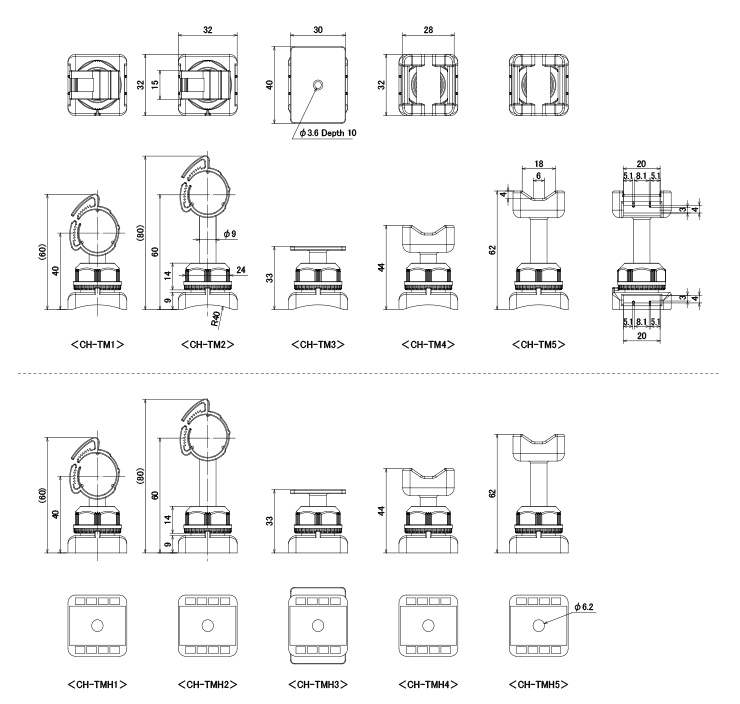

Dimensional drawing

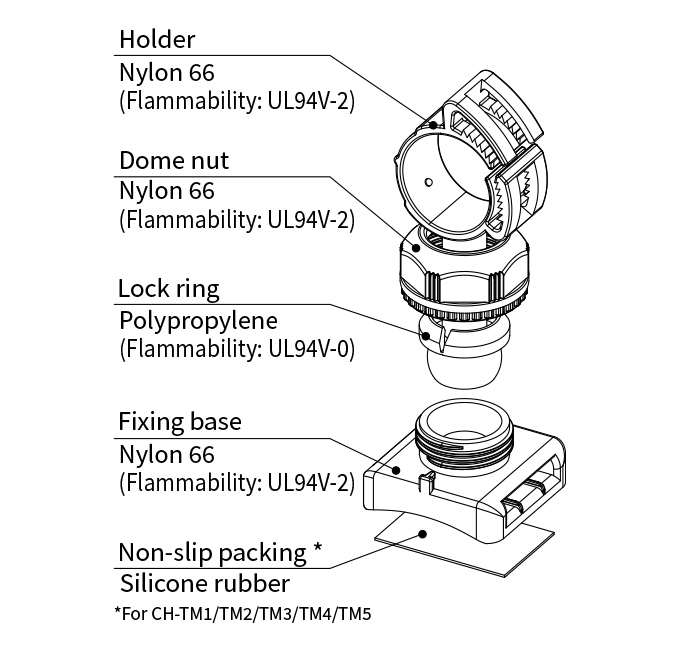

Materials

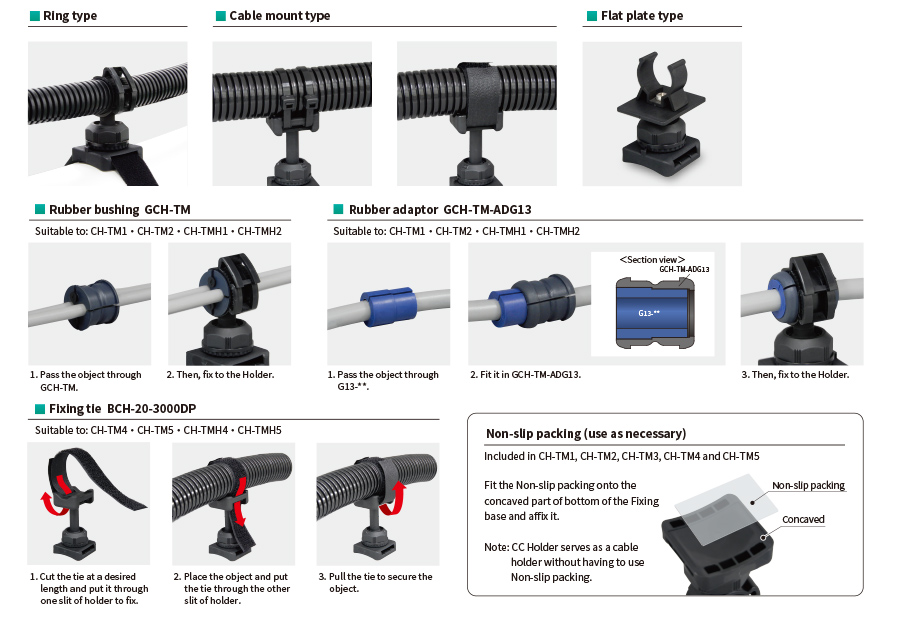

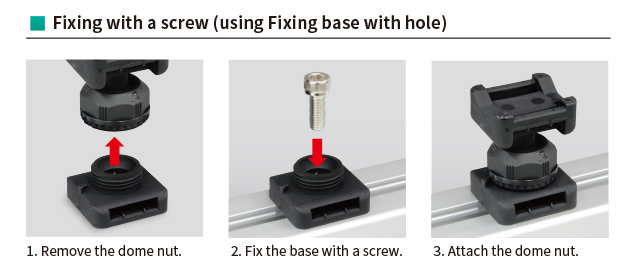

Instructions

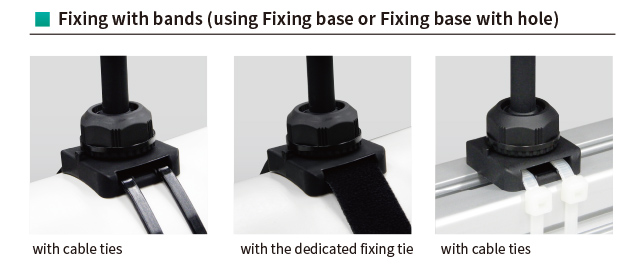

Attach the CC Holder.
Secure the object.

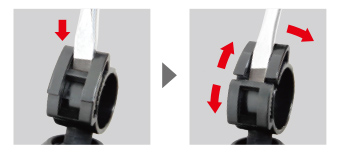

How to release the holder
Insert a screwdriver into the gap in the side of the holder and lift it up.
Set as ”Movable" or "Fixed"
Anchorage strength changes by the degree of tightening level of the dome nut.
Rubber bushing (option)

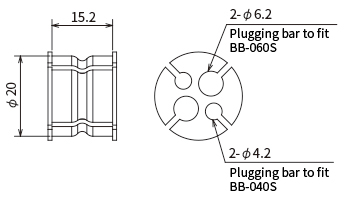

■ Dimensional drawing
| Model | Applicable cable dia. (mm) | No. of holes | CC Holder model | Color | Weight | Q'ty per pack |
| GCH-TM | Ø 3 to 4 (x 2) Ø 5 to 6 (x 2) |
4 | CH-TM1 CH-TM2 |
Black | 5g | 5 pcs. |
[Material] Silicone rubber
Plugging bar (Option)
■ Dimensional drawing
| Model | Hole diameter (mm) |
Weight | Q'ty per pack | Dimension (mm) | |||
| A | B | L1 | L2 | ||||
| BB-040S | 4.0 | 0.5g | 10 pcs. | 4 | 5 | 16 | 1 |
| BB-060S | 6.0 | 1.0g | 6 | 7 | 18 | ||
[Material] Nylon 66 (Flammability UL94V-2)

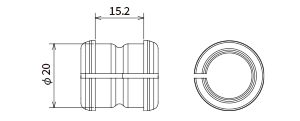

Rubber adaptor (Option)
| Model | Applicable rubber bushing | CC Holder models | Color | Weight | Q'ty per pack |
| GCH-TM-ADG13 | G13-** | CH-TM1, CH-TM2 CH-TMH1, CH-TMH2 |
Black | 5g | 5 pcs. |
[Material] Silicone rubber
■List of Rubber bushings Blue color: Weatherproof, Black color: Oilproof
| Model | Hole dia. (mm) | Type | Material | Weight | Q'ty per pack |
| G13-09RSE | Ø6 *1 | Weatherproof | EPDM | 5g | 10 pcs. |
| G13-09RS | Oilproof | NBR | |||
| G13-09ARSE | Ø9 | Weatherproof | EPDM | 4g | |
| G13-09ARS | Oilproof | NBR | |||
| G13-09BRSE | Ø6 *2 | Weatherproof | EPDM | 1g | |
| G13-09BRS | Oilproof | NBR | |||
| G13-11RSE | Ø11.5 | Weatherproof | EPDM | 3g | |
| G13-11RS | Oilproof | NBR | |||
| G13-13RSE | Ø13 | Weatherproof | EPDM | 2g | |
| G13-13RS | Oilproof | NBR | |||
| G13-334RSE | Ø3.3 x 4 | Weatherproof | EPDM | 4g | |
| G13-334RS | Oilproof | NBR | |||
| G13-404RSE | Ø4 x 4 | Weatherproof | EPDM | ||
| G13-404RS | Oilproof | NBR | |||
| G13-503RSE | Ø5 x 3 | Weatherproof | EPDM | ||
| G13-503RS | Oilproof | NBR |
*1: G13-09ARS(E) and G13-09BRS(E) are in a set. *2: Use these models by inserting into G13-09ARS(E).
Anti-slip loop for fixing tie（Option）
| Model | Applicable model | Color | Weight | Q'ty/ pack |
| BLCH-20 | BCH-20-370 BCH-20-510 BCH-20-710 BCH-20-3000DP |
Black | 2g | 10 pcs |
【Material】Silicone rubber

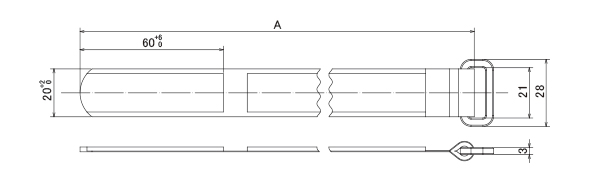

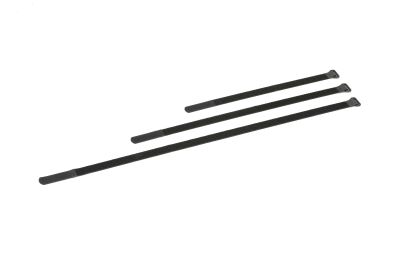

Fixing tie (Option)
■For Cable mount shape holders and Fixing bases
| Model | Width (mm) |
Hook & loop fastener length (mm) |
Range of use (mm) | Working temperature |
Color | Weight | Q'ty/pack | Dimension A (mm) |
|
| Diameter | Circle | ||||||||
| BCH-20-370 | 20 | 370 | 75 - 98 | 235 - 310 | -10 to 80℃ | Black | 4g | 5 pcs. | 370+15 |
| BCH-20-510 | 510 | 98 - 43 | 305 - 450 | 5g | 510+18 | ||||
| BCH-20-710 | 710 | 129 - 207 | 405 - 650 | 6g | 710+22 | ||||
[Material] Hook and loop fastener: Nylon, Buckle: Polyacetal

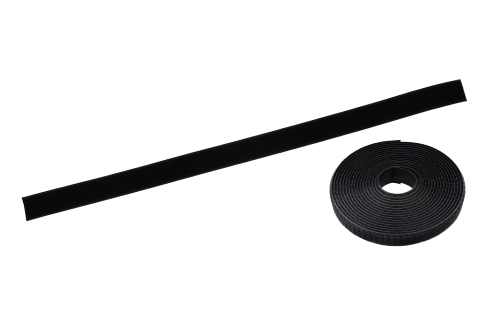

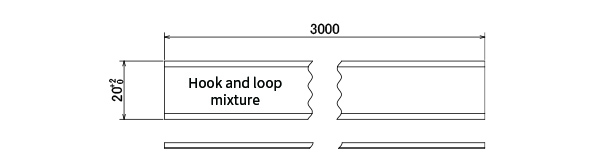

■For Cable mount shape holders
| Model | Width(mm) | Length(mm) | Working temperature |
Color | Weight | Q'ty/pack |
| BCH-20-3000DP | 20 | 3000※ | -10 to +80℃ | Black | 22g | 1 pc |
※This can be cut to fit the length of the object

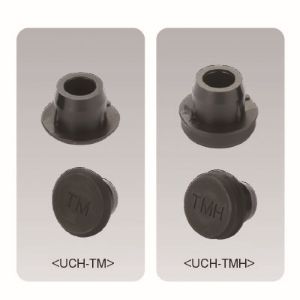

Stabilizing adapter (Option)

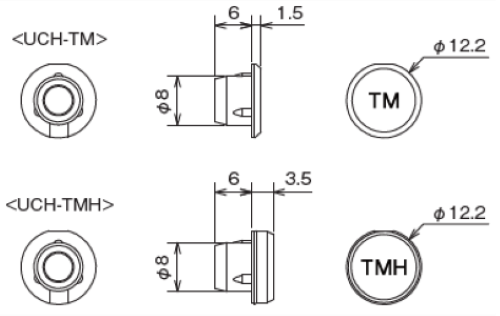

Dimensional drawing
| Model | Applicable product | Color | Weight | Q'ty/package |
| UCH-TM |
TM-1 TM-2 TM-3 TM-4 TM-5 |
Black | 0.5g | 5 pcs |
| UCH-TMH | TMH-1 TMH-2 TMH-3 TMH-4 TMH-5 |
1g |
Instructions
1. Remove the dome nut
2. Attach the stabilizing adapter
3. Attach the dome nut※Be careful not to drop the adapter
Cautions
・Do not expose this product to external forces. Do not paint.
・Do not disassemble this product.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
・Do not disassemble this product.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air.
