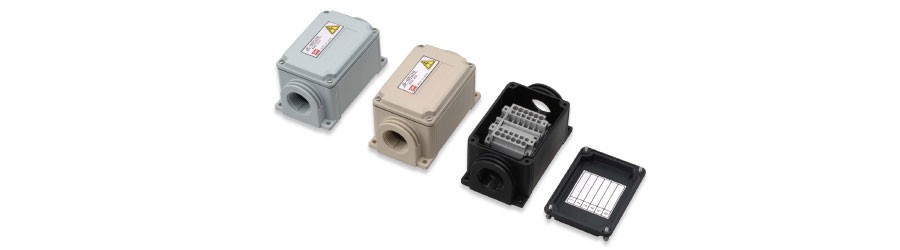

JB-W series Female threaded, Spring terminal block integrated
|Protection category||Color||Rated voltage||Rated current||Oilproof||Weatherproof||Number of terminals|
|EU RoHS2||China RoHS||CE||UL||CSA||PSE|
|Model||Rated voltage||Number of terminals||Weight
|Q'ty per package|
Model：ST 2.5 by Phoenix Contact
*1 Weight values are for Black color.
Clamp or Connector selection parameter

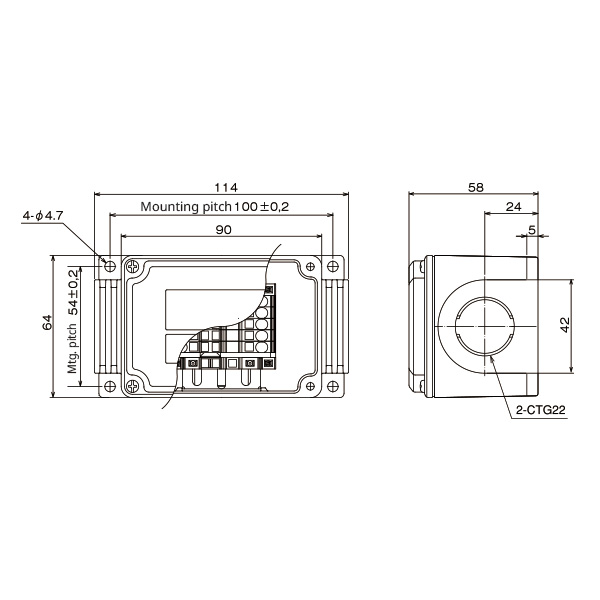

|Connector diameter||Ø42mm or less|

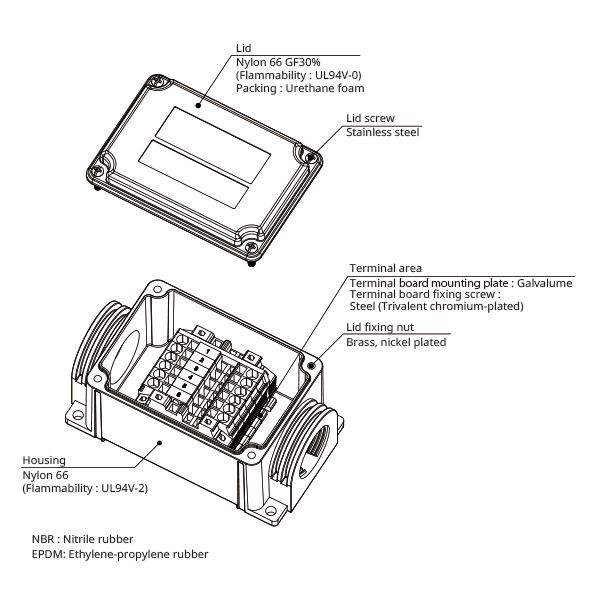

JB-WR226 is equipped with a terminal board type ST2.5 by Phoenix ContactJB-WR226
Attach an appropriate cable gland or a connector at the port in accordance with the manufacturer’s instruction.
【Cautions】Use the cable gland or the connector properly as instructed in order to assure its intended liquid tightness.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
- For Oilproof Type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments
*For non-oily places, use Weatherproof type.
- For Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places, Weatherproof type is recommended.
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
- Do not place the JOIBOX so as the cable entry is in an upward direction.
- When the cable is drawn from higher position, provide a water trap or a horizontal portion.
