Liquidtight cable gland CAPCON Metallic Slim
Release on November 12, 2021

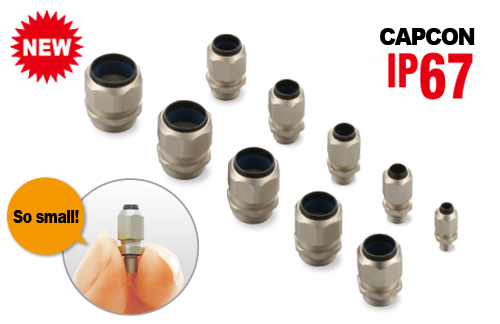

Lineup expanded to 10 sizes!
Industry's smallest body with stylish design.
Newly 4 different sizes are added to the lineup of
metallic slim type CAPCON. Best suited to narrow
spaces like LED illumination or small motors.
Applicable cable range now covers from 2mm to
12mm diameters! Available from oilproof and weatherproof
types. Choose the best one to your particular application.
Industry's smallest body with stylish design.
Newly 4 different sizes are added to the lineup of
metallic slim type CAPCON. Best suited to narrow
spaces like LED illumination or small motors.
Applicable cable range now covers from 2mm to
12mm diameters! Available from oilproof and weatherproof
types. Choose the best one to your particular application.

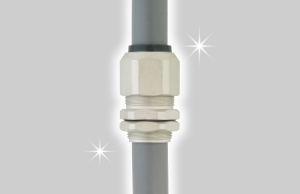

Smart-looking fitted to a cable
Massive reduction in size
Compared with a plastic type

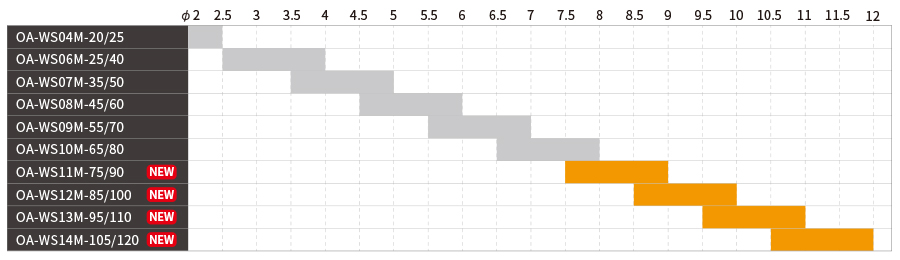

Applicable cable diameters (in mm)
Lineup
Oilproof type Rubber bushing: Black
| Model | Applicable cable diameter (mm) | Entry hole diameter (mm) | Threads | Working temperature | Weight | Q'ty per package | Locknut model |
| OA-WS04M-20/25 | Ø2 - 2.5 | Ø4 | M4×0.5 | -25 to +100℃ | 2g | 10 pcs. | LN-WS04M |
| OA-WS06M-25/40 | Ø2.5 - 4 | Ø6 | M6×0.5 | 4g | LN-WS06M | ||
| OA-WS07M-35/50 | Ø3.5 - 5 | Ø7 | M7×0.5 | 4g | LN-WS07M | ||
| OA-WS08M-45/60 | Ø4.5 - 6 | Ø8 | M8×0.5 | 5g | LN-WS08M | ||
| OA-WS09M-55/70 | Ø5.5 - 7 | Ø9 | M9×0.5 | 5g | LN-WS09M | ||
| OA-WS10M-65/80 | Ø6.5 - 8 | Ø10 | M10×0.5 | 6g | LN-WS10M | ||
| NEW OA-WS11M-75/90 | Ø7.5 - 9 | Ø11 | M11×0.5 | 6g | LN-WS11MBS | ||
| NEW OA-WS12M-85/100 | Ø8.5 - 10 | Ø12 | M12×0.5 | 7g | LN-WS12MBS | ||
| NEW OA-WS13M-95/110 | Ø9.5 - 11 | Ø13 | M13×0.5 | 7g | LN-WS13MBS | ||
| NEW OA-WS14M-105/120 | Ø10.5 - 12 | Ø14 | M14×0.5 | 8g | LN-WS14MBS |
Weatherproof type Rubber bushing: Blue
| Model | Applicable cable diameter (mm) | Entry hole diameter (mm) | Threads | Working temperature | Weight | Q'ty per package | Locknut model |
| OA-WS04M-20/25E | Ø2 - 2.5 | Ø4 | M4×0.5 | -25 to +100℃ | 2g | 10 pcs. | LN-WS04M |
| OA-WS06M-25/40E | Ø2.5 - 4 | Ø6 | M6×0.5 | 4g | LN-WS06M | ||
| OA-WS07M-35/50E | Ø3.5 - 5 | Ø7 | M7×0.5 | 4g | LN-WS07M | ||
| OA-WS08M-45/60E | Ø4.5 - 6 | Ø8 | M8×0.5 | 5g | LN-WS08M | ||
| OA-WS09M-55/70E | Ø5.5 - 7 | Ø9 | M9×0.5 | 5g | LN-WS09M | ||
| OA-WS10M-65/80E | Ø6.5 - 8 | Ø10 | M10×0.5 | 6g | LN-WS10M | ||
| NEW OA-WS11M-75/90E | Ø7.5 - 9 | Ø11 | M11×0.5 | 6g | LN-WS11MBS | ||
| NEW OA-WS12M-85/100E | Ø8.5 - 10 | Ø12 | M12×0.5 | 7g | LN-WS12MBS | ||
| NEW OA-WS13M-95/110E | Ø9.5 - 11 | Ø13 | M13×0.5 | 7g | LN-WS13MBS | ||
| NEW OA-WS14M-105/120E | Ø10.5 - 12 | Ø14 | M14×0.5 | 8g | LN-WS14MBS |
For further details of this product, see Liquidtight cable gland "CAPCON" Metallic Slim type
