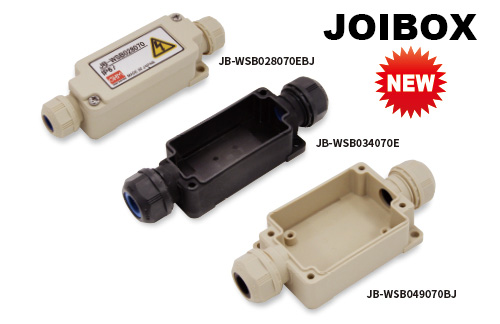

Liquidtight junction box JB-W series JOIBOX integrated, Slim blank type
Release on Nov. 27, 2019
Slim blamk type (without terminal block) is added!
For versatile application to protect connected wires from water and dust.
For versatile application to protect connected wires from water and dust.

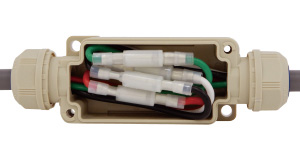

Example of use for JB-WSB

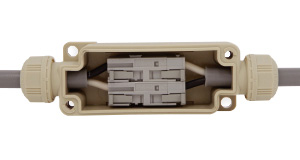

For single touch connector relays

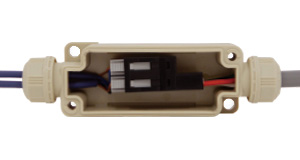

For relay connectors

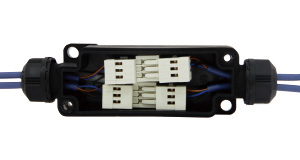

For e-CON connectors

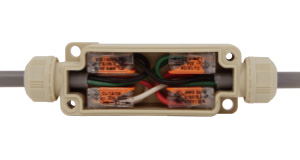

For relay connectors
For closed-end connectors

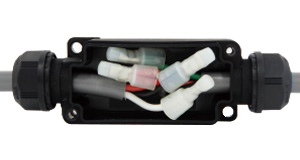

For bullet terminals

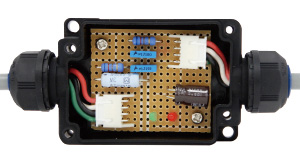

For circuit board

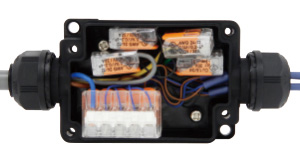

For branch wiring
Product lineup
Oilproof type Rubber bushing ：Black
| Type | Working temperature | Applicable cable dia. （mm） |
Weight （※1） |
Q'ty per package | |
| Black | Beige | ||||
| JB-WSB028070 | JB-WSB028070BJ | -25 to +80℃ | Ø 5 - 7 | 33g | 1 pc. |
| JB-WSB034070 | JB-WSB034070BJ | Ø 6 - 9 | 45g | ||
| JB-WSB049070 | JB-WSB049070BJ | Ø 6 - 9 | 58g | ||
Weatherproof type Rubber bushing ：Blue
| Type | Working temperature | Applicable cable dia. （mm） |
Weight （※1） |
Q'ty per package | |
| Black | Beige | ||||
| JB-WSB028070E | JB-WSB028070EBJ | -25 to +80℃ | Ø 5 - 7 | 33g | 1 pc. |
| JB-WSB034070E | JB-WSB034070EBJ | Ø 6 - 9 | 45g | ||
| JB-WSB049070E | JB-WSB049070EBJ | Ø 6 - 9 | 58g | ||
