Liquidtight cable gland CAPCON OA-W series Wide range CTG22 screw size
Release on March 22, 2019

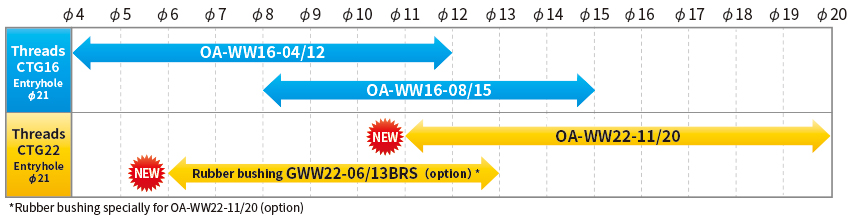

Meets broad range cable sizes！
CTG22 screw type added to OA-WW series
This simplifies model selection and reduces inventory price and its management.
CTG22 screw type added to OA-WW series
This simplifies model selection and reduces inventory price and its management.
Meets broad range cable sizes! Optional Rubber bushing
OA-WW22-11/20 applies to applicable cable dia Ø 6 - 13 by using optional rubber bushing.

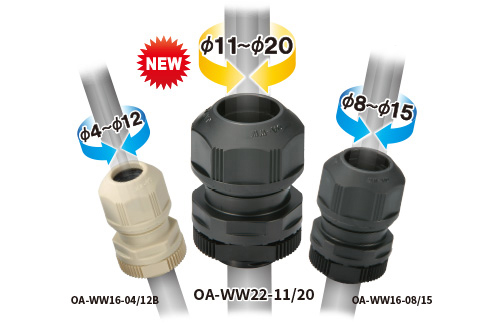

Product lineup
| Type | Model | Applicable cable dia. （mm） |
Entry hole dia. （mm） |
Threads | Q'ty/pack | |
| Black | Beige | |||||
| Oilproof | OA-WW16-04/12 | OA-WW16-04/12B | Ø 4 - 12 | Ø 21 | CTG16 （G1/2） |
20 pcs |
| Weatherproof | OA-WW16-04/12E | OA-WW16-04/12EB | ||||
| Oilproof | OA-WW16-08/15 | OA-WW16-08/15B | Ø 8 - 15 | |||
| Weatherproof | OA-WW16-08/15E | OA-WW16-08/15EB | ||||
| Oilproof | NEW OA-WW22-11/20 | NEW OA-WW22-11/20B | Ø11 - 20 | Ø 28 | CTG22 （G3/4） |
10 pcs |
| Weatherproof | NEW OA-WW22-11/20E | NEW OA-WW22-11/20EB | ||||

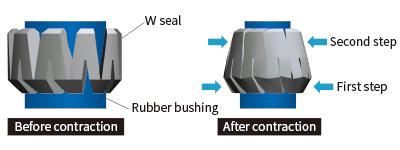

Clamping structure
Expand the movable range of contract by 2 step deformation of W seal which compresses rubbuer bushing

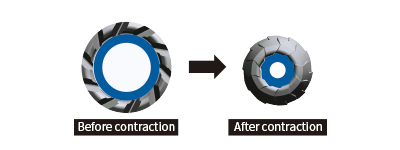

Rubber bushing is evenly compressed by sprial contraction
