Standard (External mounting) - UL listed


No. 1 enclosure heat exchanger brand in Japan
Versatile lineup gives freedom of choice

BOXFAN

Environment of use Type of mounting Cooling method
Indoor Eternal lateral mounting Air cooling

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE

Quick Selection

Model/Specifications

Model OC-17S-A100 OC-17S-A200 OC-12S-A100 OC-12S-A200 OC-15S-A100 OC-15S-A200
Type of mounting External lateral mounting
Cooling capacity  *1 8/10W/K 10/12W/K
Rated voltage*2 Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC
Rated current consumption *3 0.50A/0.45A 0.25A/0.23A 0.50A/0.45A 0.25A/0.23A 0.50A/0.45A 0.25A/0.23A
Rated power consumption *3 44/42W
Working temperature -10 to +70℃, ice-free
Working humidity 20 to 85%RH, free from condensation
Noise 59dB(A) 58dB(A)
Conformity to standards Safety UL1995
Environmental RoHS2
Dimensions (mm)*4 W170×H680×D60 W200×H480×D66 W150×H590×D90
Weight 6.2kg 5.8kg 6.1kg

Model OC-28S-A100 OC-28S-A200 OC-31S-A100 OC-31S-A200 OC-30S-A100 OC-30S-A200
Type of mounting External lateral mounting
Cooling capacity  *1 16/20 W/K 25/30 W/K
Rated voltage*2 Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC
Rated current consumption *3 1.00A/0.90A 0.50A/0.45A 1.00A/0.90A 0.50A/0.45A 1.40A/1.20A 0.70A/0.60A
Rated power consumption *3 88/84W 100/90W
Working temperature -10 to +70℃, ice-free
Working humidity 20 to 85%RH, free from condensation
Noise 62dB(A) 63dB(A) 67dB(A)
Conformity to standards Safety UL1995
Environmental RoHS2
Dimensions (mm)*4 W280×H590×D90 W310×H680×D60 W300×H650×D90
Weight 10.7kg 11.0kg 12.5kg

Model OC-20S-A100 OC-20S-A200 OC-37S-A100 OC-37S-A200 OC-40S-A100 OC-40S-A200
Type of mounting External lateral mounting
Cooling capacity  *1 34/43 W/K 35/42 W/K 60/80 W/K
Rated voltage*2 Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC Single phase 100 to 120VAC Single phase 200 to 230VAC
Rated current consumption *3 1.40A/1.20A 0.70A/0.60A 2.80A/2.40A 1.40A/1.20A 2.80A/2.40A 1.40A/1.20A
Rated power consumption *3 100/90W 200/180W 200/180W
Working temperature -10 to +70℃, ice-free
Working humidity 20 to 85%RH, free from condensation
Noise 66dB(A) 68dB(A) 69dB(A)
Conformity to standards Safety UL1995
Environmental RoHS2
Dimensions (mm)*4 W200×H714×D160 W382×H650×D90 W400×H714×D160
Weight 14.5kg 16.1kg 28.3kg
*1 Nominal value when the temperature difference between inside and outside the control panel is 20K
*2 This product is designed for single phase, 100VAC or 200VAC supply voltage only. Please consult us for other supply voltages.
*3 Values based on our measurement under the temperature and humidity conditions of +25℃ and 50%RH
*4 Excluding the terminal block and the filter guard


Product lineup

OC-17S-A100/A200

OC-17S-A100/OC-17S-A200

Cooling capacity

8/10 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120
1pc/set OG-17 FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

Dimensional drawing

外形寸法図

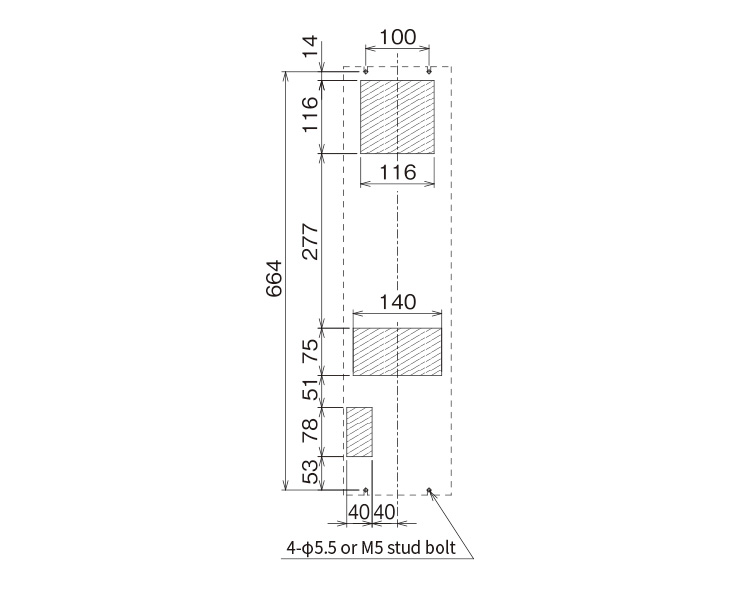

Mounting cutout

パネルカット図


OC-12S-A100/A200

OC-12S-A100/OC-12S-A200

Cooling capacity

10/12 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120 1pc/set OG-12 FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

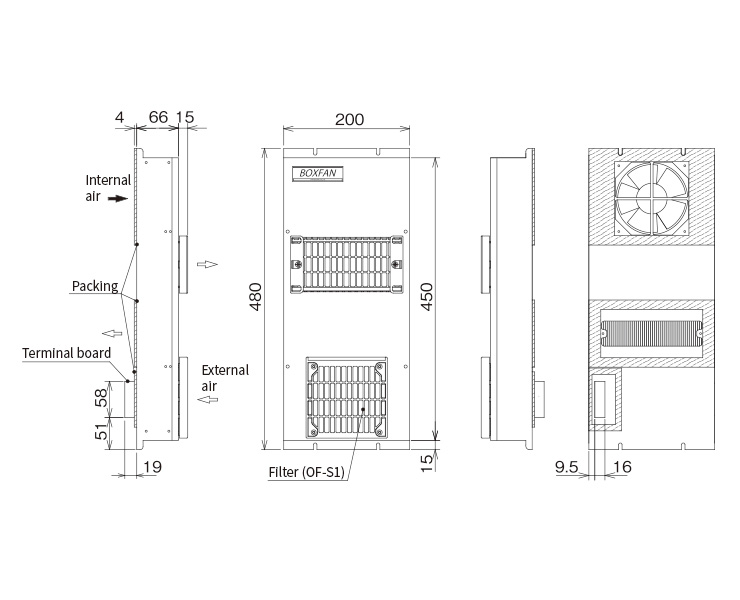

Dimensional drawing

外形寸法図

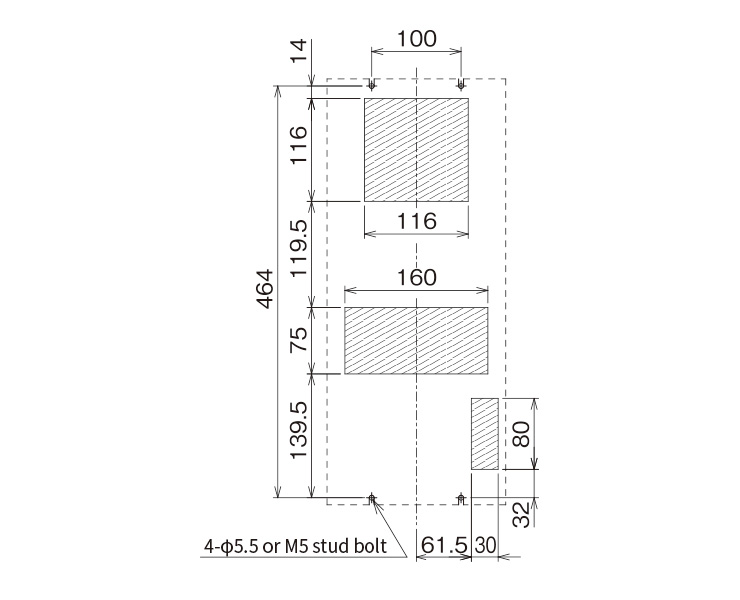

Mounting cutout

パネルカット図


OC-15S-A100/A200

OC-15S-A100/OC-15S-A200

Cooling capacity

10/12 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120 1pc/set OG-15 FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

Dimensional drawing

外形寸法図

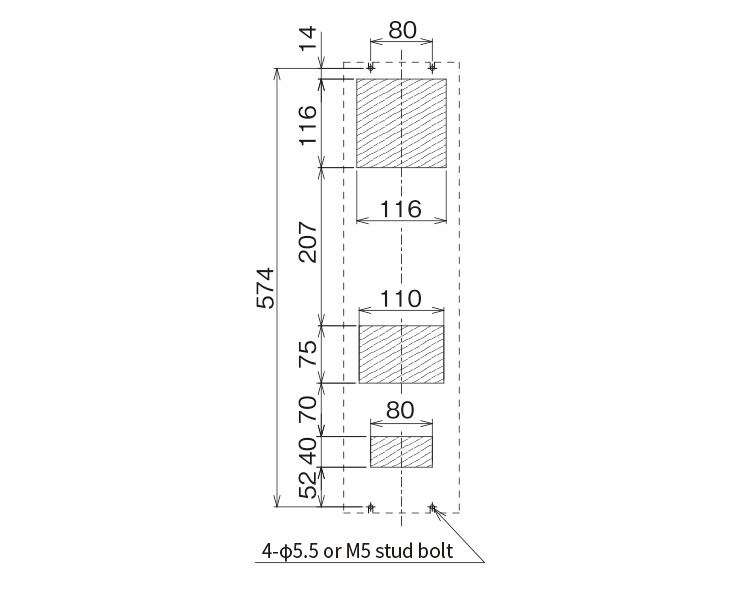

Mounting cutout

パネルカット図


OC-28S-A100/A200

OC-28S-A100/OC-28S-A200

Cooling capacity

16/20 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120 1pc/set OG-28 FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

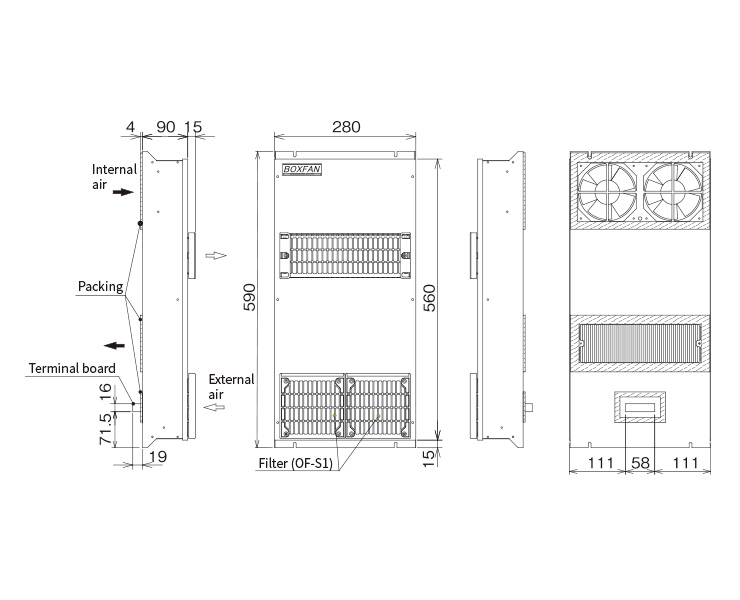

Dimensional drawing

外形寸法図

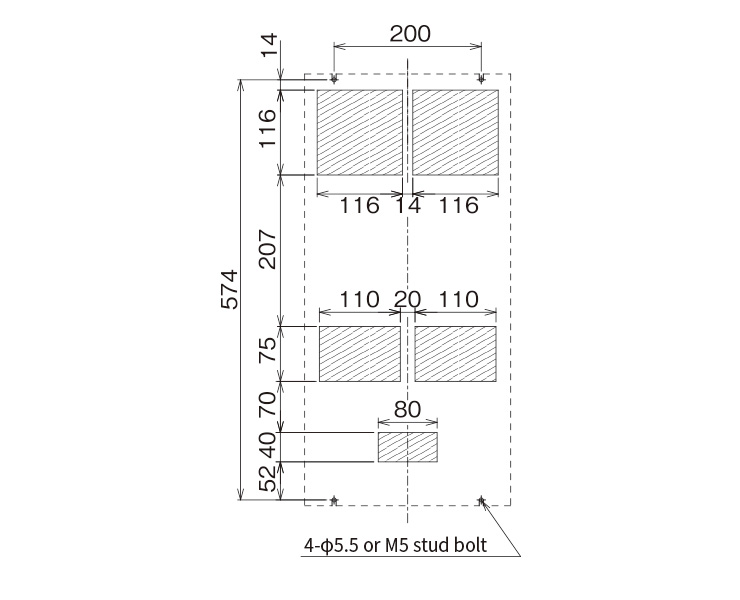

Mounting cutout

パネルカット図


OC-31S-A100/A200

OC-31S-A100/OC-31S-A200

Cooling capacity

16/20 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120 1pc/set OG-31 FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

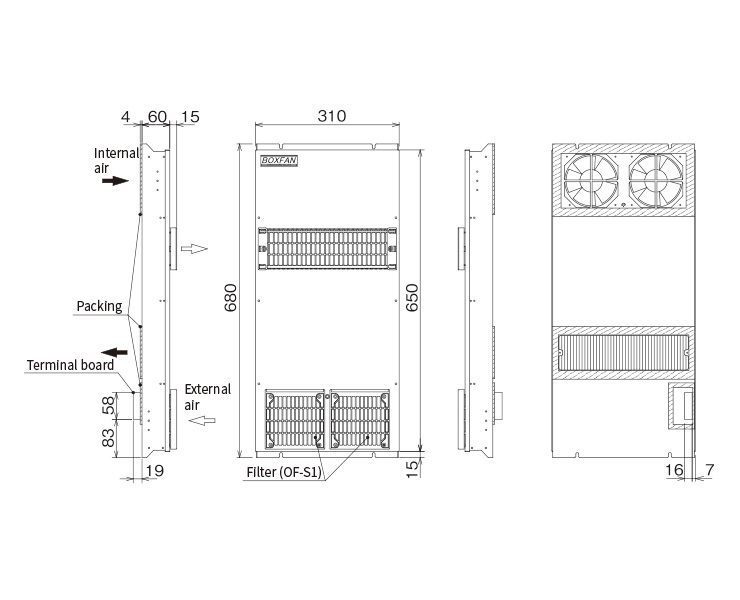

Dimensional drawing

外形寸法図

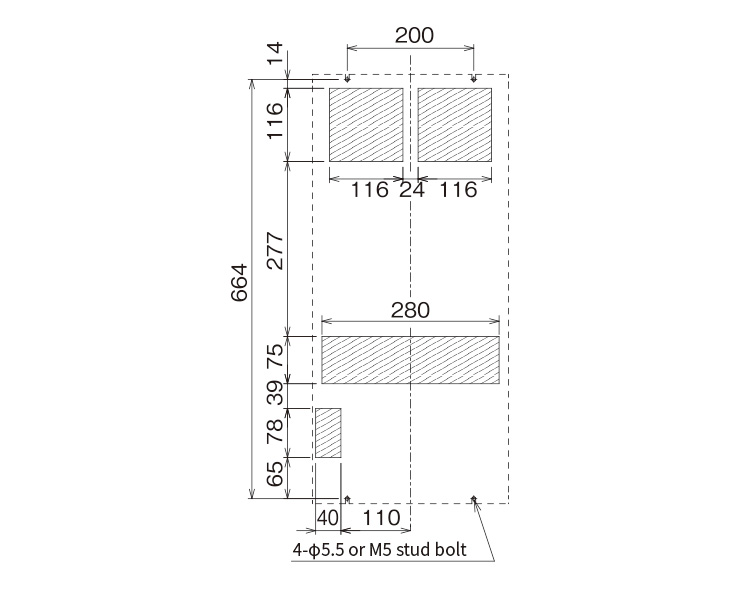

Mounting cutout

パネルカット図


OC-30S-A100/A200

OC-30S-A100/OC-30S-A200

Cooling capacity

25/30 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 150 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-150 1pc/set OG-30 FIN 1 set OF-S2 1 pc. FM-15055M
-MV-00
1 pc.

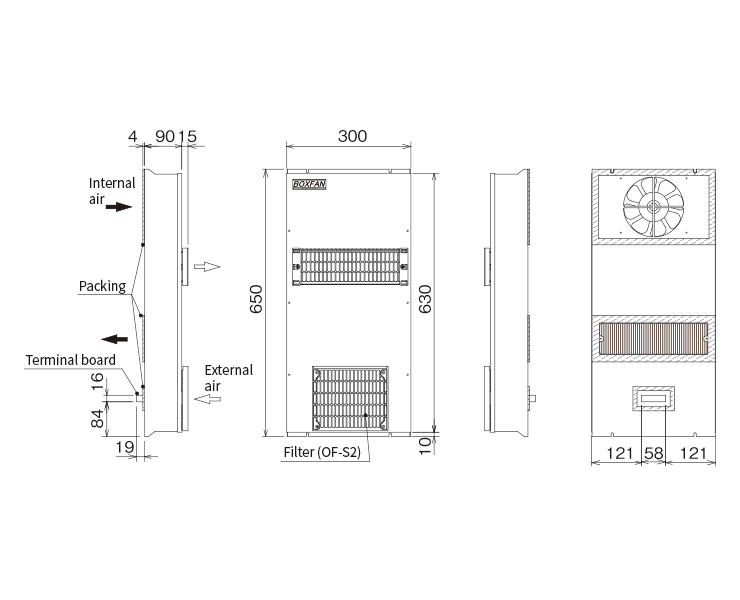

Dimensional drawing

外形寸法図

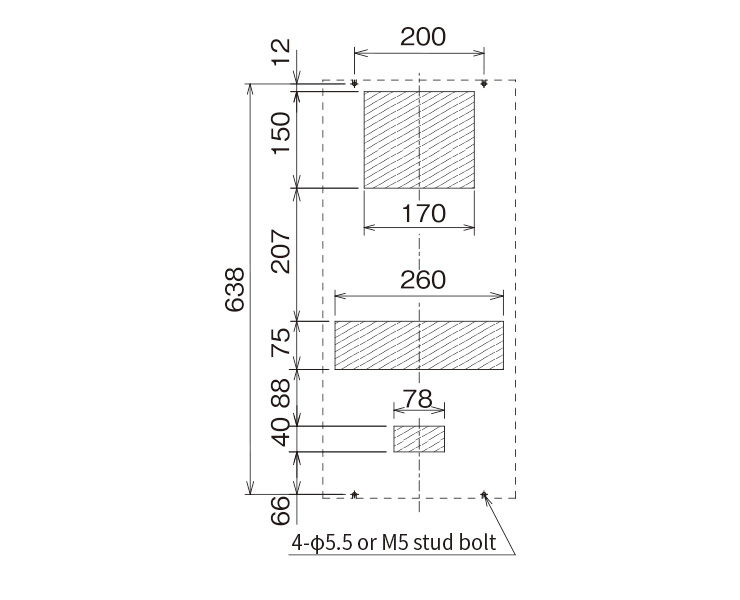

Mounting cutout

パネルカット図


OC-20S-A100/A200

OC-20S-A100/OC-20S-A200

Cooling capacity

34/43 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 150 sq. : 1 pc. Screws for filter guard : 4 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-150 1pc/set OG-20H FIN 1 set OF-S2 1 pc. FM-15055M
-MV-00
1 pc.

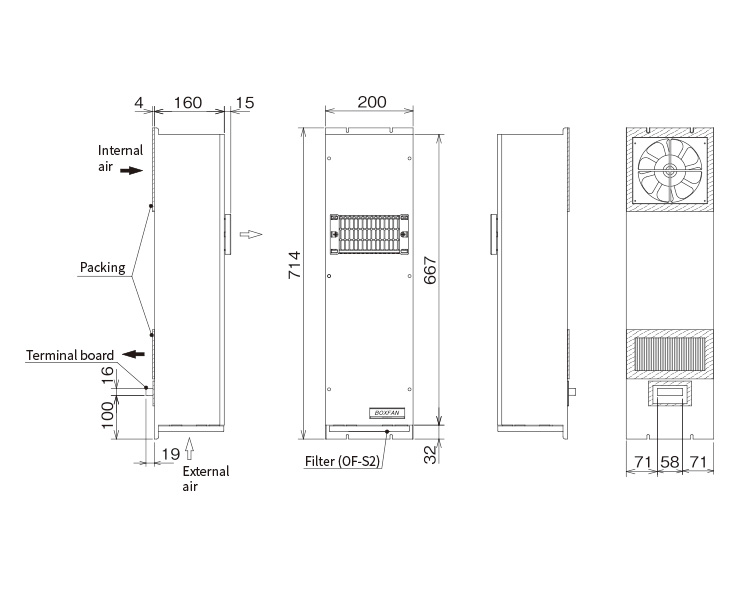

Dimensional drawing

外形寸法図

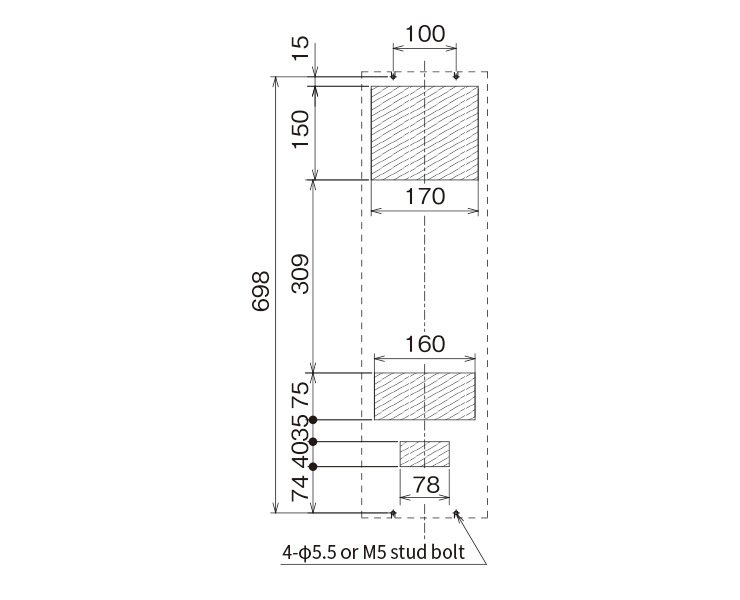

Mounting cutout

パネルカット図


OC-37S-A100/A200

OC-37S-A100/OC-37S-A200

Cooling capacity

35/42 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 150 sq. : 2 pc. Screws for filter guard : 8 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-150 1pc/set OG-37 FIN 1SET OF-S2 1 pc. FM-15055M
-MV-00
1 pc.

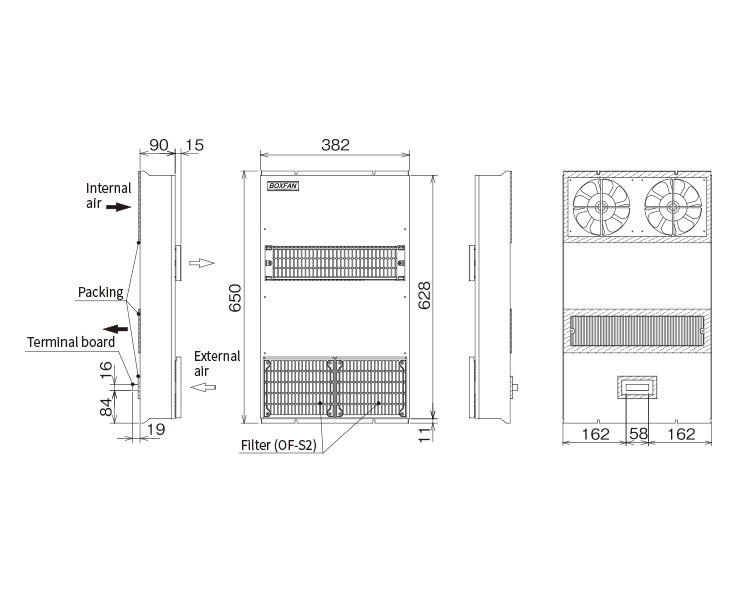

Dimensional drawing

外形寸法図

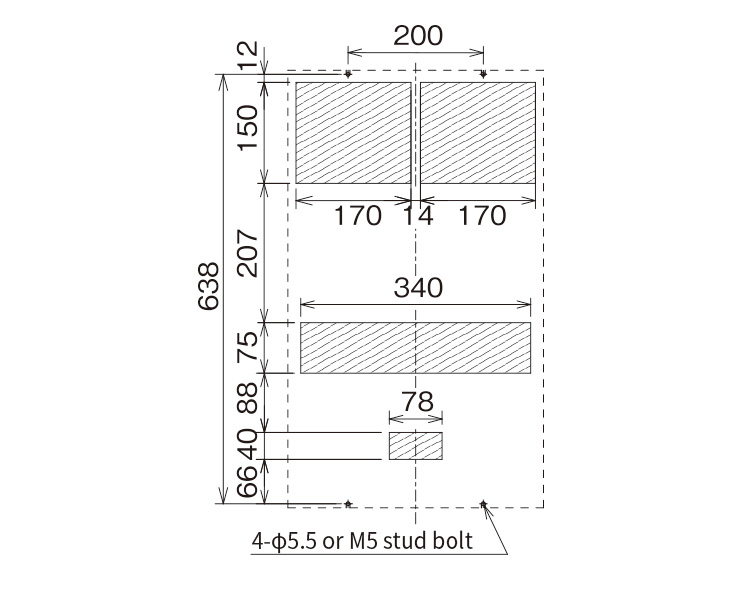

Mounting cutout

パネルカット図


OC-40S-A100/A200

OC-40S-A100/OC-40S-A200

Cooling capacity

60/80 W/K (50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 150 sq. : 2 pcs. Screws for filter guard : 8 pcs.
Warning label (Electric shock) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-150 1pc/set OG-40H
FIN
1 set OF-S2 1 pc. FM-15055M
-MV-00
1 pc.

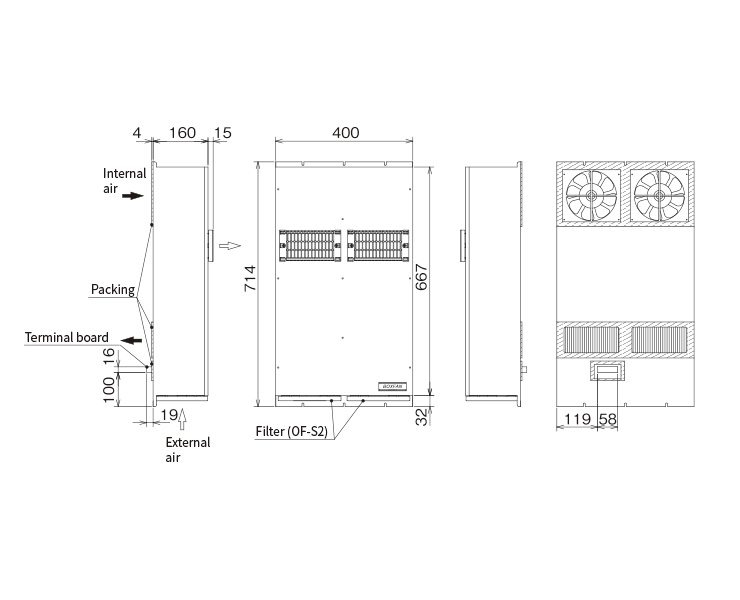

Dimensional drawing

外形寸法図

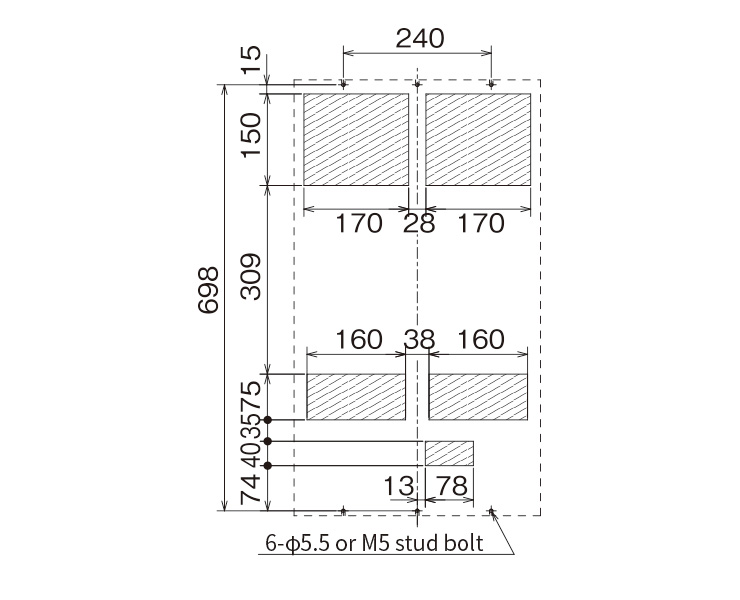

Mounting cutout

パネルカット図

Related products

Thermostat

サーモスタット

Contributes to energy saving, thus a good solution to ISO14000

Cautions

・Locate BOXFAN at least 150 mm away from adjacent components or walls to keep smooth air circulation between inside and outside the enclosure. Failure to this will lead to performance decline.
・Electrical connection should be made via an appropriate circuit breaker.
・This product is for indoor use only.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
