Climate control equipment


Compact


Small-sized body to fit in narrow spaces

BOXFAN

Environment of use Cooling method Specifications
Indoor Air cooling Compact

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE
UL: OC-153H-A** only

Quick Selection

Model/Specifications

Model OC-153H-A100 OC-153H-A200 OC-201L-DC24V OC-0810HIL OC-0820HIL
Type of mounting Internal lateral mounting Partially recessed mounting
Cooling capacity *1 9/11 W/K 6.5 W/K 6.5/8 W/K
Rated voltage(50/60Hz) Single phase
100 to 120VAC*2
Single phase
200 to 230VAC*2
24VDC Single phase 100VAC Single phase 200VAC
Rated voltage *3 0.50A/0.45A 0.25A/0.23A 0.52A 0.44A/0.36A 0.22A/0.18A
Rated current consumption *3 44/42W 12.5W 28/22W
Rated power consumption -10 to +70℃, ice-free
Working humidity 20 to 85%RH, free from condensation
Noise 58dB(A) 53dB(A)
Conformity to standards Safety UL1995 -
Environmental RoHS2
Dimensions (mm)*4 W153×H395×D126 W200×H300×D66 W176×H206×D152
Weight 4.2kg 3.5kg 3.0kg
*1 Nominal value when the temperature difference between inside and outside the control panel is 20K
*2 This product is designed for single phase, 100VAC or 200VAC supply voltage only. Please consult us for other supply voltages.
*3 Values based on our measurement under the temperature and humidity conditions of +25℃ and 50%RH
*4 Excluding the terminal block and the filter guard

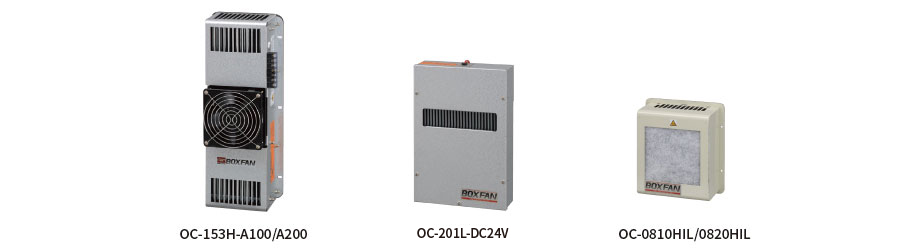

Product lineup

OC-153H-A100/A200

OC-153H

Cooling capacity

9/11 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter guard 120 sq. : 1 pc. Fin guard : 2 pcs.
Guide : 4 pcs. Filter : 1 pc. Screws for filter/fin guards : 4 pcs.
Warning label (Rotating parts) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Filter guard Fin guard Replacement filter Replacement fan
FFG-120 1pc
/set
OG-153H FIN 1 set OF-S1 1 pc. FM-11938M
-MV-00
1 pc.

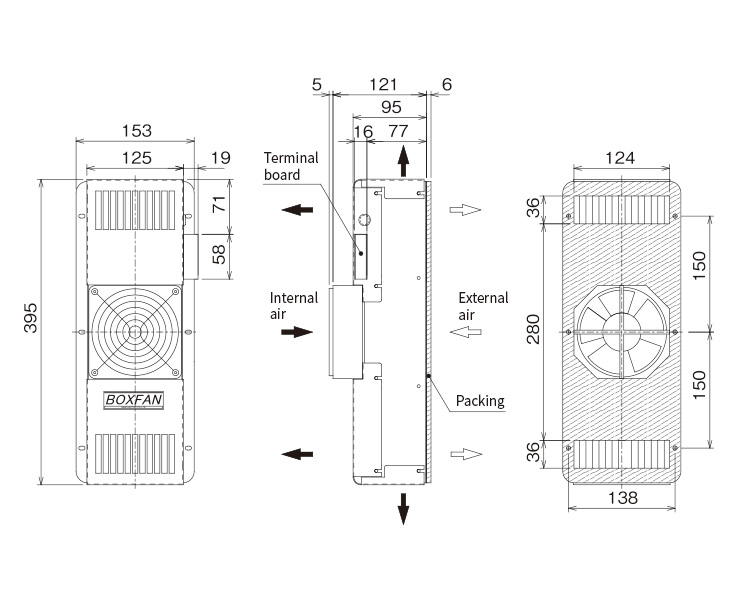

Dimensional drawing

外形寸法図

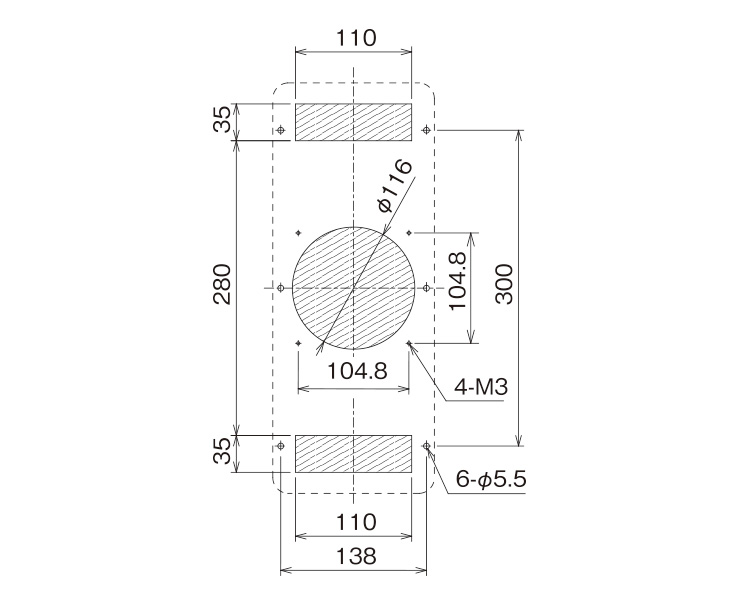

Mounting cutout

パネルカット図


OC-201L-DC24V

OC-201L

Cooling capacity

6.5 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Warning label (Rotating parts) : 1 pc. Instruction manual : 1 copy

Maintenance parts

Replacement fan
FM-06025P-D24-00 1 pc.

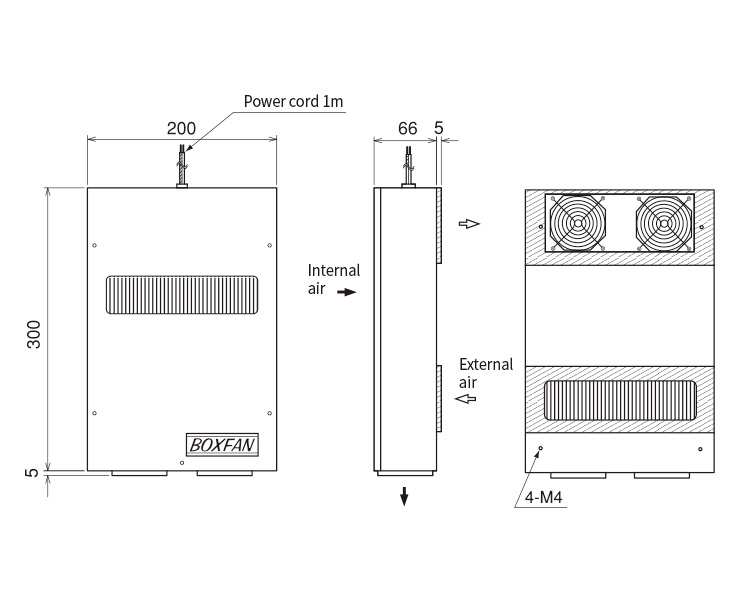

Dimensional drawing

外形寸法図

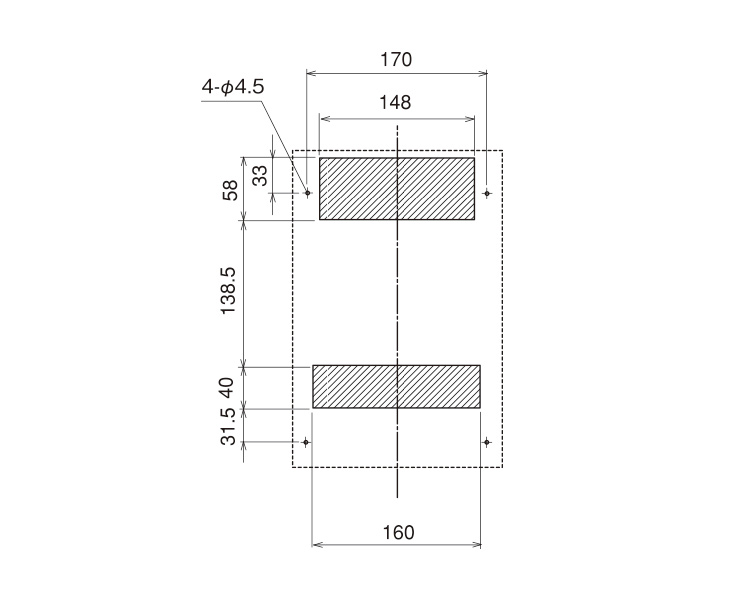

Mounting cutout

パネルカット図


OC-0810HIL/0820HIL

OC-0810HIL/0820HIL

Cooling capacity

6.5/8 W/K(50/60Hz)

A complete set of supply

BOXFAN : 1 unit Filter : 1 pc. Instruction manual : 1 copy

Maintenance parts

Replacement filter Replacement fan
OF-08HIL 5 pcs/set FM-11925P-A100-00 1 pc.
FM-11925P-A200-00 1 pc.

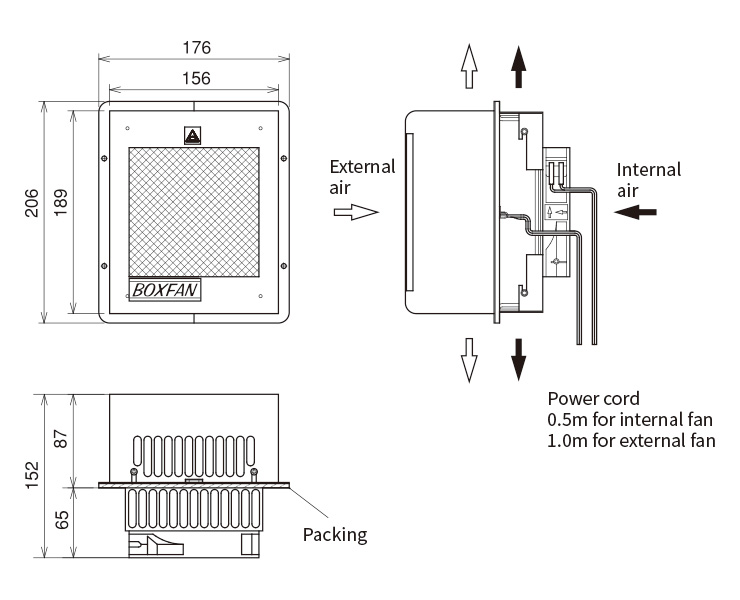

Dimensional drawing

外形寸法図

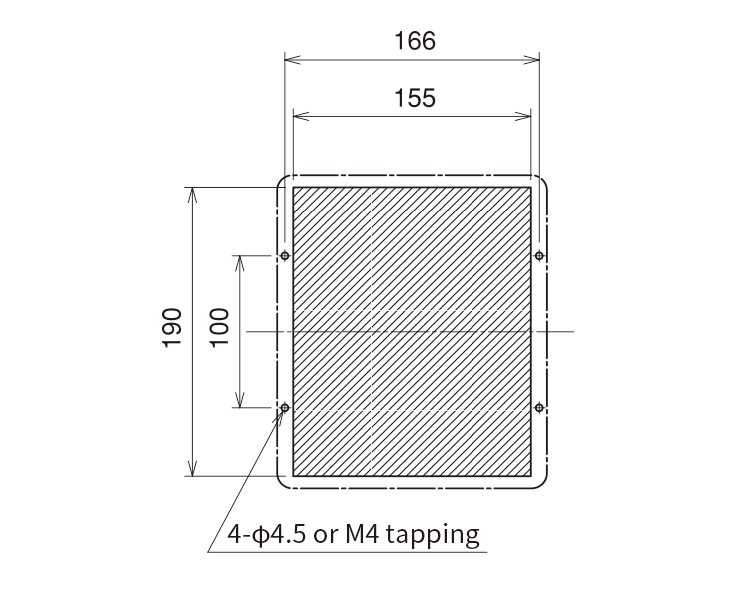

Mounting cutout

パネルカット図

Related products

Thermostat

サーモスタット

Contributes to energy saving, thus a good solution to ISO14000

Cautions

・Locate BOXFAN at least 150 mm away from adjacent components or walls to keep smooth air circulation between inside and outside the enclosure. Failure to this will lead to performance decline.
・Electrical connection should be made via an appropriate circuit breaker.
・This product is for indoor use only.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
