Natural air cooling type
Causes natural air convection to lower the humidity level without using fans
No vibration, no noise and long life expectancy!
No vibration, no noise and long life expectancy!
Features
| Environment of use | Dehumidification method | Specifications | |
| Indoor | Thermoelectric | Energy saving mode | Wide range of supply voltages |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications
| Model | ODE-N103-AW | ODE-N105-AW | |
| Dehumidification capacity *1 | 3ml/h | 5ml/h | |
| Rated voltage | Single phase, 100 - 240V AC | ||
| Current consumption | Dehumidification ON | 0.15A (100VAC) 0.09A (240VAC) | 0.24A (100VAC) 0.13A (240VAC) |
| Dehumidification OFF | 0.02A (100VAC) 0.03A (240VAC) | 0.05A (100VAC) 0.06A (240VAC) | |
| Starting current | 2.5A | 4.5A | |
| Rated power consumption | Dehumidification ON | 10W | 15W |
| Dehumidification OFF | 2W | 5W | |
| Working temperature | 0 to +45℃, ice-free | ||
| Working humidity | Max. 95％RH | ||
| Operation mode | Continuous/Automatic (Energy-saving) | ||
| Setting for automatic operation | To run when humidity is 50% or higher and stop when it drops below 50% | ||
| Function | ・Detection of high temperature at radiation part……When radiation part has reached +80℃ ・Detection of thermoelectric module error……… When current value of the thermoelecric module has dropped ・Detection of abnormal working temperature……When operation has stopped outside the working temperature range (below 0℃ or beyond ＋50℃） ・Detection of temperature sensor disconnection…… When temperature sensor caused wire disconnection |
||
| Error output | Contact capacity 24V DC 300mA 1a | ||
| Power connection | Triplex power cable, 1.3m | ||
| Conformity to standards | Environment | RoHS2 | |
| Dimensions (mm)*2 | W131×H161.5×D65 | W131×H250.5×D65 | |
| Weight | 1.1kg | 1.7kg | |
*1 Nominal value when ambient temperatures is +30℃ and humidity is 80％RH
*2 Drain pipe, cable and mounting stay are excluded.
*2 Drain pipe, cable and mounting stay are excluded.
- Supply voltage should be within the specified range with fluctuation not exceeding ±10%.
Contents of page

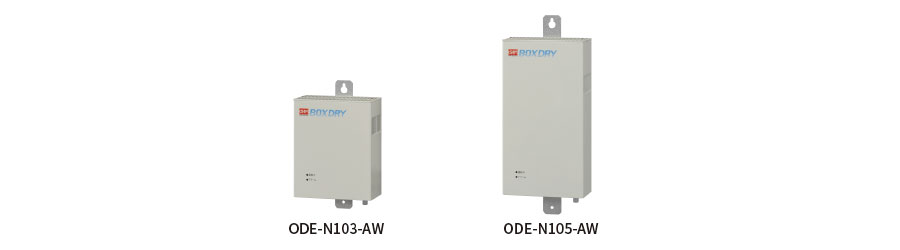

ODE-N103-AW
Dehumidification capacity
3ml/h
A complete set of supply
BOXDRY : 1 unit Drain hose Ø8～Ø11 : 1 pc. 1.5 m long
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy

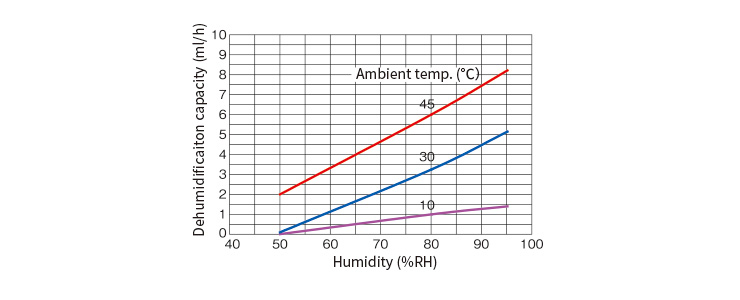

Dehumidification characteristics chart

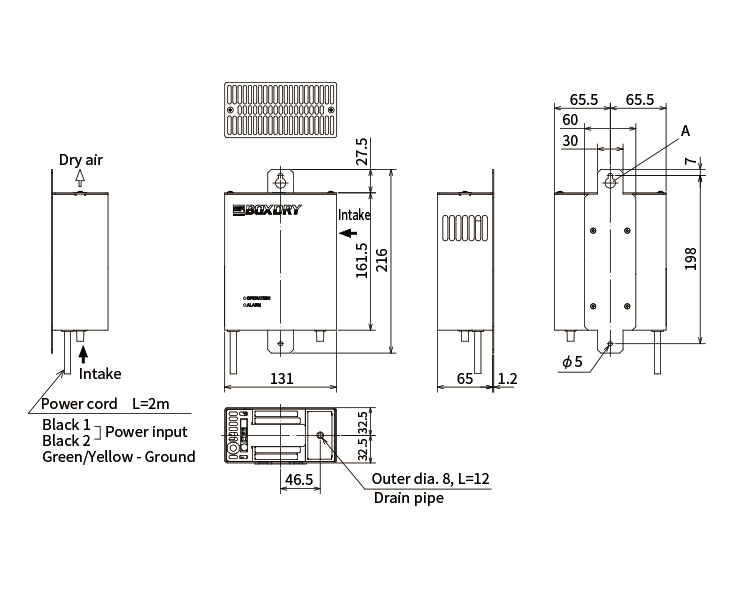

Dimensional drawing
Expanded view of Section A

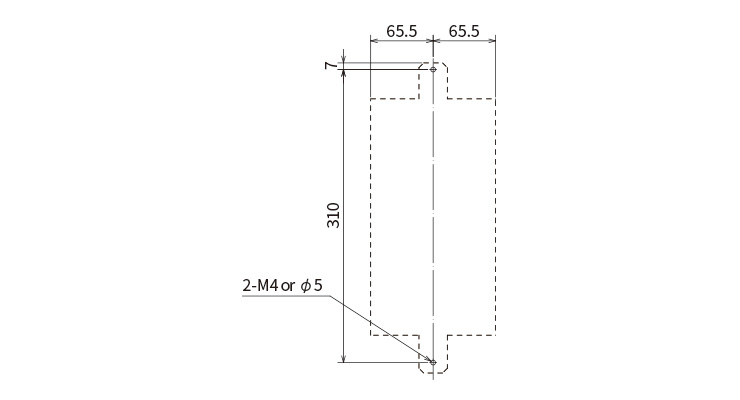

Mounting cutout
Dimensional drawing

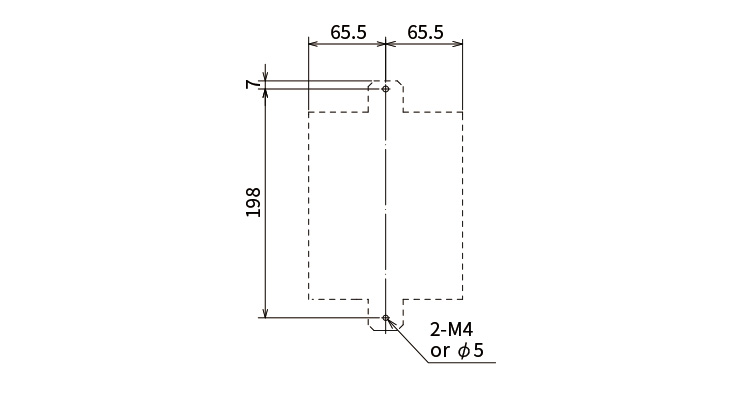

Mounting cutout
ODE-N105-AW
Dehumidification capacity
5ml/h
A complete set of supply
BOXDRY : 1 unit Drain hose Ø8～Ø11 : 1 pc. 1.5 m long
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy

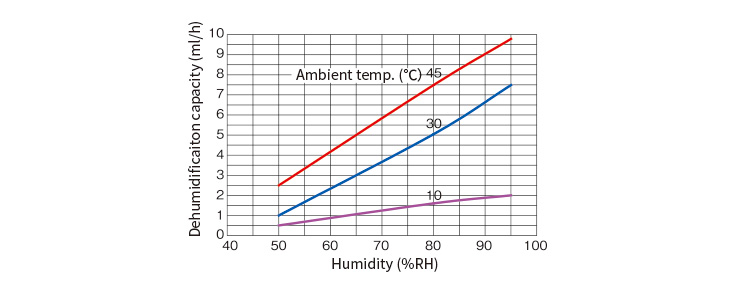

Dehumidification characteristics chart

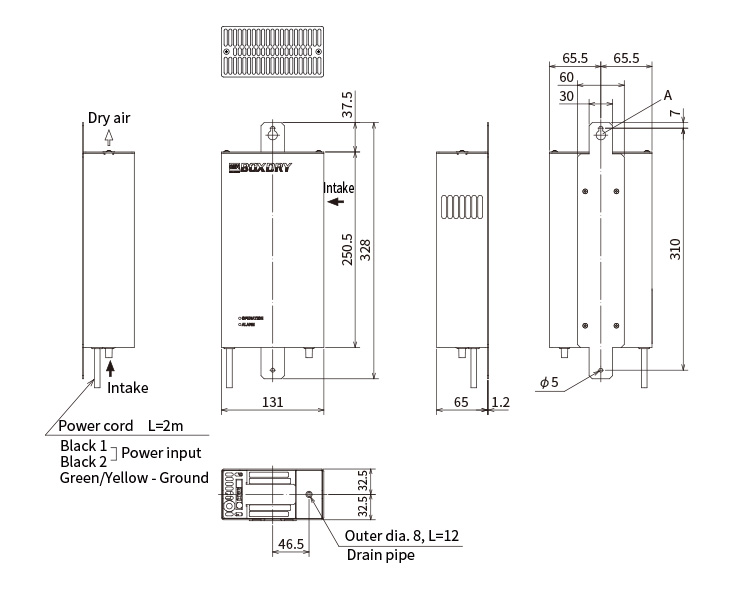

Dimensional drawing
Expanded view of Section A
Performance by internal volume (in cont. run)

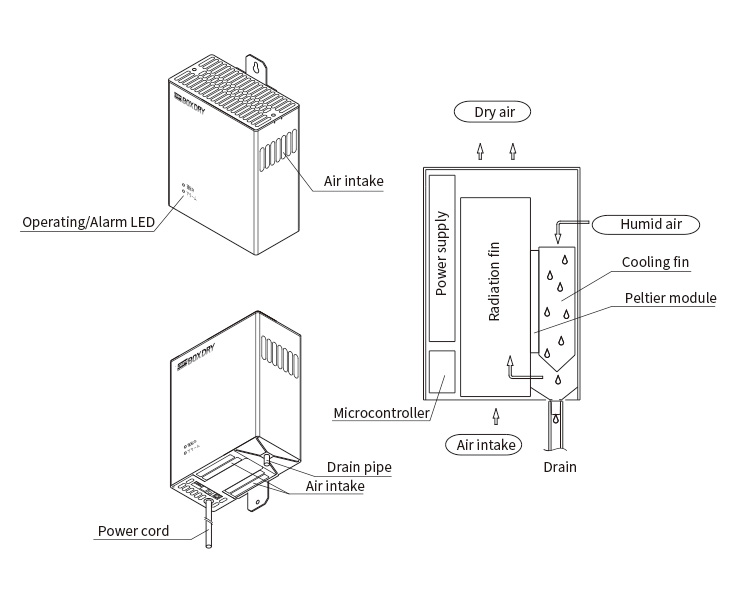

Structural drawing

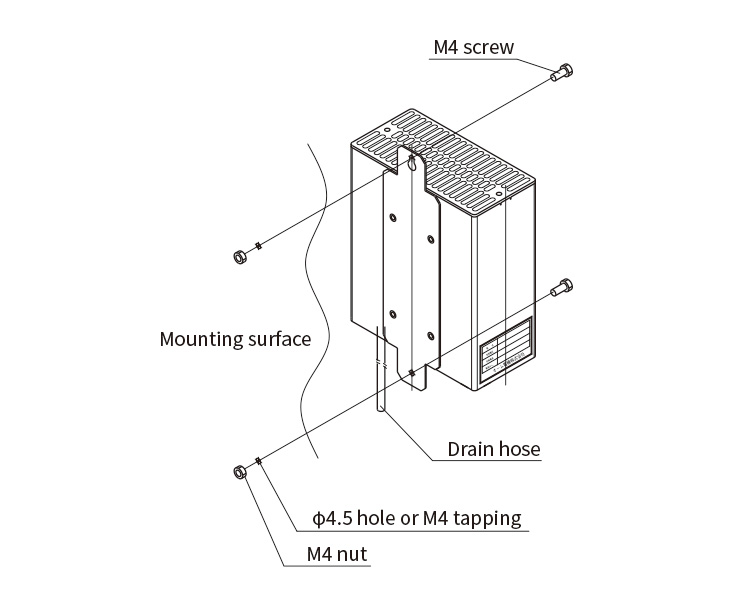

Installation drawing
Related products
Drain evaporator
For eliminating troublesome drain management
Cautions
・This product is designed to be installed in an enclosure.
・Make sure that the enclosure is hermetically sealed with no vent.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Install BOXDRY perpendicularly within 1 degree angular tolerance.
・Pay attention in attaching the drain hose (accessory). Bent or clogged hose causes trouble in drainage, which may lead to water leak into the enclosure.
・Make sure that the packaging is not damaged on delivery and contact your supplier.Any packaging damage may be a cause of breakdown.
・Make sure that the enclosure is hermetically sealed with no vent.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Install BOXDRY perpendicularly within 1 degree angular tolerance.
・Pay attention in attaching the drain hose (accessory). Bent or clogged hose causes trouble in drainage, which may lead to water leak into the enclosure.
・Make sure that the packaging is not damaged on delivery and contact your supplier.Any packaging damage may be a cause of breakdown.
