Dedicated software for Temperature control system

A software specifically designed for the temperature control systems
Enables monitoring of values, ON/OFF switching and settings by PC


  • Applicable product models : OCE-TCR12075WL. OCE-TCR24150WL. OCE-TCR24300WL, OCE-TCR24600WL, BCU-01P220-AW
  • Connection method : USB
  • Number of connectable units : 1 (One connected unit per PC only. Not designed for centralized management for multiple units)

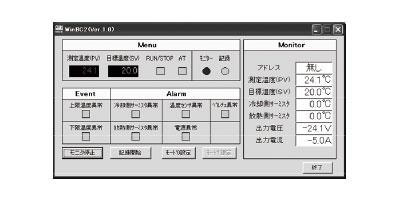

The values and temperatures are displayed in real time.


・Measured temperature ・Set temperature
・Output voltage ・Output current
・Thermistor temperature on cooling side
・Thermistor temperature on heat dissipation side

Operation control of connected equipment


・Operation ON/OFF ・Change of setting temperature
・ON/OFF of AT (auto-tuning)

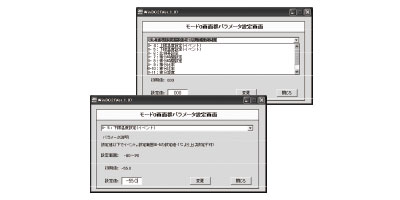

Setting of connected equipment


・Operation parameter ・PID parameter ・Event parameter

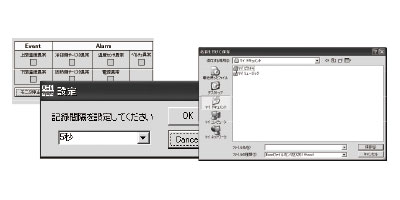

Data recording


Various values or temperature can be recorded depending on application by setting recording interval.
【Recording data】
 Measured temp./Setting temp./Output voltage
 Thermistor temp.for cooling side and heat dissipation side
【Recording interval】
 2 sec./ 5 sec./ 10 sec./30 sec./1 min./
5 min./10 min./30 min./60 min.
【Saving format】
 Text file (CSV form)


Software name WinBC2
Applicable product models OCE-TCR12075WL、OCE-TCR24150WL、OCE-TCR24300WL、
Operation environment Supported OS Windows Vista(32 bit/64 bit) Japanese version Home Basic, Home Premium, Business, Ultimate
Windows 7(32 bit/64 bit)Japanese ver.Home Premium、Professional、Ultimate
Windows 8/8.1 (32 bit/64 bit)Japanese ver. Windows 8、Windows 8 Pro、Windows 8.1、Windows 8.1 Pro
Windows 10 (32 bit/64 bit)Japanese version Home, Pro
Supported CPU Processor of no less than 800 MHz
Memory 512 MB or more
Free disk space 20 MB or more
Display VGA monitor of 1024×768 pixels or higher resolution
Communication port USB 1.1 or serial port
Note : The above company names and product names are trademarks or registered trademarks.
