Temperature control system Inversion type with power supply


Temperature control system specifically designed for BOXCOOL
Enables automatic control of cooling temperature with high accuracy

OCE-TCR

Features

Environment of use Function
Indoor Display Wide range of supply voltages

Certificates/Approvals

EU RoHS China RoHS CE UL CSA PSE

Model/Specifications

Model OCE-TCR12075WL OCE-TCR24150WL OCE-TCR24300WL OCE-TCR24600WL
Temperature control method Auto-tuning PID controller ON/OFF control Auto-tuning PID controller ON/OFF control
Output control method Polarity reversion type Linear voltage control/PWM control Output
Thermoelectric module output rating ±12VDC 6.3A ±24VDC 6.3A ±24VDC 14.0A ±24VDC 27.0A
Fan motor output rating 12VDC 0.8A 24VDC 0.8A
Power supply voltage (50/60Hz) Single phase 100-240VAC
Max. power consumption 150VA  250VA  550VA  950VA
Temperature sensor (option) Resistance temperature detector JIS Pt100 3-wire type Thermocouple (T/K)
Communication function USB2.0 RS-485
Temperature setting range -50.0 to +80.0℃
Temperature control accuracy *1 ±0.1℃
Display resolution 0.1℃
Working temperature 0 to +40℃
Working humiidity Max. 90%RH, free from condensation
Upper and lower limit setting of control output Arbitrary setting by voltage level
Safety function Fuse (double protection on primary side) Alarm buzzer
Self diagnosing (Upper and lower limit error detection, power failure detection, thermistor off-temperature detection)
External input/output Analog output 1 point Communication : RS-485 1 point Communication : USB 2.0 1 point
Event contact output 1 point Alarm contact output 1 point
Alarm display Green/Orange LED Buzzer output
Input/output terminal board Output/Signal input 7P
(Peltier output 2P/Fan output 2P/Temperature sensor input 3P)
Power supply output 3P (AC input/FG)
Output 8P
(Peltier output 2P/Fan output 2P/temperature sensor input 3P)
(Peltier output 2P x 3/Fan output 2P)
Signal input 3P (Temperature sensor input)
Power supply input 3P (AC input/FG)
Connector 10P for events RS-485 6P USB port
Noise 37dB 54dB(MAX) 55dB(MAX)
Conformity to standards Environment RoHS
Dimensions (mm) *2 W150×H105×D216 W220×H105×D316
Weight 2.5kg 4.2kg 4.6kg
Applicable BOXCOOL models OCE-F15P-D12
OCE-F15F-D12
OCE-L15P-D12
OCE-L15F-D12
OCE-F40P-D24
OCE-F40F-D24
OCE-L40P-D24
OCE-L40F-D24
OCE-F80P-D24
OCE-F80F-D24
OCE-F80LA-D24
OCE-F80LT-D24
OCE-L80P-D24
OCE-L80F-D24
OCE-L80LA-D24
OCE-L80LT-D24
OCE-F120F-D24
OCE-F160LA-D24
OCE-F160LT-D24
OCE-L160LA-D24
OCE-L160LT-D24
*1 Accuracy of temperature sensor is not included. The value is based on constant working temperature condition and varies depending on working environment.
*2 Excluding rubber feet, terminal board and projections

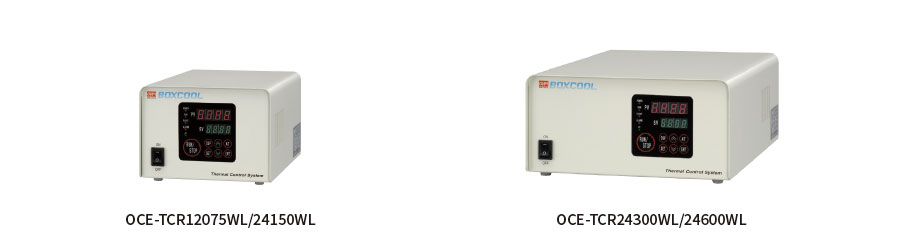

OCE-TCR12075WL/24150WL

OCE-TCR

A complete set of supply

Temperature control system : 1 unit
Thermistor for thermoelectric module protection : 2 pcs. 2 m long
Event connector 10P : 1 pc.
Connector for RS485 6P : 1 pc.  Instruction manual : 1 copy

* For 100VAC power supply
Power cable WH-A-M4-2 is available as an optional extra.

Dedicated software

Dedicated software for enabling operation and data recording by PC is available to download free.

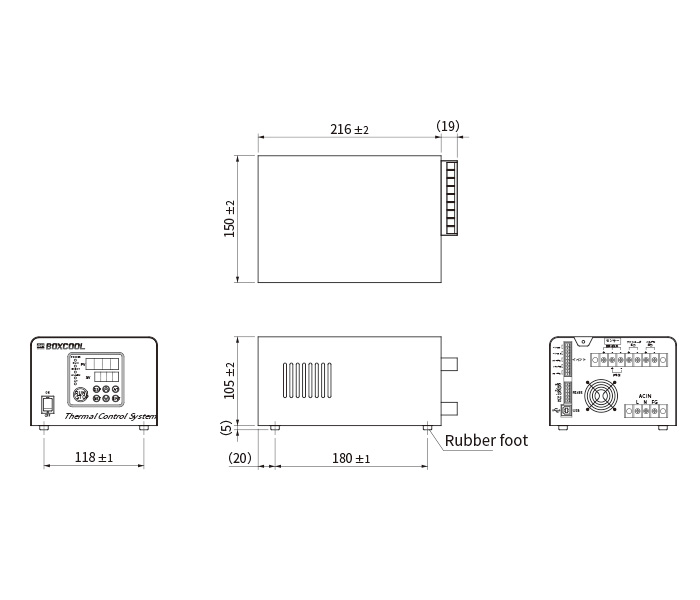

Dimensional drawing

外形寸法図

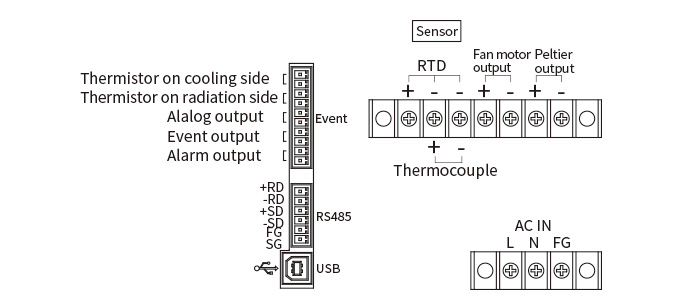

Wiring diagram

配線図

OCE-TCR24300WL/24600WL

OCE-TCR

A complete set of supply

Temperature control system : 1 unit
Thermistor for thermoelectric module protection : 2 pcs. 2 m long
Event connector 10P : 1 pc.
Connector for RS485 6P : 1 pc.  Instruction manual : 1 copy



Power cable WH-A-M4-2 is available as an optional extra.

Dedicated software

Dedicated software for enabling operation and data recording by PC is available to download free.

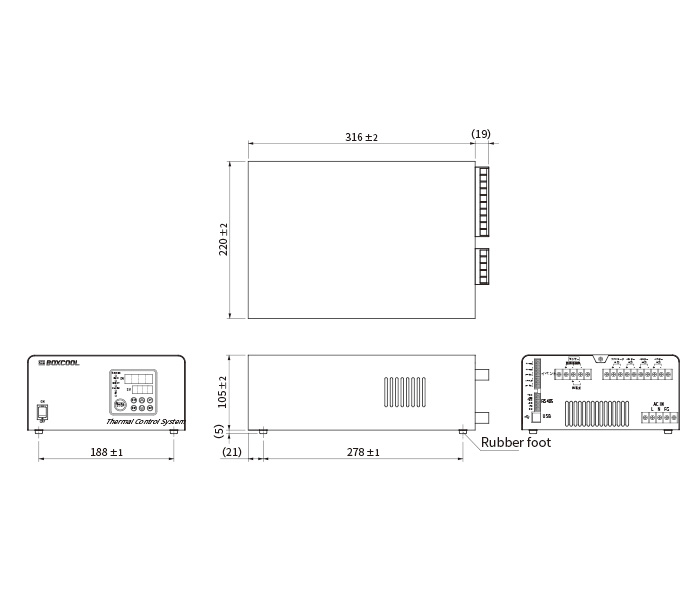

Dimensional drawing

外形寸法図

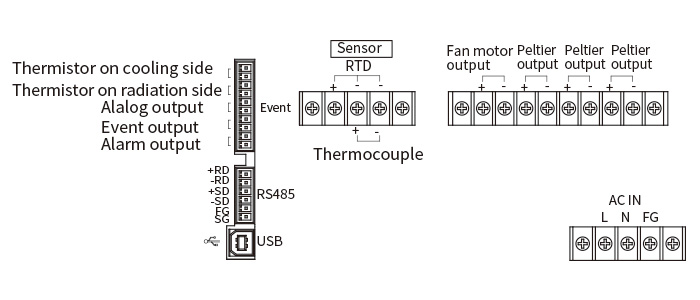

Wiring diagram

配線図

Example of connection

接続例


Cautions

・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Indoor use only.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
