Dedicated temperature sensor for Temperature control system
Temperature sensor specifically designed for the temperature control systems
Varied lineup to fit all types of BOXCOOL products
Varied lineup to fit all types of BOXCOOL products
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications
| Model | OCE-TCPT11 | OCE-TCPT12 | OCE-TCPT13 | OCE-TCPT14 | OCE-TCPT15 | |
| Sensor element | JIS Pt100Ω Class B 2mA 3-wire type | |||||
| Type | Plate insertion type | Plate surface mounting type | ||||
| Sensing part dimensions | Ø3.2×30mm | Ø3.2×50mm | Ø3.2×60mm | Ø3.2×80mm | Ring terminal for M4 | |
| Structure | Waterproof structure (filled with heat-resistant epoxi) | |||||
| Measurement range | -50 to +100℃ | |||||
| Protection tube material | SUS316 | |||||
| Type of lead wire | Teflon coated cabtyre cable 7/0.16（TA）×3C | |||||
| End processing | Fork terminal for M4 | |||||
| Conformity to standards | Environment | RoHS2 | ||||
| Applicable product models *1 | - | OCE-F15P-D12 OCE-L15P-D12 |
OCE-F40P-D24 OCE-L40P-D24 |
OCE-F80P-D24 OCE-L80P-D24 |
- | |
*1 The models shown here are Plate type only, which has a hole for inserting the sensor. For a Plate type BOXCOOL, use of heat conductive grease is recommended to reduce contact thermal resistance.

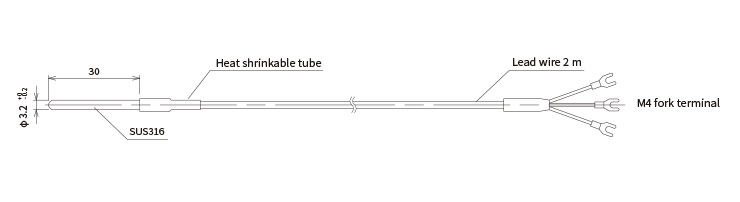

OCE-TCPT11
Dimensional drawing

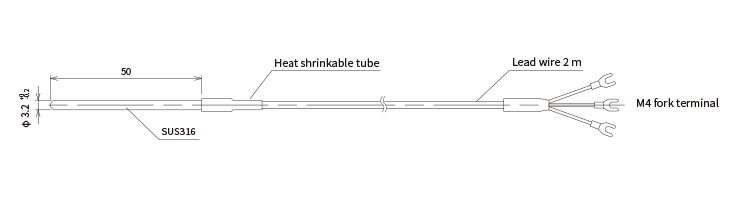

OCE-TCPT12
Dimensional drawing

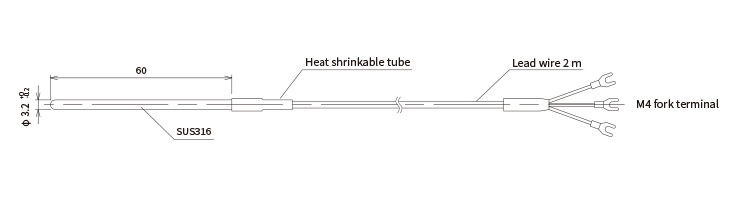

OCE-TCPT13
Dimensional drawing

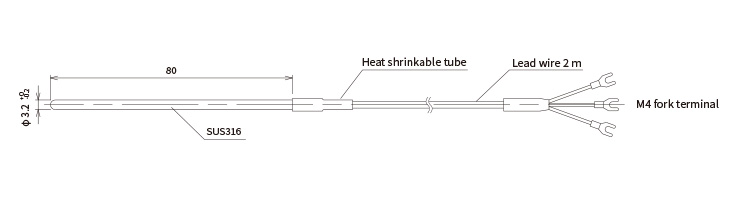

OCE-TCPT14
Dimensional drawing

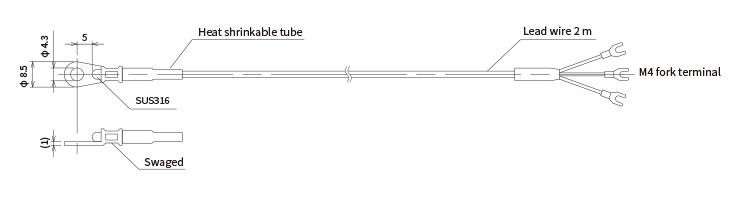

OCE-TCPT15
Dimensional drawing
Cautions
・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Indoor use only.
・Do not bend the sensor part (SUS pipe) is rigid.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
・The site of use should be free from vibration and impact.
・Indoor use only.
・Do not bend the sensor part (SUS pipe) is rigid.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
