Climate control equipment


Water-cooled Fluid Cooling type


Meets variety of fluids by selecting liquid contact part from aluminum and titanium

OCE-LL

Features

Environment of use Cooling method Heat dissipation Type of cooling
Indoor Thermoelectric Water cooling Fluid cooling

Certificates/Approvals

EU RoHS China RoHS CE UL CSA PSE

Cooling cycle

冷却サイクル

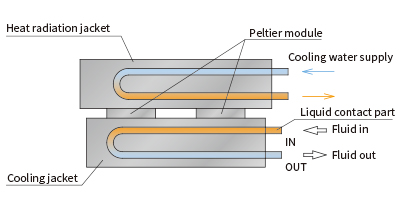

Fluid flown in from the inlet port of the cooling block is cooled by passing through the cooling block and the liquid contact part, which have been cooled by thermoelectric module, and then flows out from the outlet port. The absorbed heat and the generated heat are water-cooled to be dissipated through heat conductive materials like aluminum from the opposite side of the thermoelectric module. (*1)
(*1) The heat absorbed through the heat dissipation fin is exhausted from the fan on heat dissipation side.

Example of use

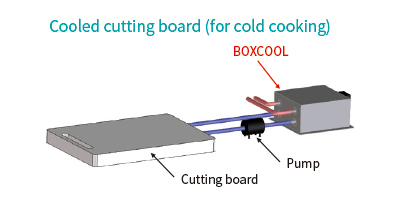

使用例

Model/Specifications

Model OCE-L80LA
-D24
OCE-L80LT
-D24
OCE-L160LA
-D24
OCE-L160LT
-D24
Cooling method Water-cooled fluid cooling
Cooling capacity *1 140W 125W 300W 240W
Heating capacity *2 240W 480W
Rated voltage 24VDC ±5%
Current consumption *3 10.3A or less 20.5A or less
Starting current *4 11.0A 21.5A
Working
temperature
0 to +50℃
Working
humidity
Max. 80%RH, free from condensation
Liquid
temperature
Cooling side *5 Max. +50℃, ice-free
Heat dissipation side 0 to +50℃
Min. flow
rate
Cooling side -
Heat dissipation side *6 2L/min 3L/min
Max. allowable temeprature
for cooling block
+80℃
Max. allowable temeprature
for water-cooled block
+80℃
Overheat protection
on heat dissipation side
Water-cooled block, thermal fuse integrated
Vibration
resistance
Vibration frequency 10-55Hz Total amplitude 0.7mm
Cycle 5min X, Y and Z axis 25min each
Conformity to standards Environment RoHS
Circultion
fluid
Cooling side Purified water, tap water, etc.
Heat dissipation side
Liquid contact
part
Cooling side Aluminum
(SUS304 partially)
Titanium Aluminum
(SUS304 partially)
Titanium
Heat dissipation side Aluminum(SUS304 partially)
Pressure resitance in piping Cooling side 0.5MPa
Heat dissipation side
Outer diameter of pipe connection port Cooling side Ø10.5 Ø10 Ø10.5 Ø10
Heat dissipation side Ø10.5
Dimensions (mm)*7 W180×H79×D182 W320×H79×D182
Weight 3.2kg 5.2kg
*1 Nominal value when ambient temp. and water temp. on heat dissipation side are 30℃ and flow rate is 3 L/min, by applying our capacity measurement method by product type.
*2 Nominal value when ambient temp., water temp. on heat dissipation side and circulation liquid temp. are 30℃.
*3 Rated value when ambient temp. and water temp. on heat dissipation side are 30℃ with cooling operation . (The value varies depending on temperature. See the table below. )
*4 Starting current when ambient temp. and water temp. on heat dissipation side are 30℃. (The value varies depending on temperature. See the table below. )
*5 Pay attention to prevent circulation liquid from freezing.
*6 Performance declines by decrease in flow rate.
*7 Terminal board and projection are excluded.

Correlation between temperature and current value

Ambient temperature 0℃ 30℃ 50℃
OCE-L80LA/LT-D24 Rated current consumption (A) 11.8 10.3 9.3
Starting current (A) 12.4 11.0 10.1
OCE-L160LA/LT-D24 Rated current consumption (A) 23.1 20.5 18.3
Starting current (A) 24.2 21.5 19.3


Product lineup

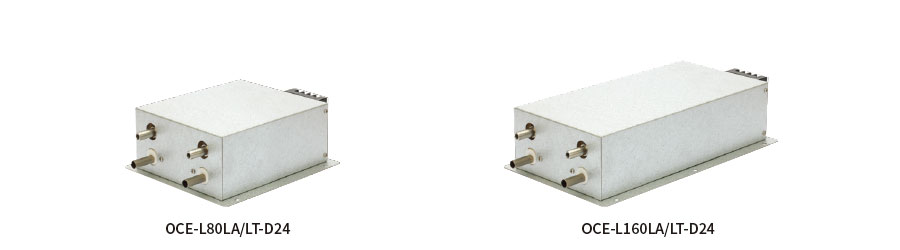

OCE-L80LA/LT-D24

OCE-L80LA/LT-D24

Cooling capacity

L80LA:140W L80LT:125W

A complete set of supply

BOXCOOL : 1 unit Instruction manual : 1 copy

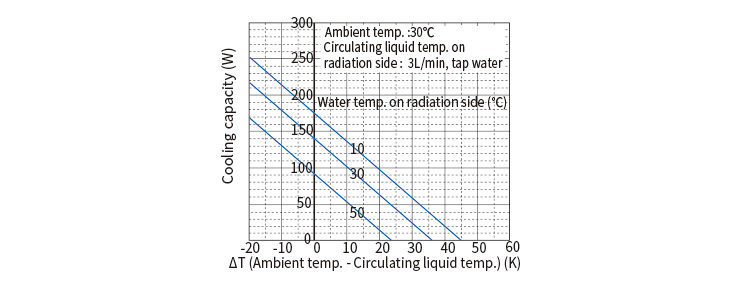

L80LA Performance chart

能力特性図

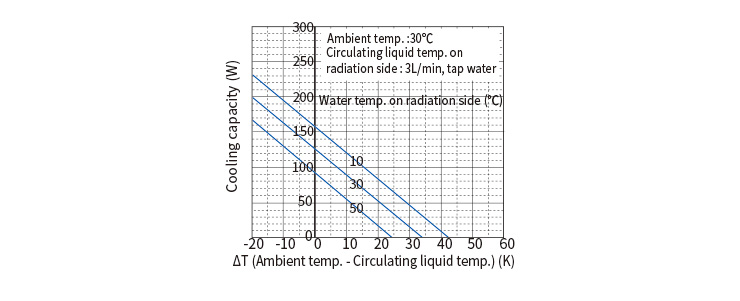

L80LT Performance chart

能力特性図

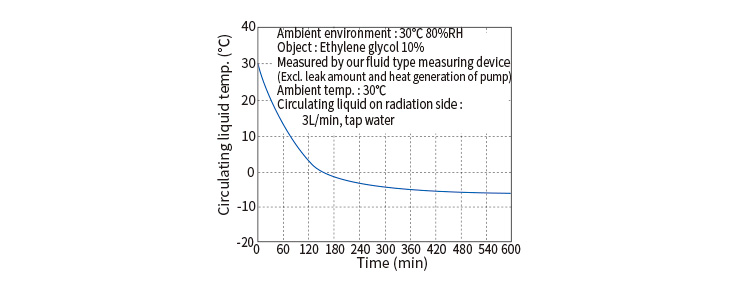

L80LA Achieving temp. characteristic chart

到達温度特性図

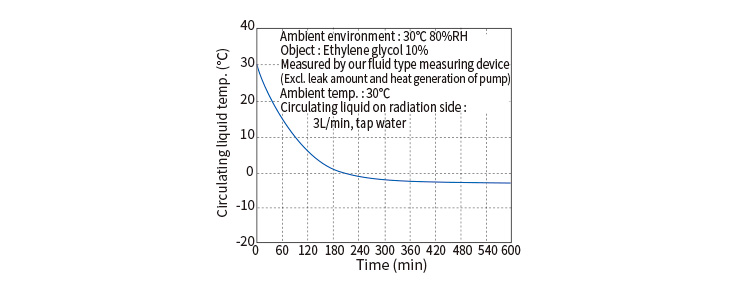

L80LT Achieving temp. characteristic chart

到達温度特性図

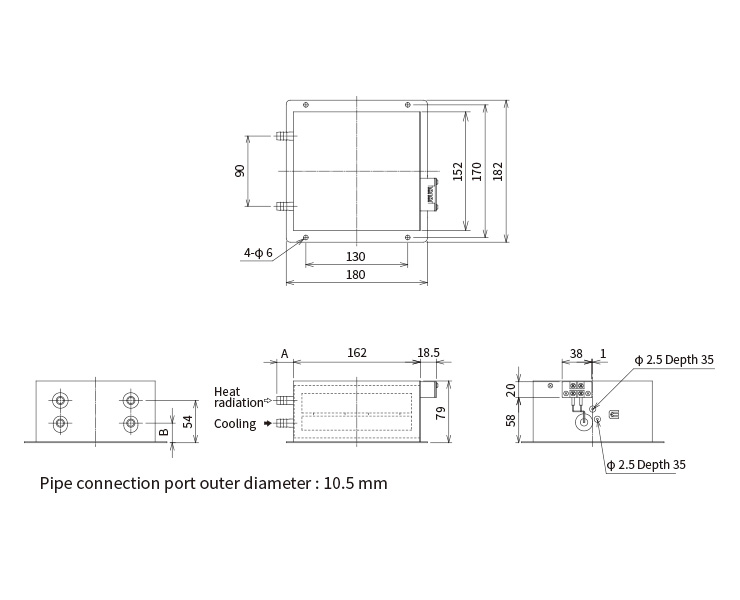

L80LA Dimensional drawing

外形寸法図

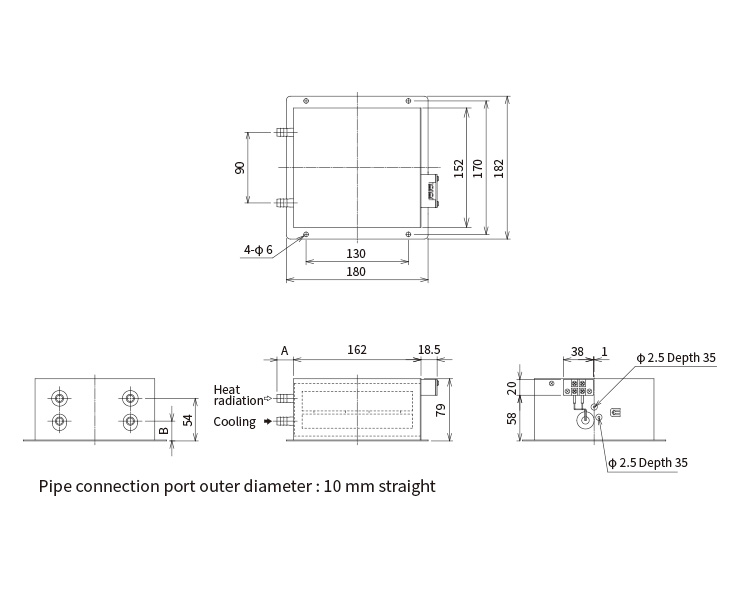

L80LT Dimensional drawing

外形寸法図

OCE-L160LA/LT-D24

OCE-L160LA/LT-D24

Cooling capacity

L160LA:300W L160LT:240W

A complete set of supply

BOXCOOL : 1 unit Instruction manual : 1 copy

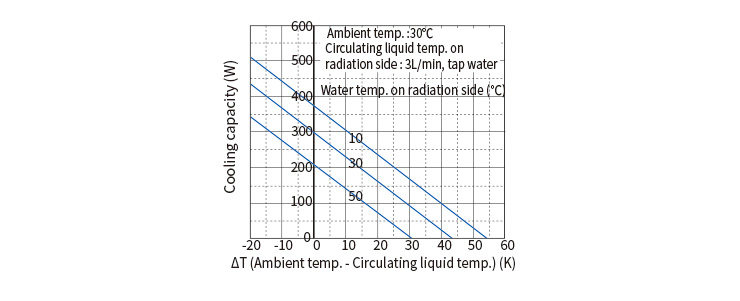

L160LA Performance chart

能力特性図

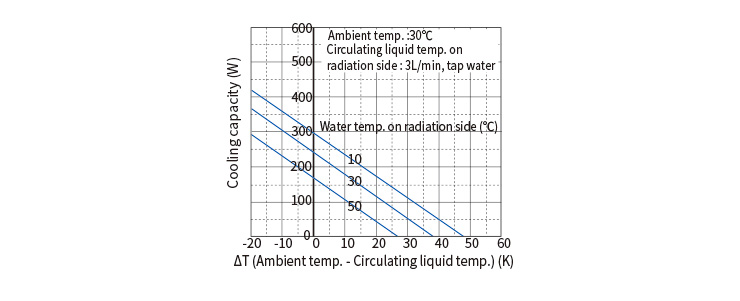

L160LT Performance chart

能力特性図

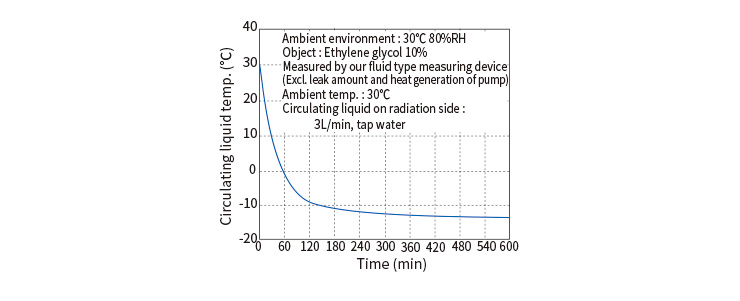

L160LA Achieving temp. characteristic chart

到達温度特性図

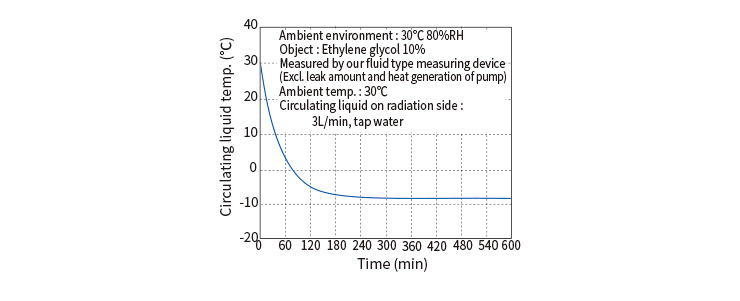

L160LT Achieving temp. characteristic chart

到達温度特性図

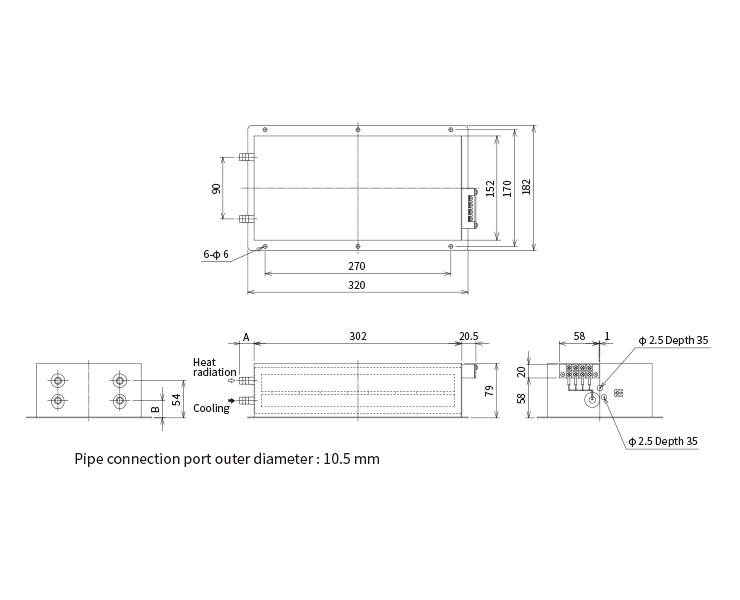

L160LA Dimensional drawing

外形寸法図

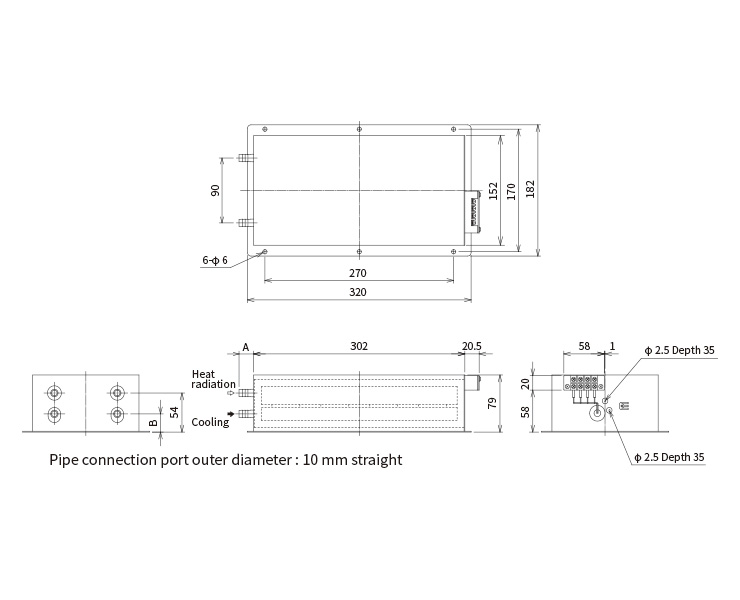

L160LT Dimensional drawing

外形寸法図

System combination

By combination of BOXCOOL and components, various systems having different operation control from continuous operation to precise inversion control can be built.

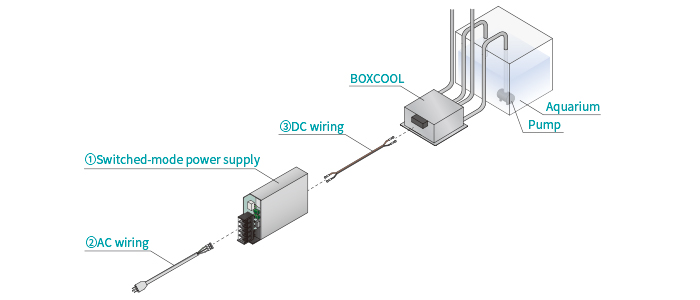

①Continuous cooling

Combines BOXCOOL with a power supply for continuous running

連続冷却

Component name Model
OCE-L80LA-D24
OCE-L80LT-D24
OCE-L160LA-D24
OCE-L160LT-D24
Switched-mode power supply PBA300F-24 PBA600F-24
AC wiring ※1 WH-A-M4-2
DC wiring WH-P-M5-2 WH-P-M5-2 (2 pcs)
*1 For 100VAC power supply

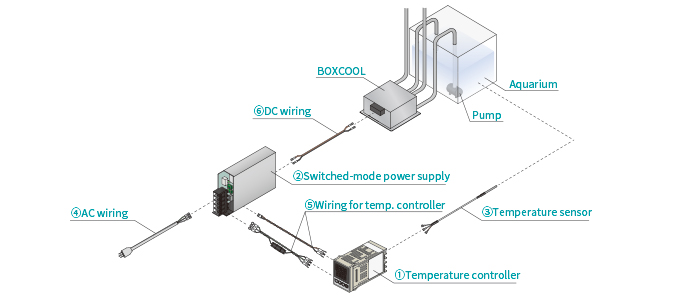

②Simple thermal control system

ON/OFF control is done by a temperature controller using a contact in the power supply.

簡易冷却温調システム

Component name Model
OCE-L80LA-D24
OCE-L80LT-D24
OCE-L160LA-D24
OCE-L160LT-D24
Temperature controller OCE-TC91-8Y1-1C
Switched-mode power supply PBA300F-24 PBA600F-24
Temperature sensor OCE-TCPT**
AC wiring ※1 WH-A-M4-2
Wiring to temperature controller WH-C2
DC wiring WH-P-M5-2 WH-P-M5-2 (2 pcs)
*1 For 100VAC power supply

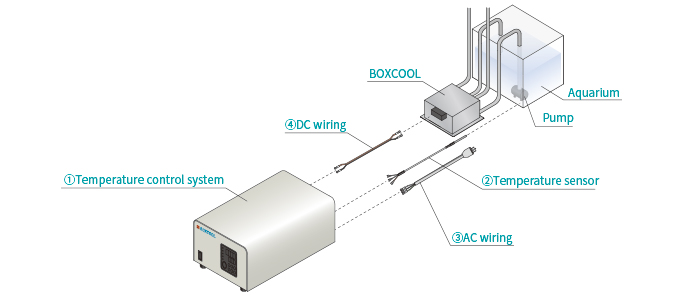

③Precise inversion control system

Highly precise temperature control is achieved by linear voltage controlled switching of cooling and heating using our Temperature Control system designed for BOXCOOL.

精密反転温調システム

Component name Model
OCE-L80LA-D24
OCE-L80LT-D24
OCE-L160LA-D24
OCE-L160LT-D24
Temperature control system OCE-TCR24300WL OCE-TCR24600WL
Temperature sensor OCE-TCPT**
AC wiring *1 WH-A-M4-2
DC wiring WH-P-M4-2 WH-P-M4-2 (2 pcs)
*1 For 100VAC power supply

Cautions

・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Withstand pressure of the fluid block is 0.5MPa.
・Indoor use only.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
