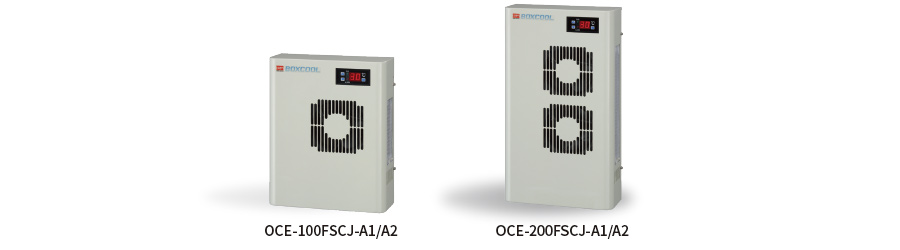

Condensate-free type
Drain evaporator is integrated.
No troublesome work for drain management.
No troublesome work for drain management.
Features
| Environment of use | Cooling method | Type | Function |
| Indoor | Thermoelectric | Condensate-free | Display |
Certificates/Approvals
| EU RoHS2 | EU RoHS | China RoHS | CE | UL | CSA | PSE |
Model/Specification
| Model | OCE-100FSCJ-A1 | OCE-100FSCJ-A2 | OCE-200FSCJ-A1 | OCE-200FSCJ-A2 | |
| Type of mounting | Lateral mounting | ||||
| Cooling method | Fan-cooled Cool Air Agitation | ||||
| Drain evaporation method | Evaporation at low temperature by heater | ||||
| Cooling capacity*1 | 90/100W | 180/200W | |||
| Evaporation capacity*2 | 50ml/h（at the temperature+30℃ and 80％RH humidity） | ||||
| Rated voltage（50/60Hz） | Single phase 100VAC | Single phase 200VAC | Single phase 100VAC | Single phase 200VAC | |
| Current consumption*3 | Rated | 2.8/2.7A | 1.4/1.3A | 4.6/4.5A | 2.3/2.2A |
| Max. | 3.0/2.9A | 1.5/1.4A | 4.9/4.8A | 2.6/2.4A | |
| Starting current | 8.5A | 4.5A | 13.0A | 9.0A | |
| Power consumption*3 | Rated | 280/270W | 280/270W | 450/440W | 450/440W |
| Max. | 300/290W | 300/290W | 495/485W | 495/485W | |
| Working temperature | 0 to＋50℃ | ||||
| Working humidity | 80％RH or less, free from condensation | ||||
| Noise | 52dB(A) | 56dB(A) | |||
| Display | Innter temperature/Alarm code/Operation lamp/Alarm lamp | ||||
| Temperature setting range | +10 to +50℃（Initial setting +30℃） | ||||
| Functions | Off-temperature alarm, Maintenance reminder, Detection of fan shutdown on cooling side, Detection of temperature sensor disconnection, Detection of abnormal temperature at power supply, Overheat protection for evaporation unit：Thermal fuse (fusing at 75℃,replacing), Detection of tank over flow |
||||
| External output | 240V 1.5A | ||||
| Applicable standard | Environment | RoHS2 | RoHS | RoHS2 | |
| Operating method | ON/OFF control DIF：3℃ | ||||
| Operation control for evaporation | Thermostat-controlled ON/OFF | ||||
| Color | Beige (10GY9/1 equivalent) | ||||
| Dimensions（mm）*4 | W265×H335×D177 | W265×H475×D177 | |||
| Weight | 7.5kg | 11.0kg | |||
*1 Nominal cooling capacity with +30℃ in working temperature.
*2 The value shows the performance under the given conditions and may be lessened depending on the environment of usage.
*3 Nominal values at 30℃ temperature both inside and outside are indicated in "Rated" and nominal values at 10℃ inside and 30℃ outside temperatures are indicated in "Max". These values are based on condition that both of cooling and dehumidifying operations are executed.
*4 Projections are excluded.
*2 The value shows the performance under the given conditions and may be lessened depending on the environment of usage.
*3 Nominal values at 30℃ temperature both inside and outside are indicated in "Rated" and nominal values at 10℃ inside and 30℃ outside temperatures are indicated in "Max". These values are based on condition that both of cooling and dehumidifying operations are executed.
*4 Projections are excluded.
- Supply voltage should be within the fluctuation range of 10% from the rated voltage.
Contents of page
OCE-100FSCJ-A1/A2
Cooling capacity
90/100W
A complete set of supply
BOXCOOL : 1 unit Fixing bolt : 4 pcs. SP washer : 4 pcs. Plain washer : 4 pcs.
Nut : 4 pcs. Terminal board : 1 pc. Instruction manual : 1 copy
* Drain hose is not included.
Nut : 4 pcs. Terminal board : 1 pc. Instruction manual : 1 copy
* Drain hose is not included.
Maintenance parts
| Suction port filter | Evaporator suction port filter |
| BCF-S1 (2 pcs/set) | BCF-S3 (1 pc.) |

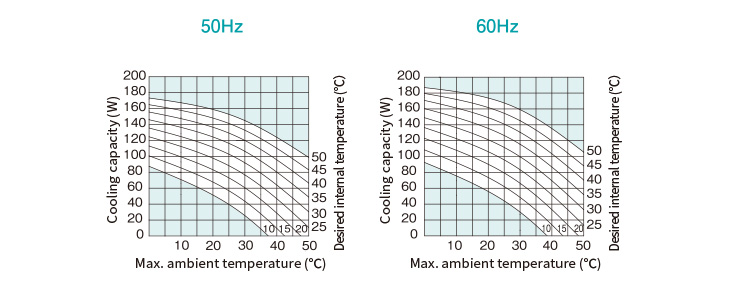

Performance chart

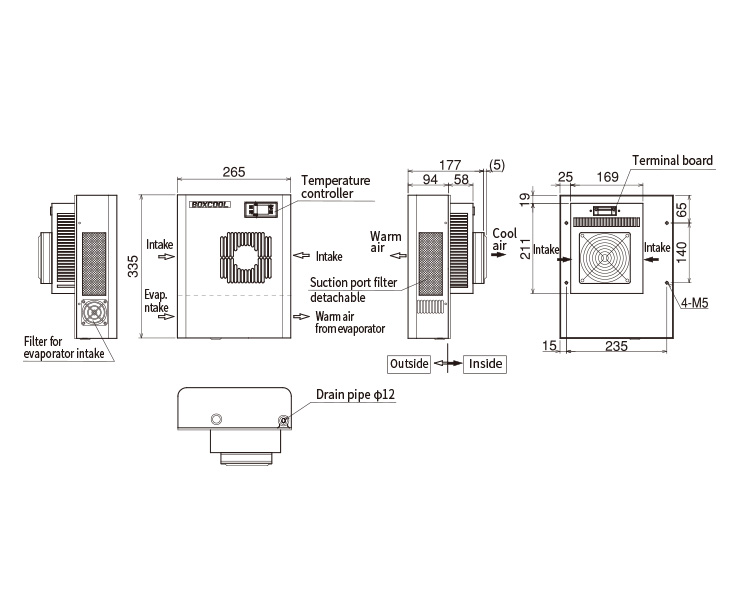

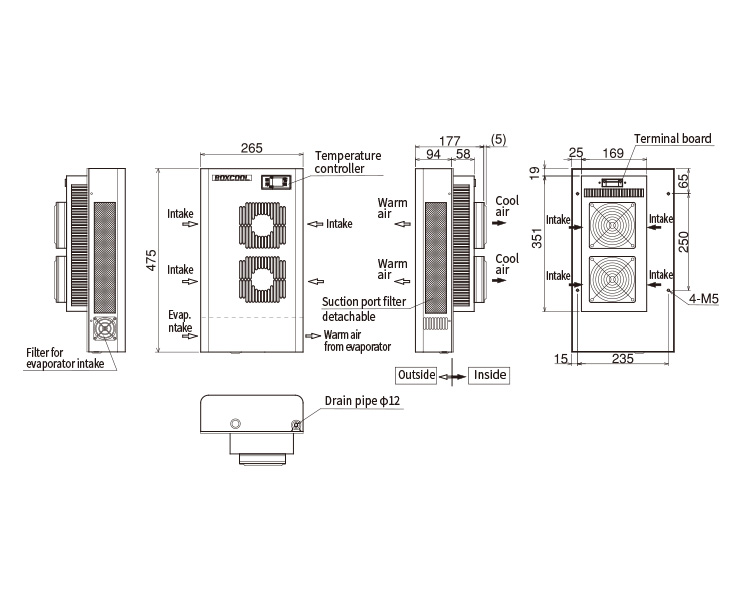

Dimensional drawing

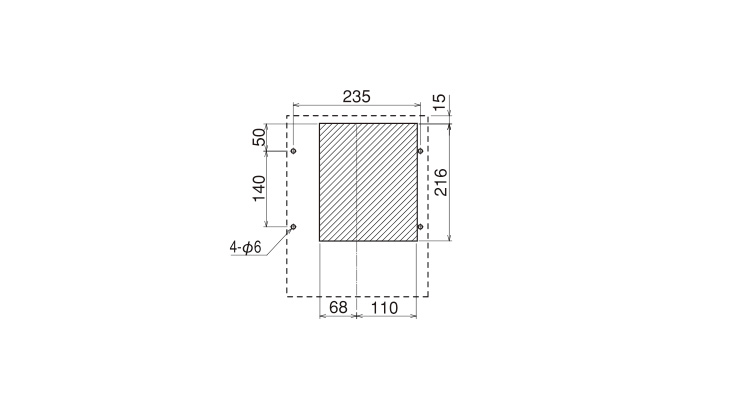

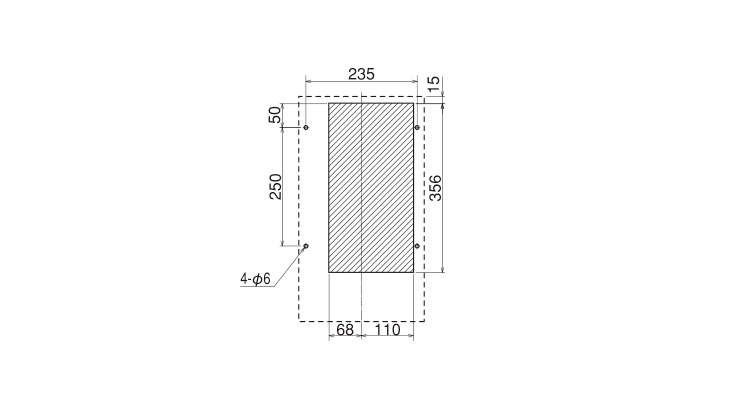

Mounting cutout

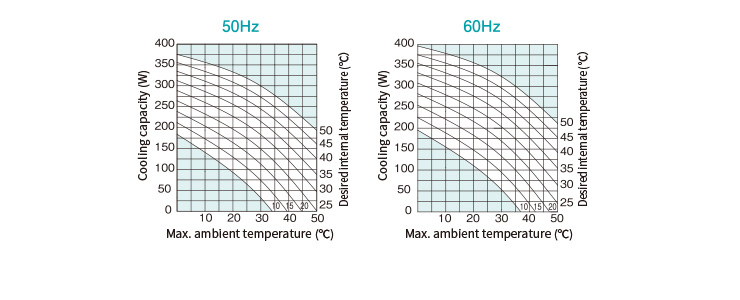

Cooling capacity
180/200W
A complete set of supply
BOXCOOL : 1 unit Fixing bolt : 4 pcs. SP washer : 4 pcs. Plain washer : 4 pcs.
Nut : 4 pcs. Terminal board : 1 pc. Instruction manual : 1 copy
* Drain hose is not included.
Nut : 4 pcs. Terminal board : 1 pc. Instruction manual : 1 copy
* Drain hose is not included.
Maintenance parts
| Suction port filter | Evaporator suction port filter |
| BCF-S2 (2 pcs/set) | BCF-S3 (1 pc.) |
Cautions
・Do not use this product in a place where flammable or corrosive gasses, or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Install this product perpendicularly within a tolerance of 1 degree.
・This product cannot be used so as to invert cooling and heating operations.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
・This product is for indoor use only. For outdoor use, please see BOXCOOL outdoor types OCE-100BEC-AW and OCE-200BEC-AW.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Install this product perpendicularly within a tolerance of 1 degree.
・This product cannot be used so as to invert cooling and heating operations.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
・This product is for indoor use only. For outdoor use, please see BOXCOOL outdoor types OCE-100BEC-AW and OCE-200BEC-AW.
