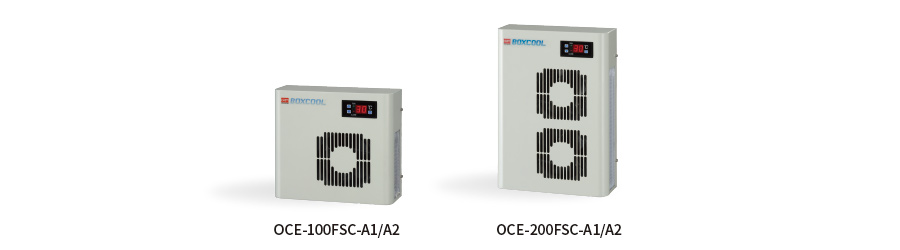

Standard type
Features
| Environment | Cooling method | Functions |
| Indoor | Peltier | Display |
Certificates/Approvals
| EU RoHS2 | EU RoHS | China RoHS | CE | UL | CSA | PSE |
Model/Specification
| Model | OCE-100FSC-A1 | OCE-100FSC-A2 | OCE-200FSC-A1 | OCE-200FSC-A2 | |
| Type of mounting | Lateral mounting | ||||
| Cooling method | Fan-cooled air agitation | ||||
| Cooling capacity*1 | 90/100W | 180/200W | |||
| Rated voltage（50/60Hz） | Single phase 100VAC | Single phase 200VAC | Single phase 100VAC | Single phase 200VAC | |
| Current consupmtion*2 | Rated | 2.1/2.0A | 1.1/1.0A | 3.9/3.8A | 2.0/1.9A |
| Max. | 2.3/2.2A | 1.2/1.1A | 4.3/4.2A | 2.2/2.1A | |
| Starting current | 7.5A | 4.0A | 11.5A | 8.0A | |
| Power consumption*2 | Rated | 210/200W | 210/200W | 390/380W | 390/380W |
| Max. | 230/220W | 230/220W | 435/425W | 435/425W | |
| Working temperature | 0 to ＋50℃ | ||||
| Working humidity | Not exceeding 80％RH,free from condensation | ||||
| Noise | 52dB(A) | 56dB(A) | |||
| Display | Innter temperature/Alarm code/Operation lamp/Alarm lamp | ||||
| Temperature setting range | +10 to +50℃（Initial setting +30℃） | ||||
| Function | Off-temperature alarm,Maintenance reminder,Detection of fan shutdown on cooling side,Detection of temperature sensor disconnection,Detection of abnormal temperature at power supply | ||||
| External output | 240V 1.5A | ||||
| Environmental standard | RoHS2 | RoHS | RoHS2 | ||
| Operating method | ON/OFF control DIF：3℃ | ||||
| Drainage water*3 | Max.15ml/h | Max.30ml/h | |||
| Color | Beige（10GY9/1 corresponding） | ||||
| Dimensions（mm）*4 | W265×H241×D177 | W265×H381×D177 | |||
| Weight | 6.0kg | 9.8kg | |||
*1 Nominal cooling capacity with +30℃ in working temperature.
*2 Nominal values at 30℃ temperature when both inside and outside are indicated in "Rated" and nominal values at 10℃ outside and 30℃ inside temperatures are indicated in "Max".
*3 Maximum amount of condensation water discharged when ambient temperature is 50℃ and humidity is 80％RH.
*4 Projections are excluded.
*2 Nominal values at 30℃ temperature when both inside and outside are indicated in "Rated" and nominal values at 10℃ outside and 30℃ inside temperatures are indicated in "Max".
*3 Maximum amount of condensation water discharged when ambient temperature is 50℃ and humidity is 80％RH.
*4 Projections are excluded.
- Supply voltage should be within the fluctuation range of 10% from the rated voltage.
Contents of page
OCE-100FSC-A1/A2
Cooling capacity
90/100W
A complete set of supply
●BOXCOOL：1 pc ●Fixing bolt：4 pcs ●Spring washer：4 pcs ●Plain washer:4 pcs
●Nut：4 pcs ●Drain hose：1 pc（2m） ●Terminal board：1 pc ●Instruction manual：1 copy
●Nut：4 pcs ●Drain hose：1 pc（2m） ●Terminal board：1 pc ●Instruction manual：1 copy
Consumable parts
| Filter at suction port |
| BCF-S1（2pcs/set） |

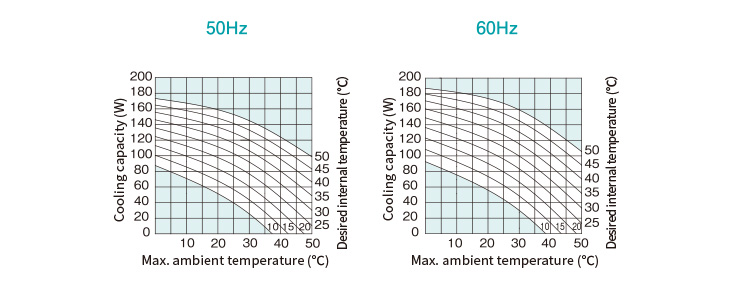

Performance diagram

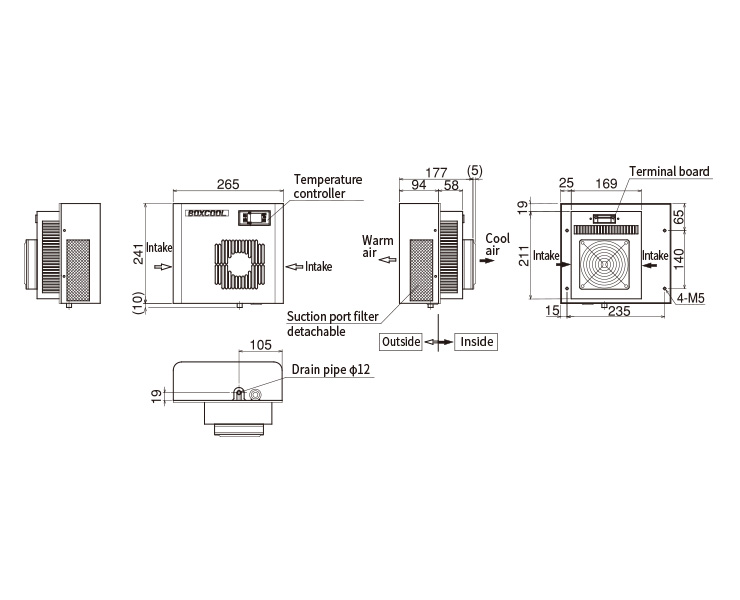

Dimensional drawing

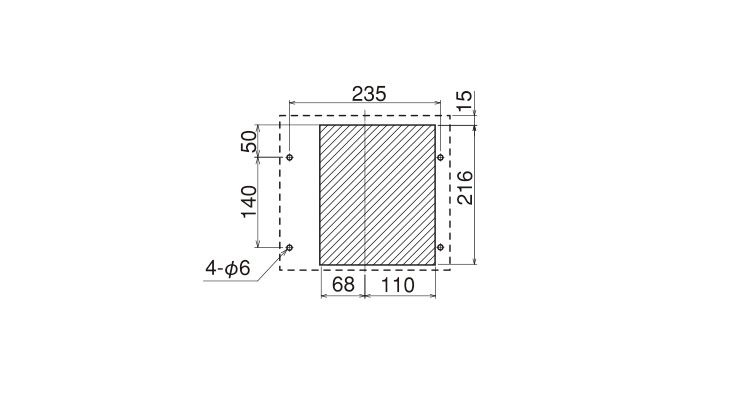

Mounting cutout
Cooling capacity
180/200W
A complete set of supply
●BOXCOOL：1 pc ●Fixing bolt：4 pcs ●Spring washer：4 pcs ●Plain washer:4 pcs
●Nut：4 pcs ●Drain hose：1 pc（2m） ●Terminal board：1 pc ●Instruction manual：1 copy
●Nut：4 pcs ●Drain hose：1 pc（2m） ●Terminal board：1 pc ●Instruction manual：1 copy
Cousumable parts
| Filter at suction port |
| BCF-S2（2pcs/set） |

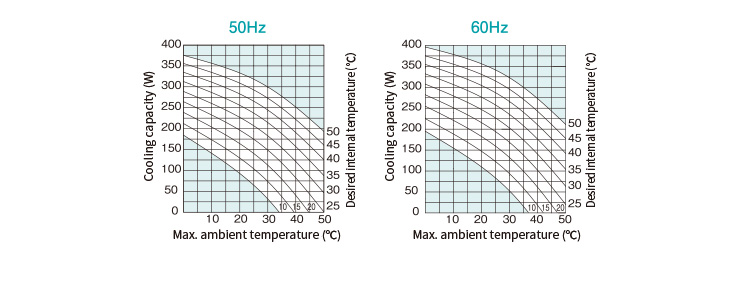

Performance diagram

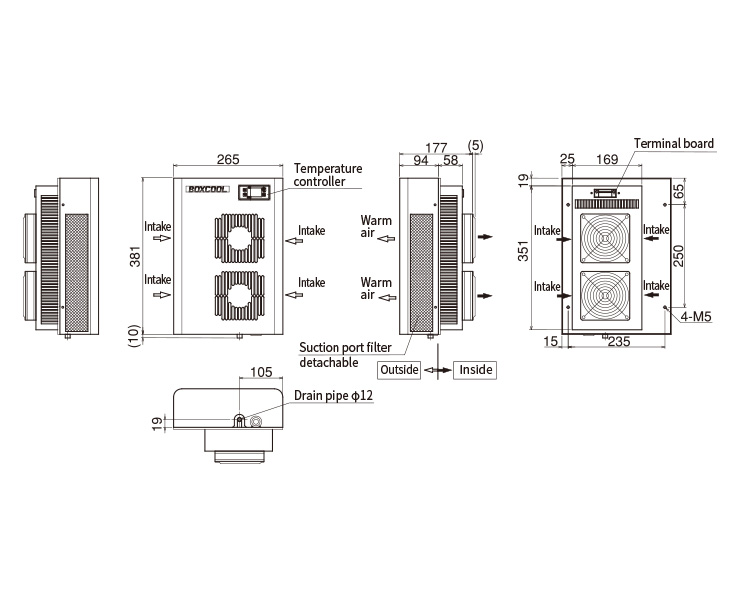

Dimensional drawing

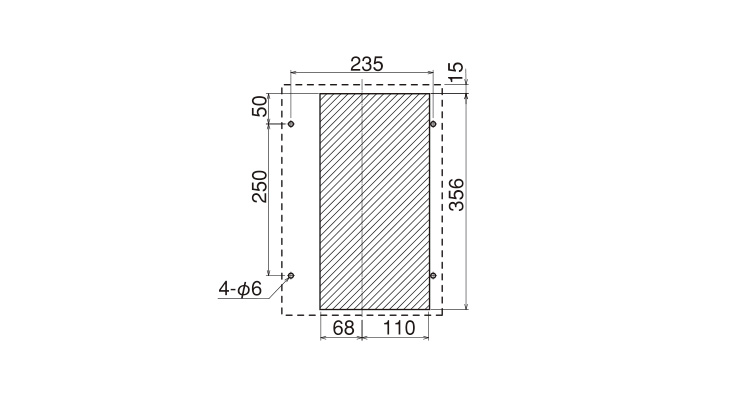

Mounting cutout
Drain evaporator
Free from troublesome drain treatment and no more drain worrying about drainage problem.
